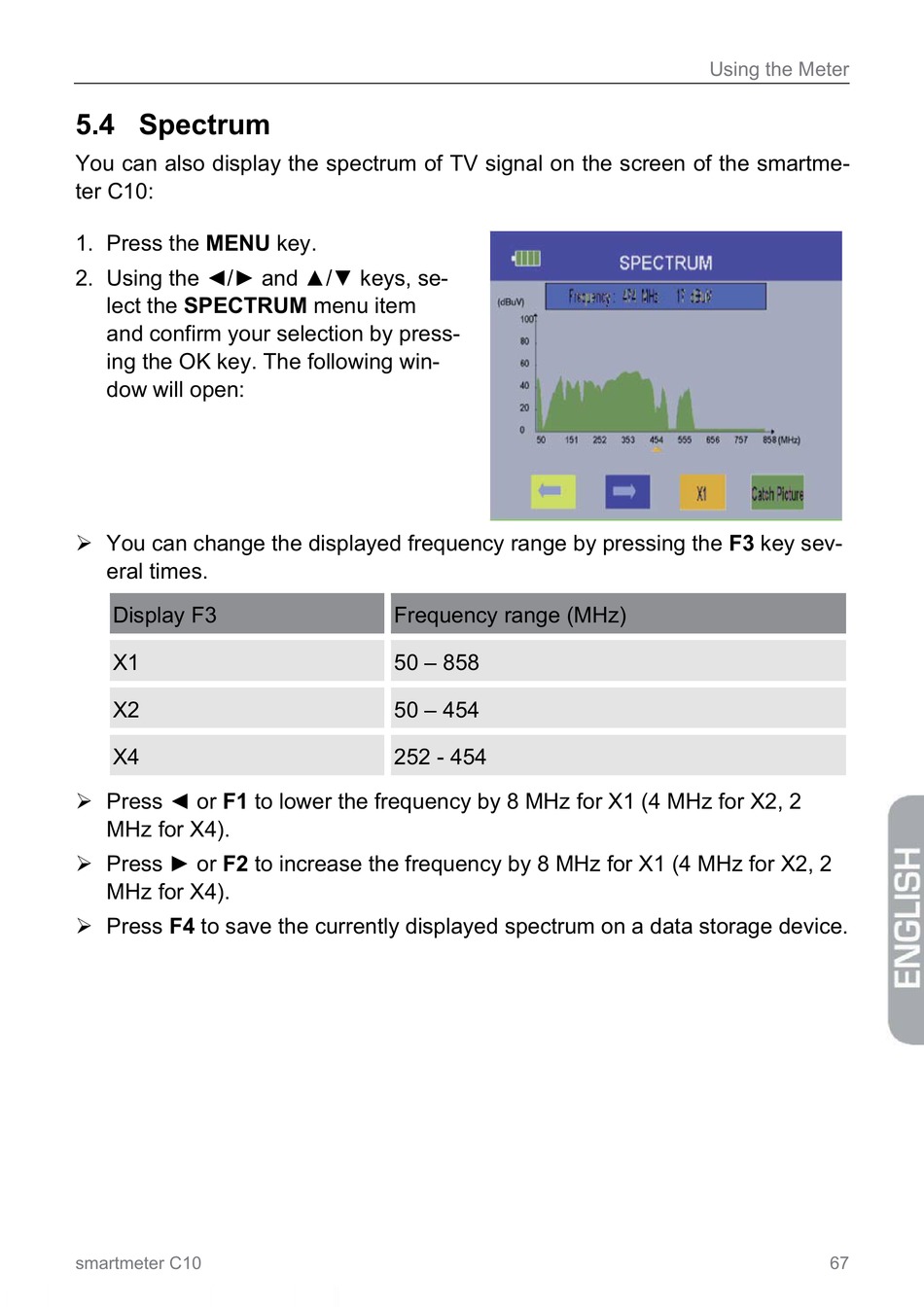

5.4 Spectrum

You can also display the spectrum of TV signal on the screen of the smartme-
ter C10:
1. Press the MENU key.
2. Using the /
lect the SPECTRUM menu item
and confirm your selection by press-
ing the OK key. The following win-
dow will open:
¾ You can change the displayed frequency range by pressing the F3 key sev-
eral times.
Display F3
X1
X2
X4
¾ Press
or F1 to lower the frequency by 8 MHz for X1 (4 MHz for X2, 2
MHz for X4).
¾ Press
or F2 to increase the frequency by 8 MHz for X1 (4 MHz for X2, 2
MHz for X4).
¾ Press F4 to save the currently displayed spectrum on a data storage device.
smartmeter C10
and / keys, se-
Frequency range (MHz)
50 – 858
50 – 454
252 - 454
