Using the Meter
)
¾ After editing the channel list, save the edited list to the USB data storage
device.

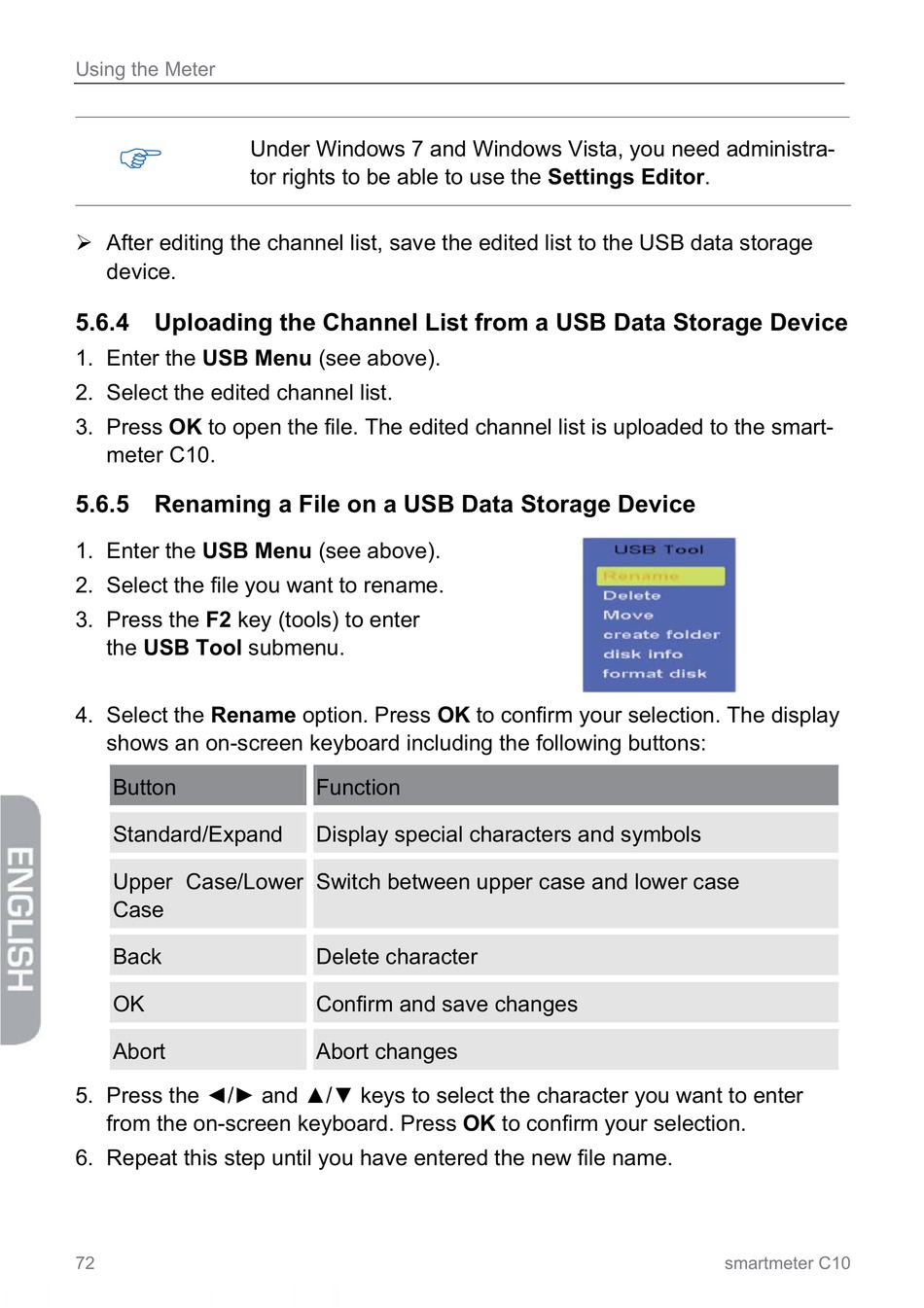

5.6.4 Uploading the Channel List from a USB Data Storage Device

1. Enter the USB Menu (see above).
2. Select the edited channel list.
3. Press OK to open the file. The edited channel list is uploaded to the smart-
meter C10.
5.6.5

Renaming a File on a USB Data Storage Device

1. Enter the USB Menu (see above).
2. Select the file you want to rename.
3. Press the F2 key (tools) to enter
the USB Tool submenu.
4. Select the Rename option. Press OK to confirm your selection. The display
shows an on-screen keyboard including the following buttons:
Button
Standard/Expand
Upper Case/Lower
Case
Back
OK
Abort
5. Press the /
from the on-screen keyboard. Press OK to confirm your selection.
6. Repeat this step until you have entered the new file name.
72
Under Windows 7 and Windows Vista, you need administra-
tor rights to be able to use the Settings Editor.
Function
Display special characters and symbols
Switch between upper case and lower case
Delete character
Confirm and save changes
Abort changes
and / keys to select the character you want to enter
smartmeter C10
