Using the Meter
Display
Q
Using the functional keys F2...F4, different search functions can be carried out
(see chapter 5.1, page 61):
x F2: All TP
x F3: Manual search
x F4: Network search
)
¾ Press the FIND key instead of using the menu to go directly

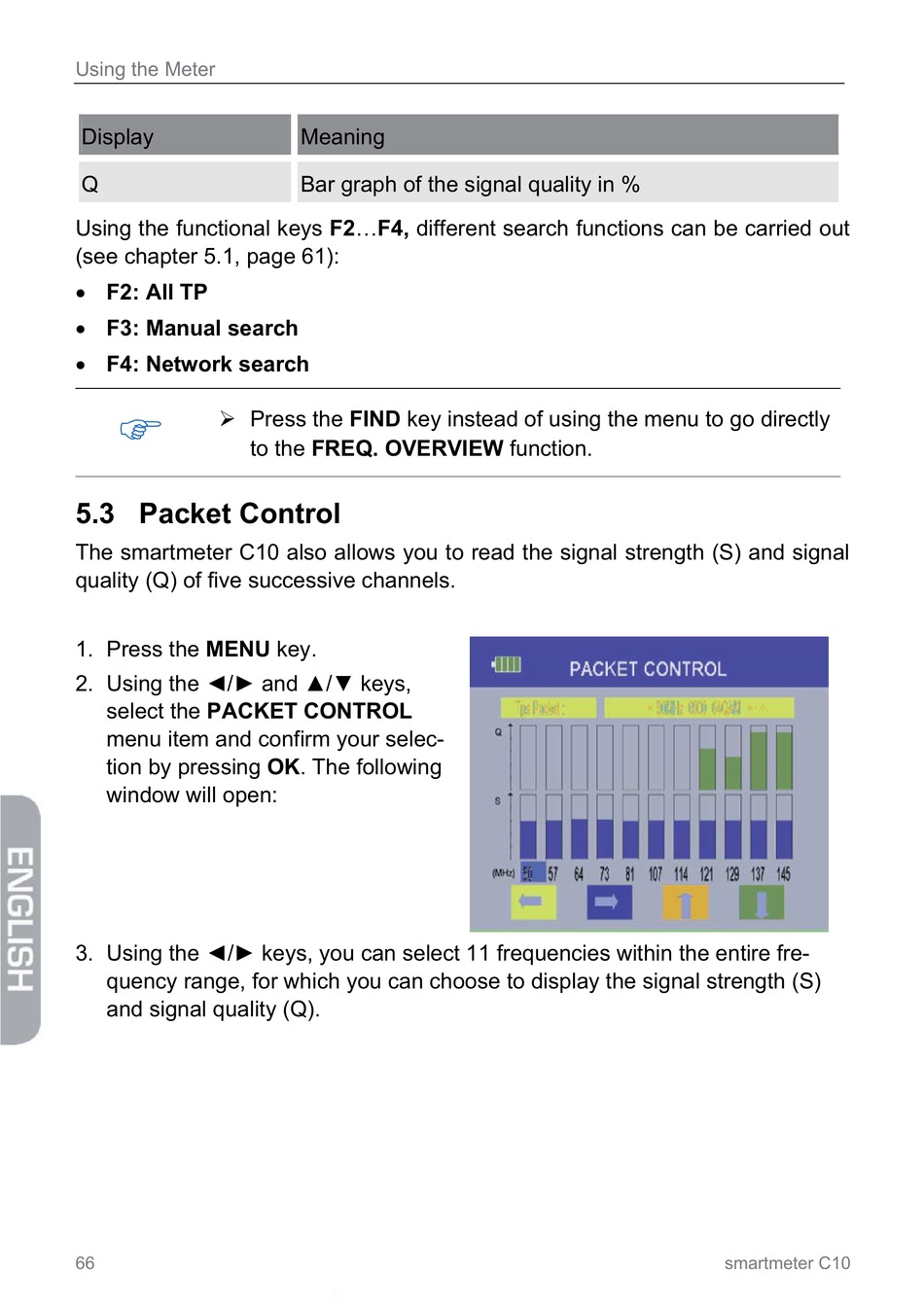

5.3 Packet Control

The smartmeter C10 also allows you to read the signal strength (S) and signal
quality (Q) of five successive channels.
1. Press the MENU key.
2. Using the /
select the PACKET CONTROL
menu item and confirm your selec-
tion by pressing OK. The following
window will open:
3. Using the /
quency range, for which you can choose to display the signal strength (S)
and signal quality (Q).
66
Meaning
Bar graph of the signal quality in %
to the FREQ. OVERVIEW function.
and / keys,
keys, you can select 11 frequencies within the entire fre-
smartmeter C10
