5. Commissioning and operation
8. In the STEPS submenu, define the step sequence in % with the [▲] or [▼] and
[◀] or [▶] buttons.
9. Confirm with [SELECT].
10. With the [MENU] button, you can exit the submenu.
EN
Usage
The instrument will revert to VENT
mode on exiting the menu, meaning
the sensor of the instrument will be
vented. In the top centre of the display,
the set point of the pressure range will
be displayed. In the bottom centre of
the display, the percentage value can
be read. On exiting the menu, this value
will be 0 %.
With the [SELECT] button, one can
■
switch between the target pressure
specification and the percentage value.
The percentage value can be changed with the [▲] or [▼] buttons (in the defined
■
step sizes) and with the [◀] or [▶] buttons.
The target pressure specification can only be changed with the [▲] or [▼] buttons.
■
With the [◀] or [▶] buttons, you can jump to the location of the target pressure
specification.
As soon as the instrument display indicates a stable value, the data can be recorded:
CTRL
6
+04.999
5
20
1
+10.000 mbar
+ 50% +5.000
4

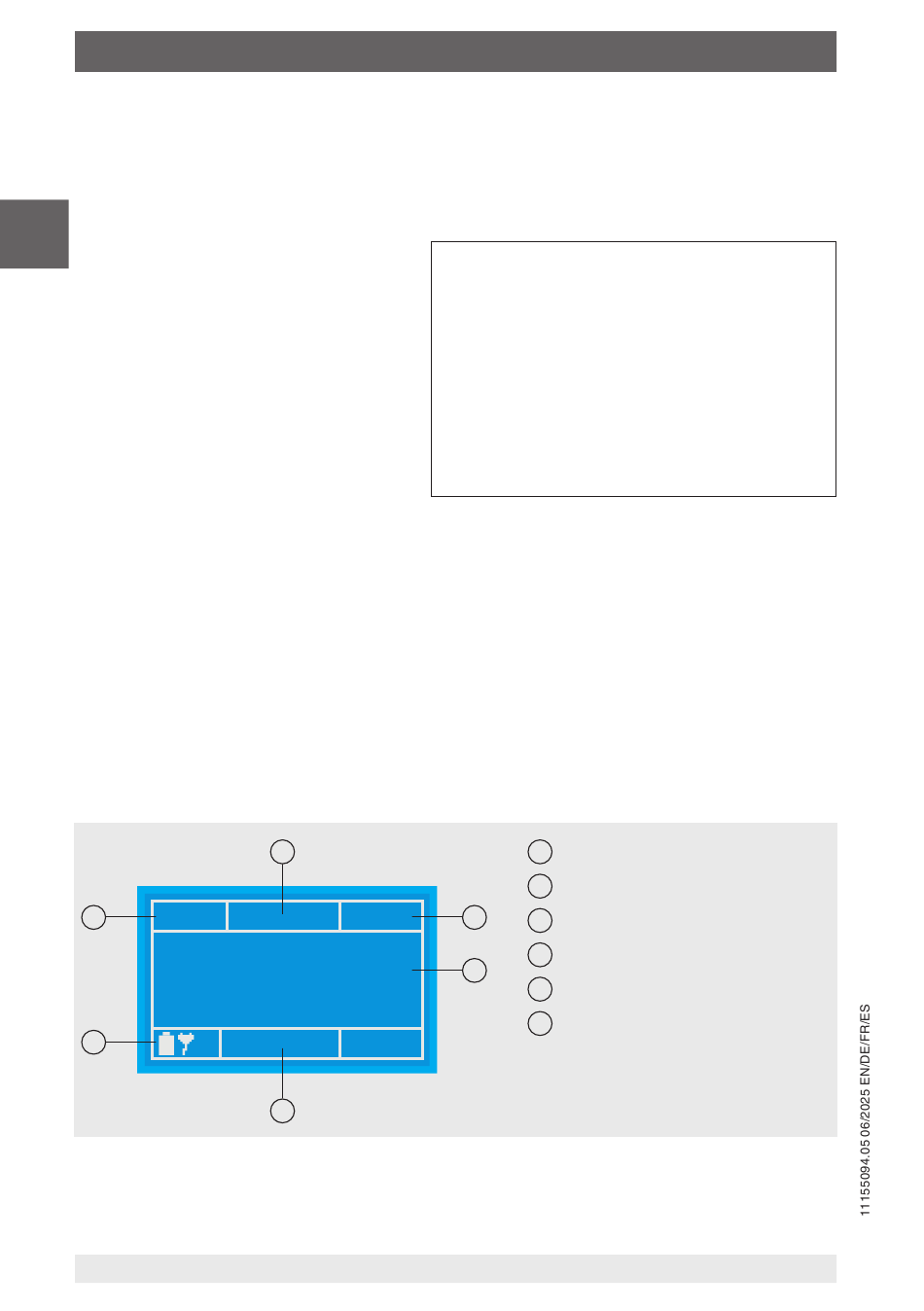

Change set point to x %:
Change pressure in % using the [▲] or [▼]
buttons
Change pressure to 100 % using the [▶]
button
Change pressure back to 0 % using the [◀]
button
End value
1
Pressure unit
2
2 Measured value
3
Set point in % of full scale
4
3
Battery status
5
Operating mode
6
