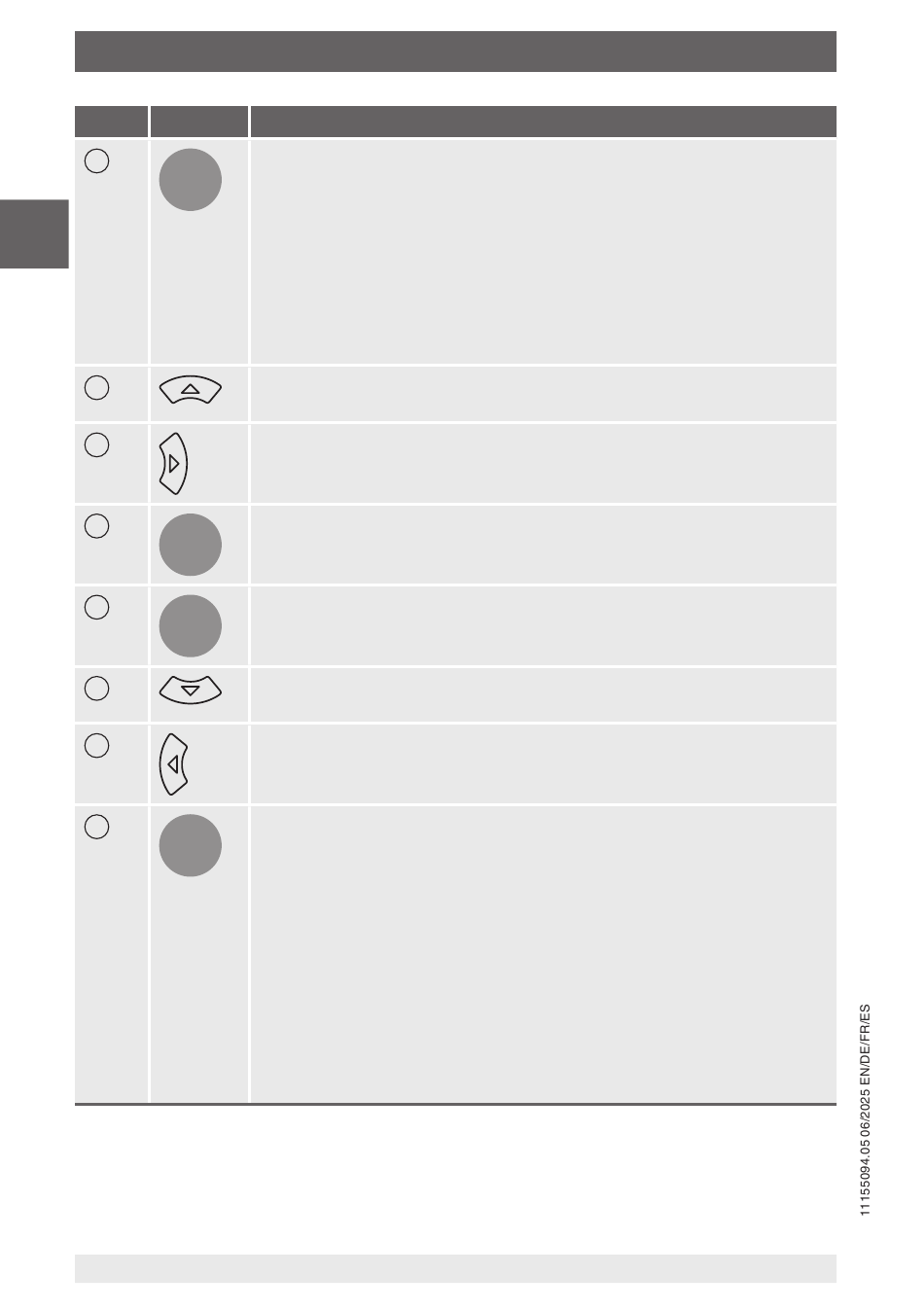

4. Design and function
Pos. Button
2
MENU
EN
3
4
5
I / 0
6
SELECT
7
8
9
ZERO
16
Meaning
MENU button
With this button the SETUP menu can be accessed, and there
the settings for each operating mode can be made. When using
the CTRL mode, you will find that the instrument is left in VENT
mode on leaving the SETUP menu.
The SETUP menu items are made up of six submenu items. For
a detailed description of these items, see chapter 5.8 "SETUP
settings (SETUP)".
Increase set point
Change pressure in % using the [▲] button
Increase set point to 100 %
Change pressure to 100 % using the [▶] button
ON/OFF button
Button to turn the instrument on and off
SELECT button
[SELECT] button to confirm the preceding entry
Decrease set point
Change pressure in % using the [▼] button
Decrease set point to 0 %
Change pressure back to 0 % using the [◀] button
ZERO button
[ZERO] button for manual zero point correction of the integrated
sensor.
External influences such as temperature, position or ambient
pressure may cause the zero point of the instrument, i.e. the
display with open pressure inlets, to change. During the zero
point correction, the instrument automatically determines these
changes and calculates them into the current pressure display.
The zero point correction requires a switching of the internal
valves, which is not possible without pressure loss.
If this should interfere with the application, the automatic zero
point correction can be switched off.
