Transport
A

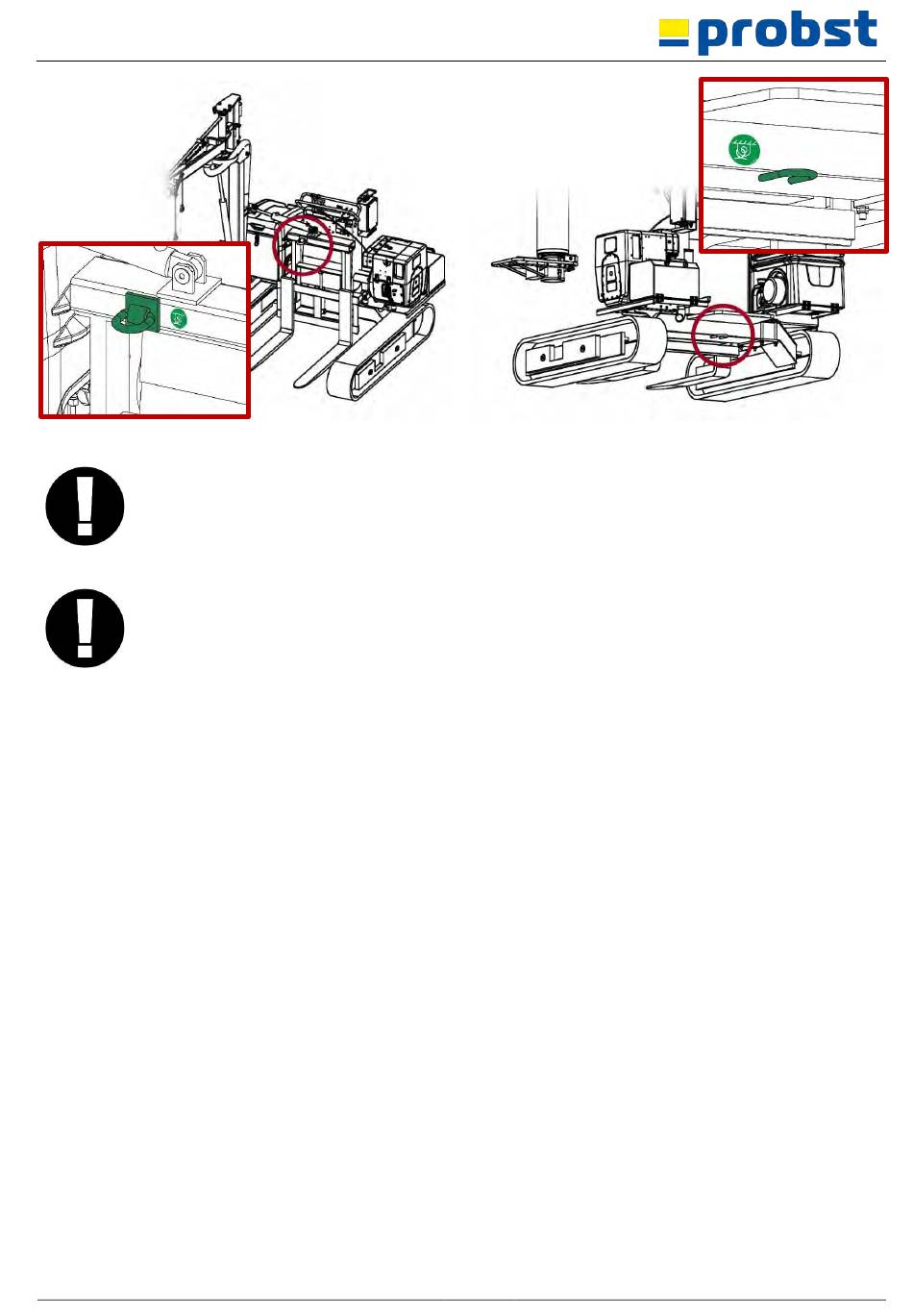

To load the unit onto a car trailer or a flatbed, connect the unit to the carrier (e.g. excavator) via the
suspension eye (A) (see Fig. 5).
Before transporting the device on a car trailer or a flatbed, it must always be adequately secured
against slipping away and tipping over!
To secure the device to the car trailer or the flatbed, use the two lifting eyes (A + B, see Fig. 5+6) on
the device.
Furthermore, it is recommended to secure the unit with a tension belt across the two tracks on the
loading area.
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
Fig. 5
35 / 40
B
Fig. 6
