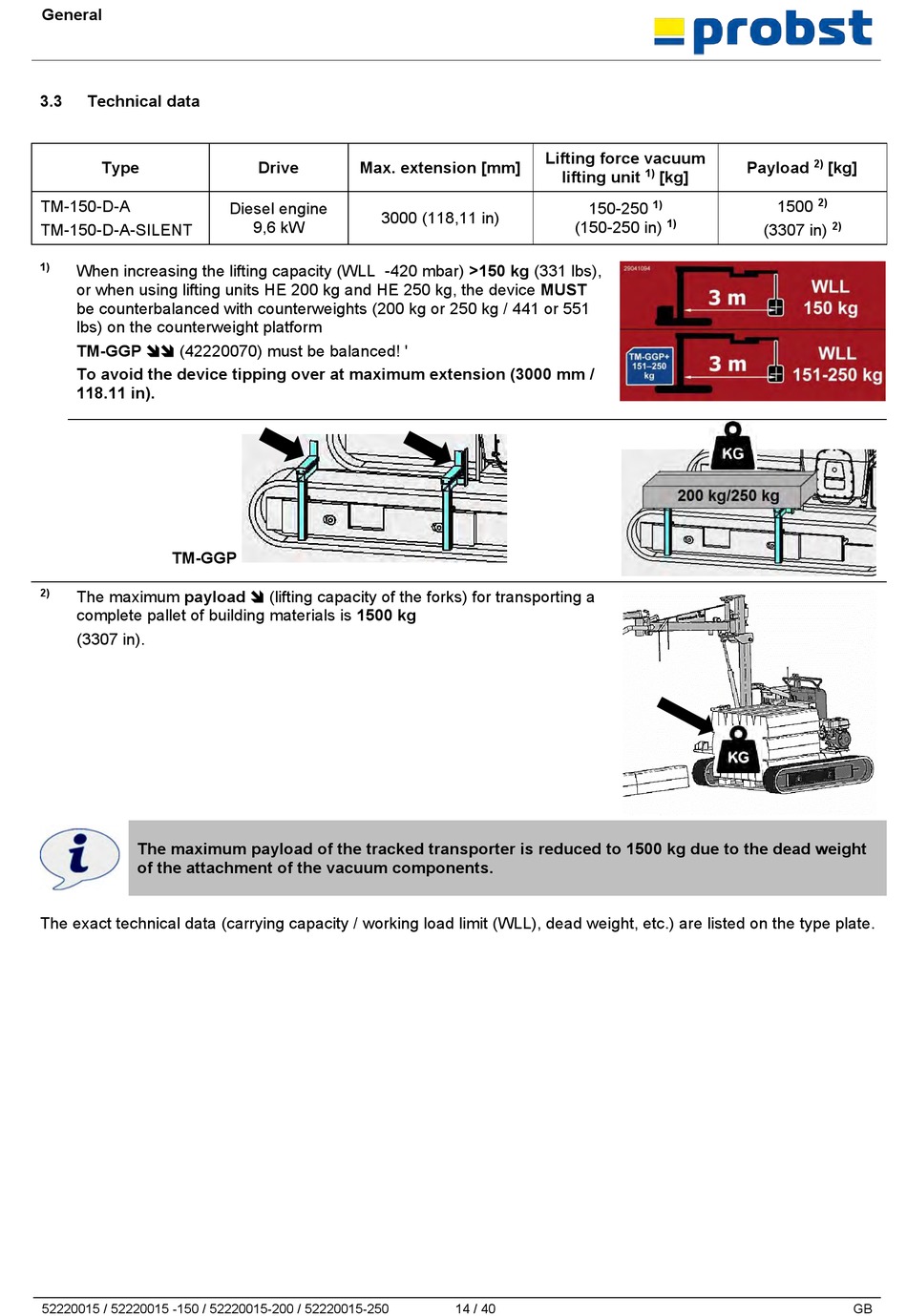

probst TM-D-A Betriebsanleitung Seite 15

General
3.3 Technical data
Type
TM-150-D-A
TM-150-D-A-SILENT
When increasing the lifting capacity (WLL -420 mbar) >150 kg (331 lbs),
1)
or when using lifting units HE 200 kg and HE 250 kg, the device MUST
be counterbalanced with counterweights (200 kg or 250 kg / 441 or 551
lbs) on the counterweight platform
TM-GGP  (42220070) must be balanced! '
To avoid the device tipping over at maximum extension (3000 mm /
118.11 in).
TM-GGP
2) The maximum payload  (lifting capacity of the forks) for transporting a
complete pallet of building materials is 1500 kg
(3307 in).
The maximum payload of the tracked transporter is reduced to 1500 kg due to the dead weight
of the attachment of the vacuum components.
The exact technical data (carrying capacity / working load limit (WLL), dead weight, etc.) are listed on the type plate.
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
Drive Max. extension [mm]
Diesel engine
3000 (118,11 in)
9,6 kW
Lifting force vacuum
lifting unit
150-250
(150-250 in)
14 / 40
Payload 2)
1) [kg]
1500
1)
1)
(3307 in)
[kg]
2)
2)
