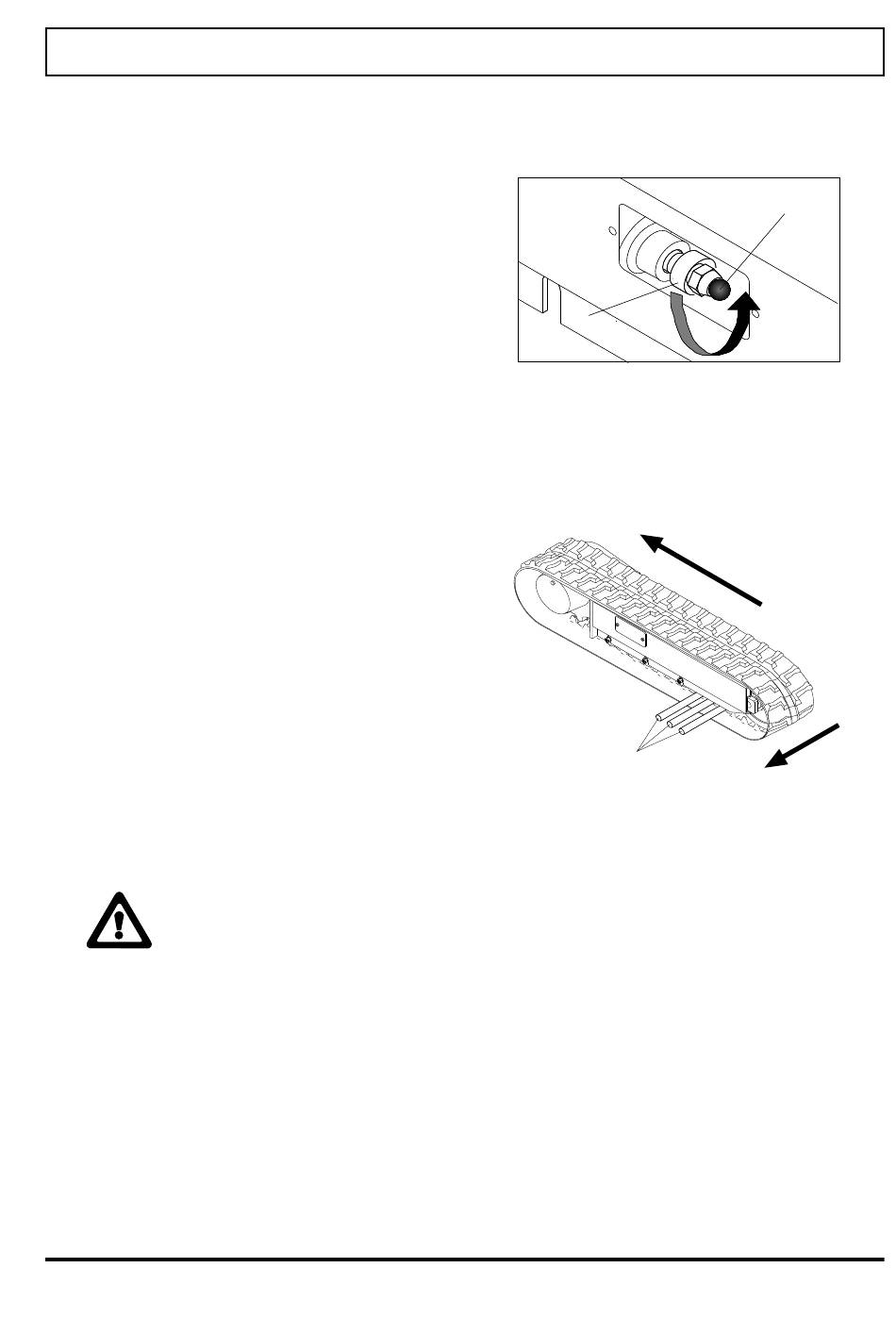

Removing the rubber track
1. Stop the machine on firm and level
ground, lift it and support it securely
and safely.
2. To loosen the track, slowly unscrew
valve 1 anticlockwise, giving it no more
than one turn. One turn of valve 1 is suf‐
ficient to loosen the track.
3. If the grease does not start to be drained,
slowly rotate the track.
4. Insert 3 steel tubes (4) into the track, in
the space between the rollers. Turn the
sprocket in reverse (5) so that the steel
tubes move with the track and are cau‐
ght in the idler roller.
Exert lateral force (6) to slide the track
and lift it up from the idler roller.
PERICOLO
DANGER
Installing the rubber track
1. Before assembling the tracks, make sure that the lifted machine does not repre‐
sent a danger and that the working conditions are safe.
2. Make sure that the grease contained in the hydraulic cylinder has been released.
3. Mesh the links of the track with the cogwheel and position the other end of the
track on the idler roller.
