Operation

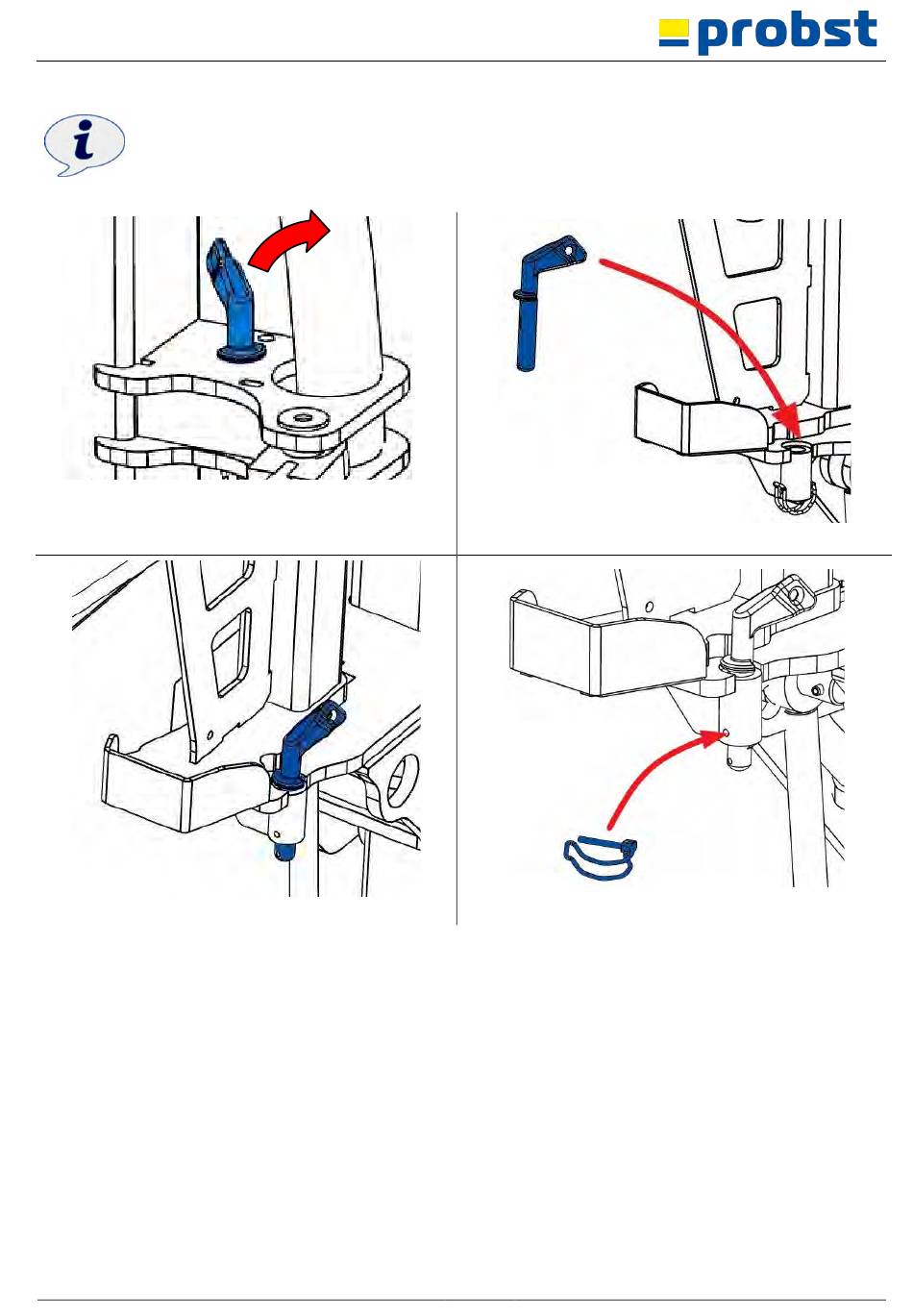

To limit the swivel range, position the boom so that the stop is to the left of the center (see Fig. 5).
Then insert the socket pin.
Remove the socket pin from its parking position (at the bottom of the mast) (Fig. 3) and then insert it at
the top of the mast (Fig. 4 + 5). Then secure the socket pin against falling out using the linch pin (Fig.
6)!
The boom can now only be swiveled to the right (in the direction of travel). → (Fig. 2)
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
Fig. 3
Fig. 5
31 / 40
Fig. 4
Fig. 6
