Operation
4.9 Locking of the boom
Risk of injury!
The boom can swivel independently and catch persons in the
swivel range if it is not guided by the operator!
As soon as work with the vacuum lifting unit is interrupted, the
boom must be locked! This prevents the boom from swiveling
around both axes.

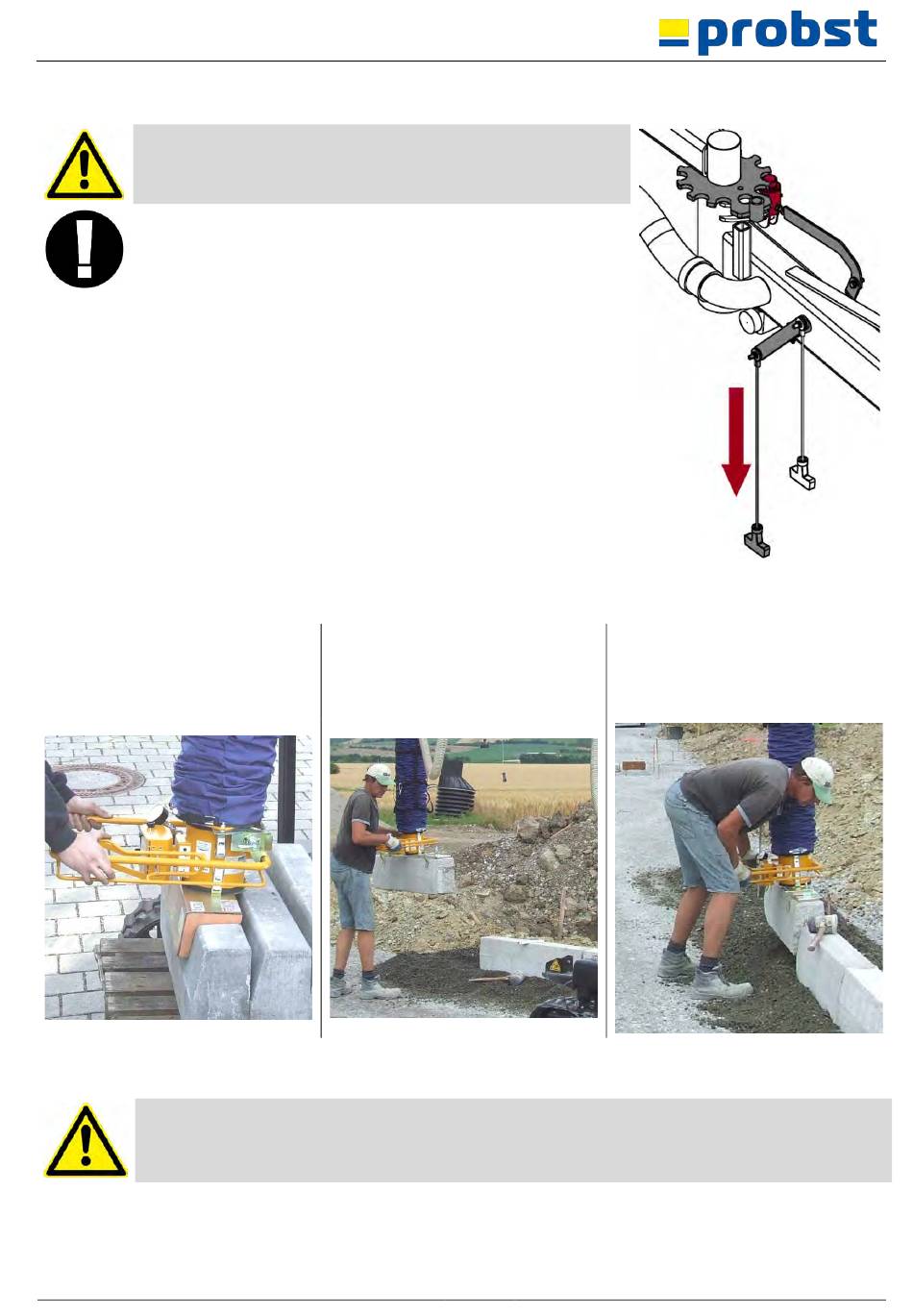

To lock the boom, pull the left-hand cable (see illustration) until the pin
•
engages in the sprocket.
• Both boom axes are locked simultaneously via a pull rod.
To release the lock, pull the right-hand cable.
•
4.10 Load handling
1. Place the suction plate on the
load
2. Build up vacuum via actuating
lever
4.11 Damages of suction plate
Avoidance of damages:
Otherwise the rubber seal on the suction plate could be damaged (danger of pressure loss).
Product could fall down. Danger of accidents!
To avoid damages of the rubber seal on the suction plate (chinks, abrasion) take notice, that:
• during the operation (lifting, transporting and lowering) with the device, the suction plate does
not brush or pump against other products or materials.
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
3. Lift load as soon as sufficient
vacuum is present
4. Bring the load to the laying site
32 / 40
5. Put down load
6. Detach the load via the
actuating lever
7. Next load can be transported
