Operation

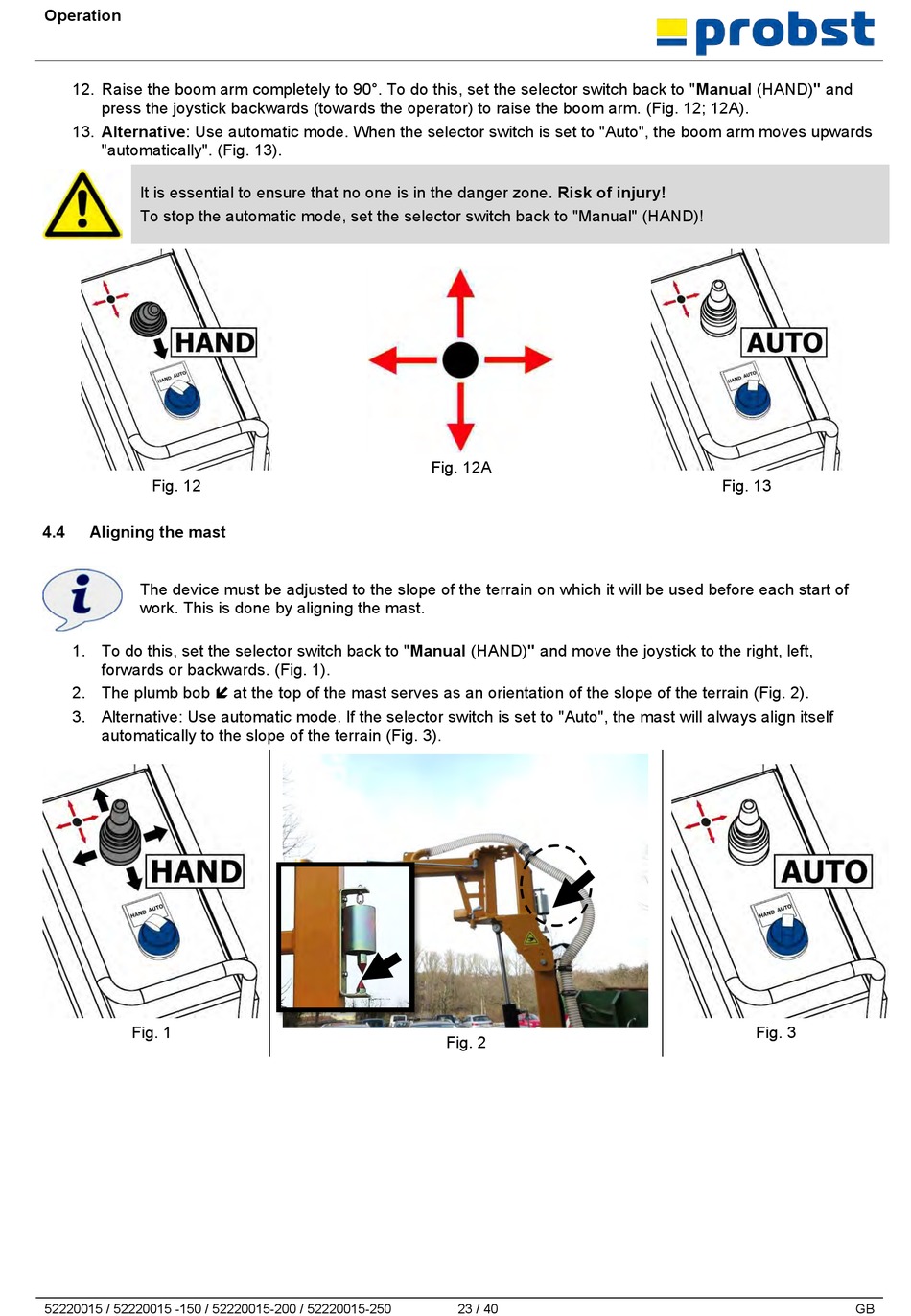

12. Raise the boom arm completely to 90°. To do this, set the selector switch back to "Manual (HAND)" and
press the joystick backwards (towards the operator) to raise the boom arm. (Fig. 12; 12A).
13. Alternative: Use automatic mode. When the selector switch is set to "Auto", the boom arm moves upwards
"automatically". (Fig. 13).
It is essential to ensure that no one is in the danger zone. Risk of injury!
To stop the automatic mode, set the selector switch back to "Manual" (HAND)!
Fig. 12
4.4 Aligning the mast
The device must be adjusted to the slope of the terrain on which it will be used before each start of
work. This is done by aligning the mast.
1. To do this, set the selector switch back to "Manual (HAND)" and move the joystick to the right, left,
forwards or backwards. (Fig. 1).
2. The plumb bob  at the top of the mast serves as an orientation of the slope of the terrain (Fig. 2).
3. Alternative: Use automatic mode. If the selector switch is set to "Auto", the mast will always align itself
automatically to the slope of the terrain (Fig. 3).
