Operation

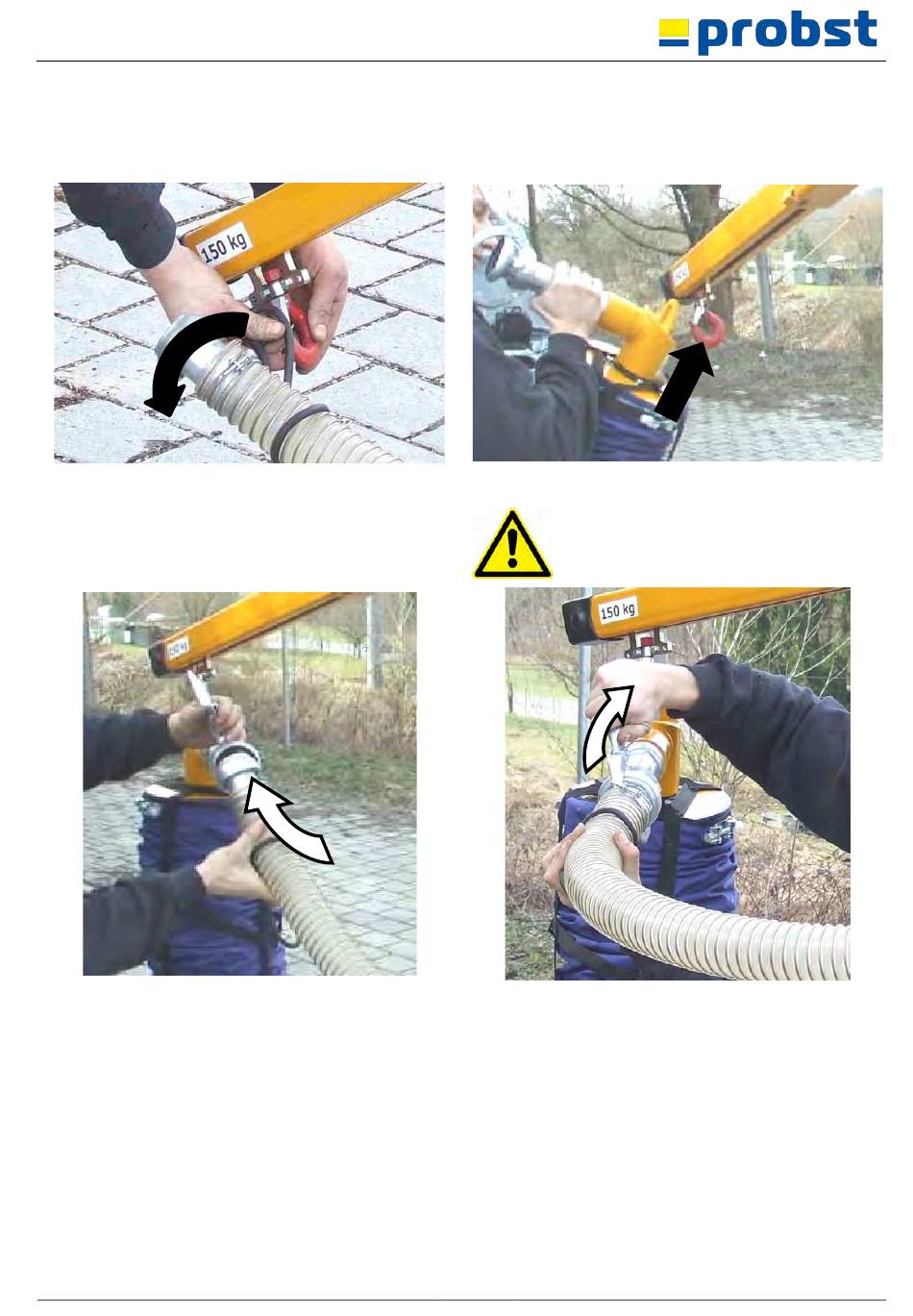

8. The lifting hose is secured to the mobile boom
hook with a rubber strap to prevent it from
swinging around. Disconnect the lifting hose
from this securing device and lay it on the
ground (Fig. 8).
10. Attach the lifting hose to the coupling piece (of
the lifting unit) (Fig. 10).
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
Fig. 8
Fig. 10
9. Hook the lifting unit onto the mobile jib hook
(Fig. 9).
11. Close the quick-release fastener
(Fig. 11).
CAUTION: Risk of injury to hands!
22 / 40
Fig. 9
Fig. 11
