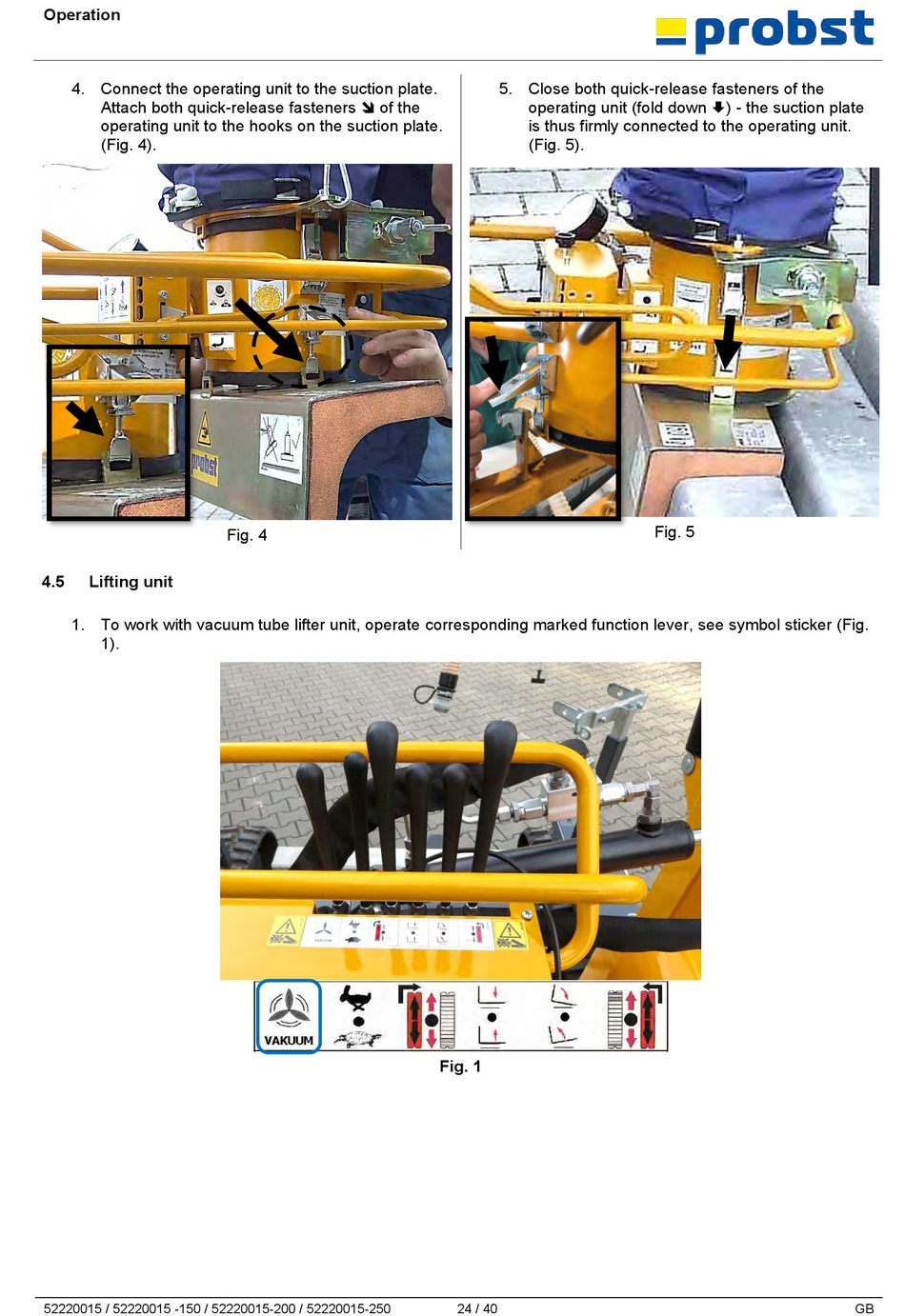

probst TM-D-A Betriebsanleitung Seite 25

Operation
4. Connect the operating unit to the suction plate.
Attach both quick-release fasteners  of the
operating unit to the hooks on the suction plate.
(Fig. 4).
4.5 Lifting unit
1. To work with vacuum tube lifter unit, operate corresponding marked function lever, see symbol sticker (Fig.
1).
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
Fig. 4
5. Close both quick-release fasteners of the
operating unit (fold down ) - the suction plate
is thus firmly connected to the operating unit.
(Fig. 5).
Fig. 1
24 / 40
Fig. 5
