General

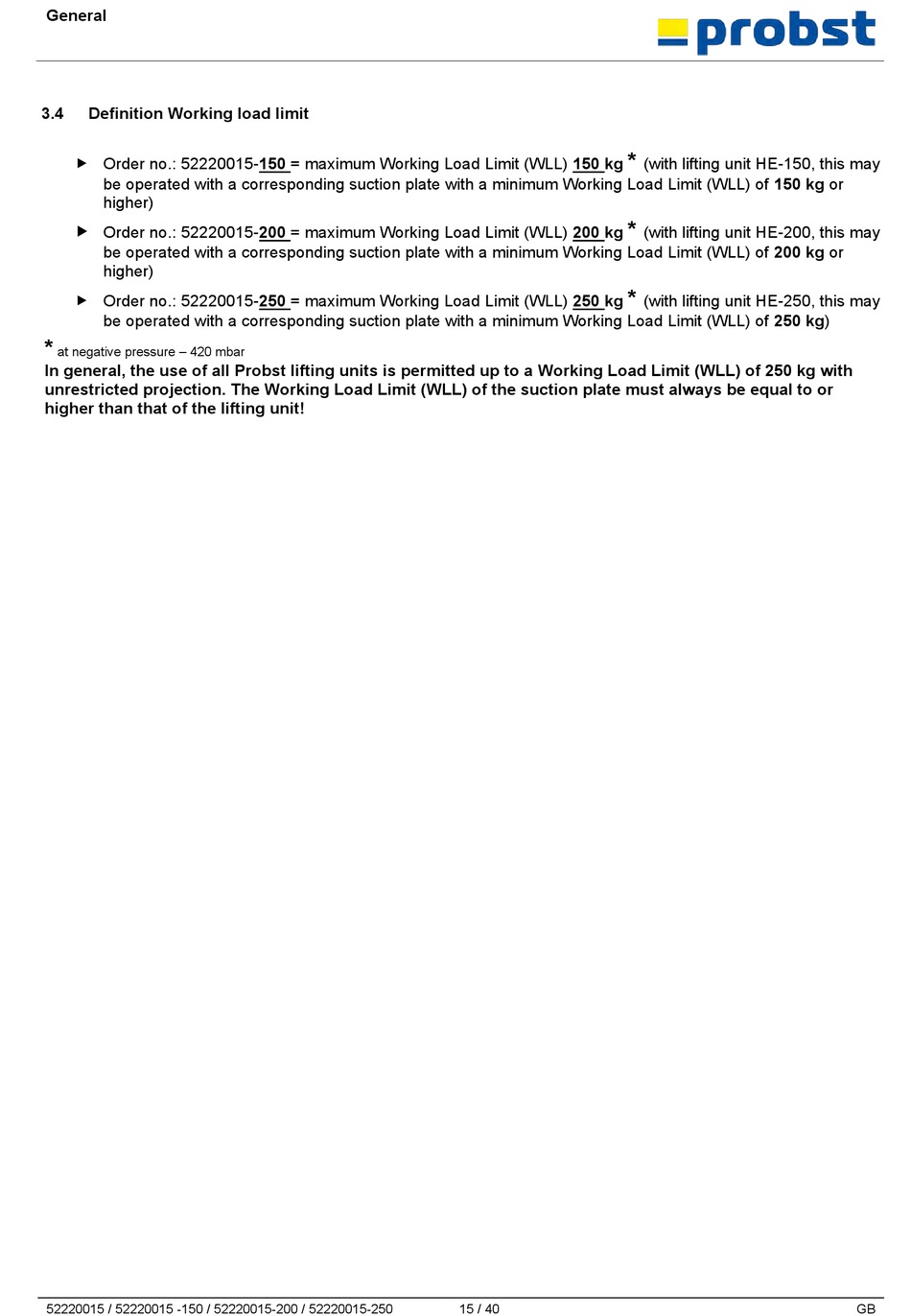

3.4 Definition Working load limit
 Order no.: 52220015-150 = maximum Working Load Limit (WLL) 150 kg
be operated with a corresponding suction plate with a minimum Working Load Limit (WLL) of 150 kg or
higher)
 Order no.: 52220015-200 = maximum Working Load Limit (WLL) 200 kg
be operated with a corresponding suction plate with a minimum Working Load Limit (WLL) of 200 kg or
higher)
 Order no.: 52220015-250 = maximum Working Load Limit (WLL) 250 kg
be operated with a corresponding suction plate with a minimum Working Load Limit (WLL) of 250 kg)
*
at negative pressure – 420 mbar
In general, the use of all Probst lifting units is permitted up to a Working Load Limit (WLL) of 250 kg with
unrestricted projection. The Working Load Limit (WLL) of the suction plate must always be equal to or
higher than that of the lifting unit!
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
*
*
*
15 / 40
(with lifting unit HE-150, this may
(with lifting unit HE-200, this may
(with lifting unit HE-250, this may
