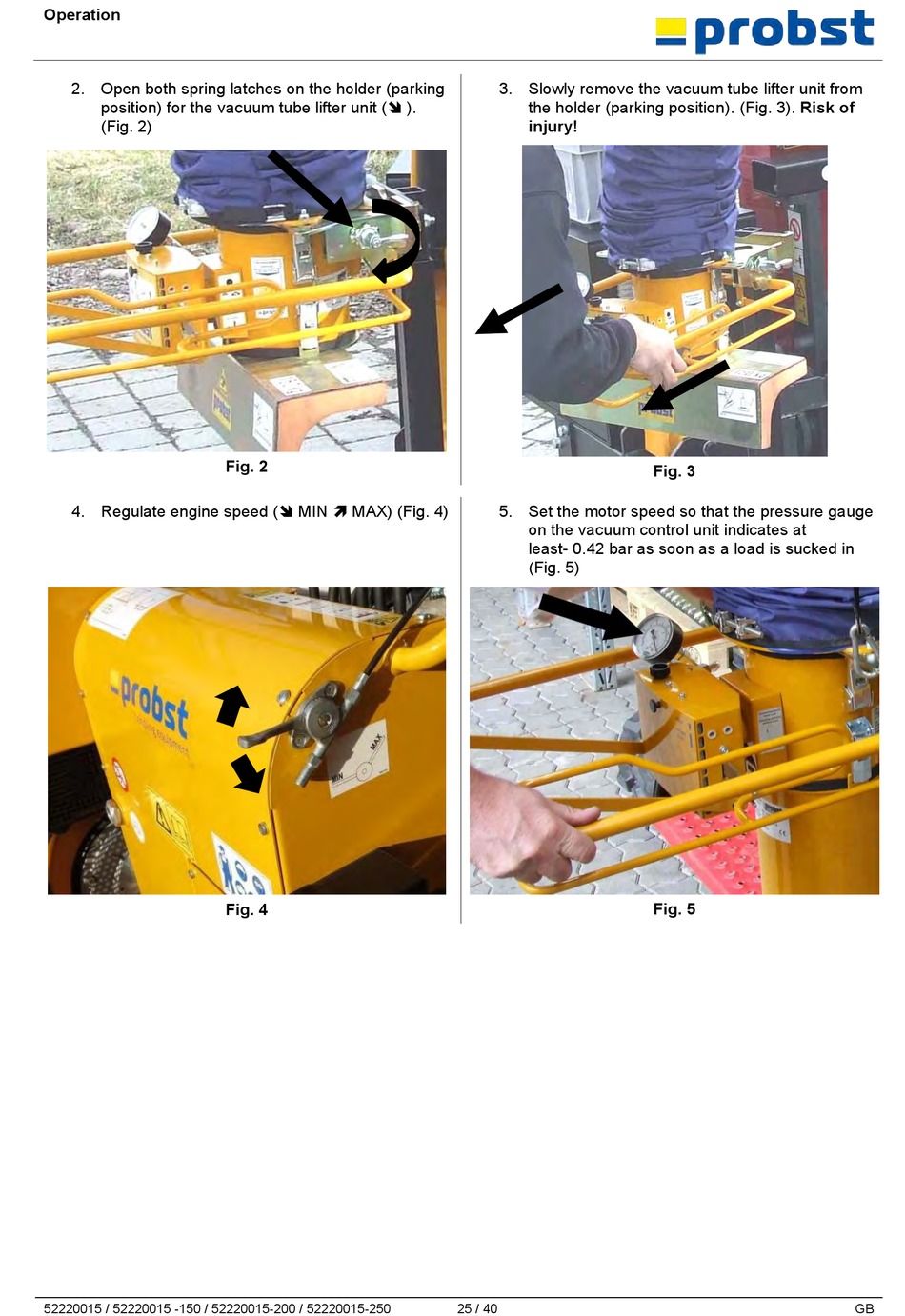

Operation
2. Open both spring latches on the holder (parking
position) for the vacuum tube lifter unit ( ).
(Fig. 2)
4. Regulate engine speed ( MIN  MAX) (Fig. 4)
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
Fig. 2
Fig. 4
3. Slowly remove the vacuum tube lifter unit from
the holder (parking position). (Fig. 3). Risk of
injury!
5. Set the motor speed so that the pressure gauge
on the vacuum control unit indicates at
least- 0.42 bar as soon as a load is sucked in
(Fig. 5)
25 / 40
Fig. 3
Fig. 5
