Transport

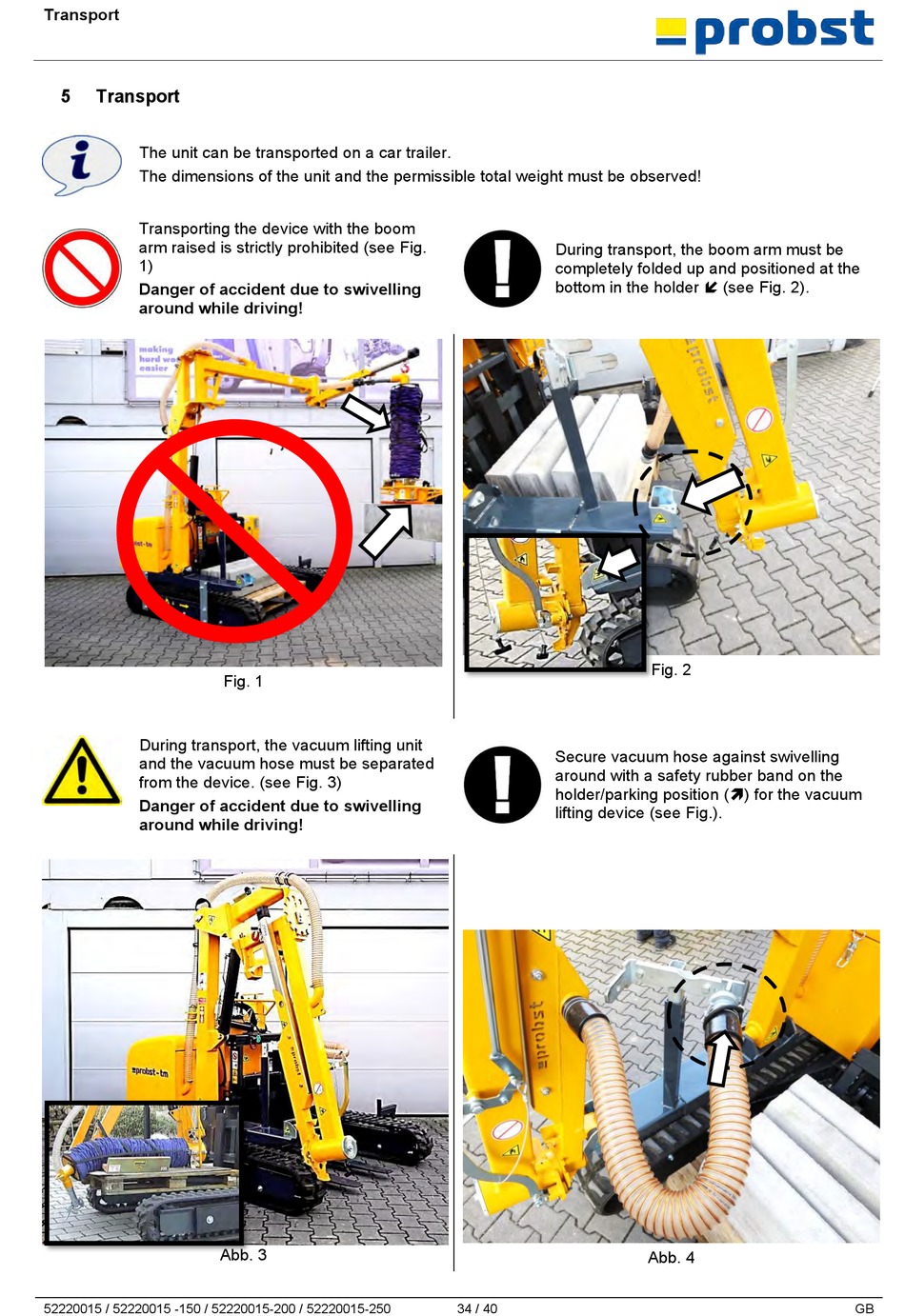

5 Transport
The unit can be transported on a car trailer.
The dimensions of the unit and the permissible total weight must be observed!
Transporting the device with the boom
arm raised is strictly prohibited (see Fig.
1)
Danger of accident due to swivelling
around while driving!
During transport, the vacuum lifting unit
and the vacuum hose must be separated
from the device. (see Fig. 3)
Danger of accident due to swivelling
around while driving!
52220015 / 52220015 -150 / 52220015-200 / 52220015-250
Fig. 1
Abb. 3
During transport, the boom arm must be
completely folded up and positioned at the
bottom in the holder  (see Fig. 2).
Secure vacuum hose against swivelling
around with a safety rubber band on the
holder/parking position () for the vacuum
lifting device (see Fig.).
34 / 40
Fig. 2
Abb. 4
