3-3. Scale Mounting

1

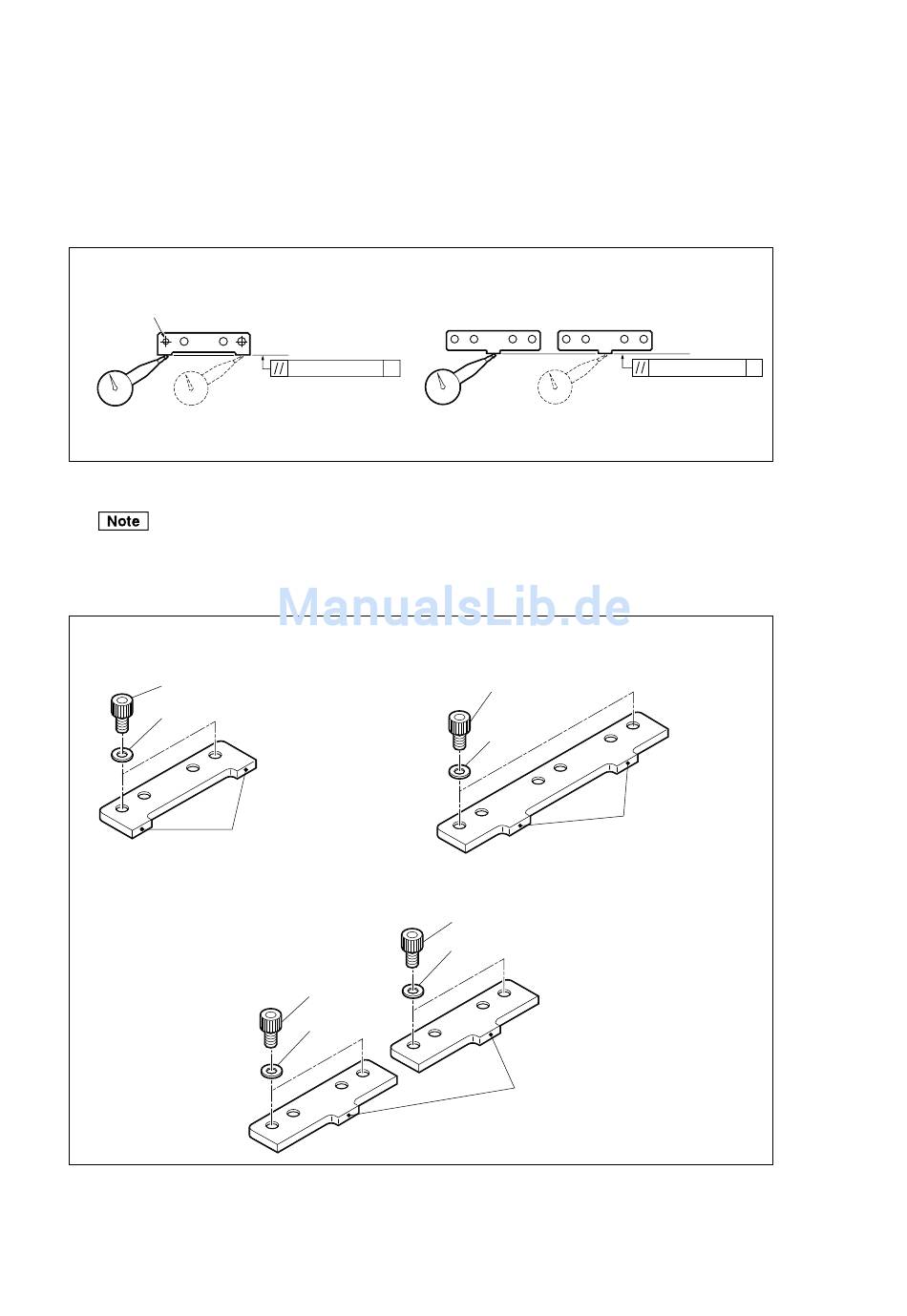

Check that there is no dust or other foreign substances on the mounting surface, and mount the reference
plate parallel to the machine guide as shown in the figure. (Fastening torque: 1.4 N · m)
The reference hole is located on the left, as shown in the figure. Adjust at the right side while observing
the parallelism with the lever type dial gauge.
BL57-003RE to 046RE
+ 0.05
Reference ø4
0
The scale is pressed against the reference plate for parallelism when mounting. The reference plate is
vital to accurate scale mounting. Be sure to always use the supplied screw and mount it exactly as
described in the specifications.
BL57-003RE, 011RE, 016RE,
021RE, 036RE, 041RE
M4
Plain washer (nominal 4)
Reference abutment
surface
BL57-RE
0.01 (0.00039") M
Fig. 3-5
BL57-056RE, 066RE, 076RE, 086RE, 096RE, 106RE
M4
Plain washer
(nominal 4)
Fig. 3-6
BL57-056RE to 106RE
Note: "M" refers to the machine guide.
BL57-006RE, 026RE, 031RE, 046RE
M4
Plain washer
(nominal 4)
M4
Plain washer (nominal 4)
Reference abutment
surface
0.1 (0.0039") M
Reference abutment
surface
3-5
(E)
