3
Check the mounting surface and the datum surface of the scale for dust and dirt. If the surfaces are dirty,
wipe them clean with gauze moistened with alcohol.
4
Insert the scale between the scale clamp and the mounting surface while pressing the datum surface of
the scale (see Fig. 3-6) lightly against the reference abutment surface (Note). Gradually and alternately
tighten screws A and B of the scale clamp indicated in the figure. (Use only the left-side scale clamp for
clamps with two screws, and use the center scale clamp for clamps with three screws.) (Final fastening
torque: 1.4 N · m)

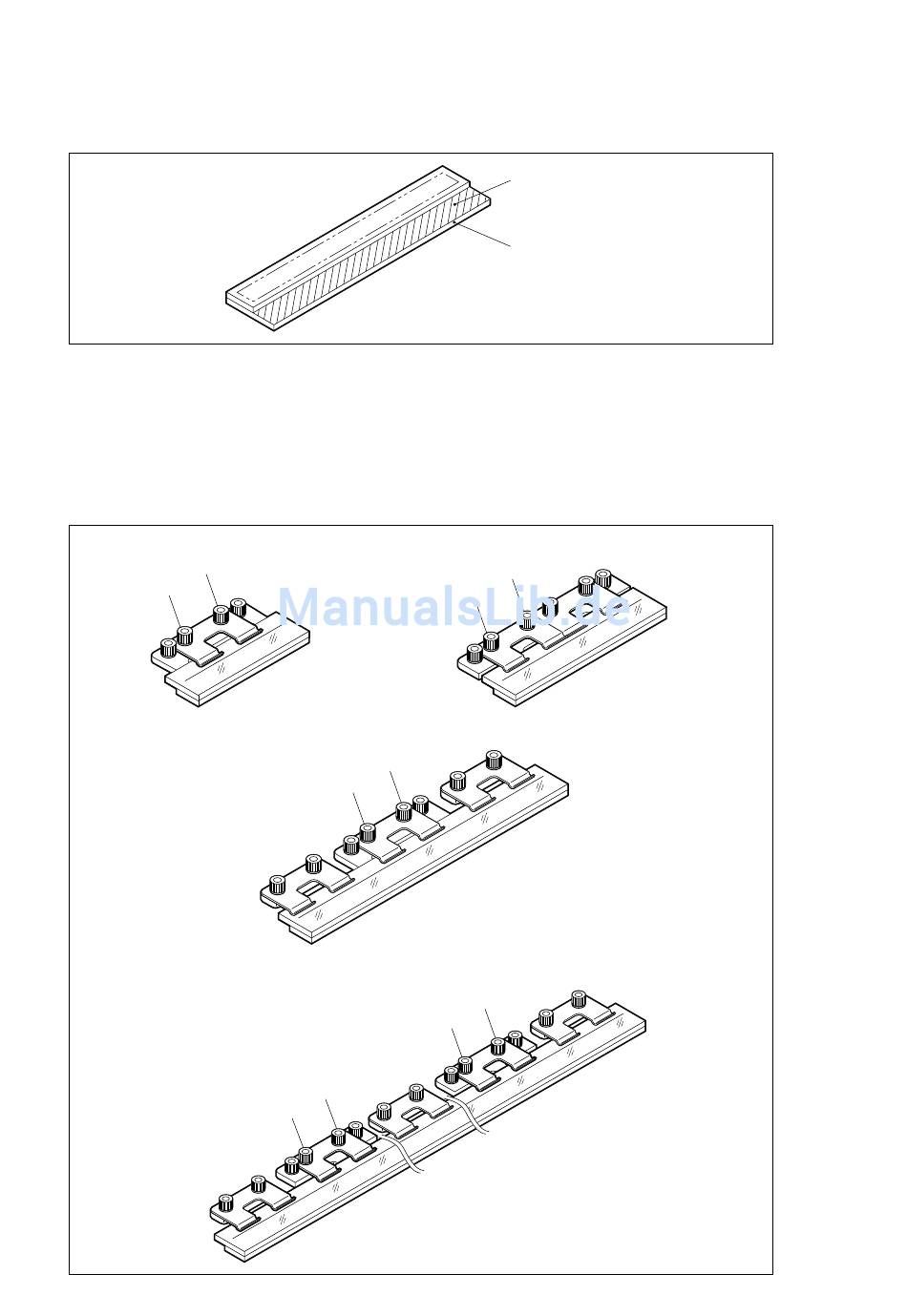

BL57-003RE
B
A
BL57-RE
Fig. 3-8
BL57-011RE, 016RE, 021RE, 036RE, 041RE
B
A
BL57-056RE, 066RE, 076RE, 086RE, 096RE, 106RE
B
A
Fig. 3-9
Mounting surface
Datum surface
BL57-006RE, 026RE, 031RE, 046RE
B
A
B
A
3-7
(E)
