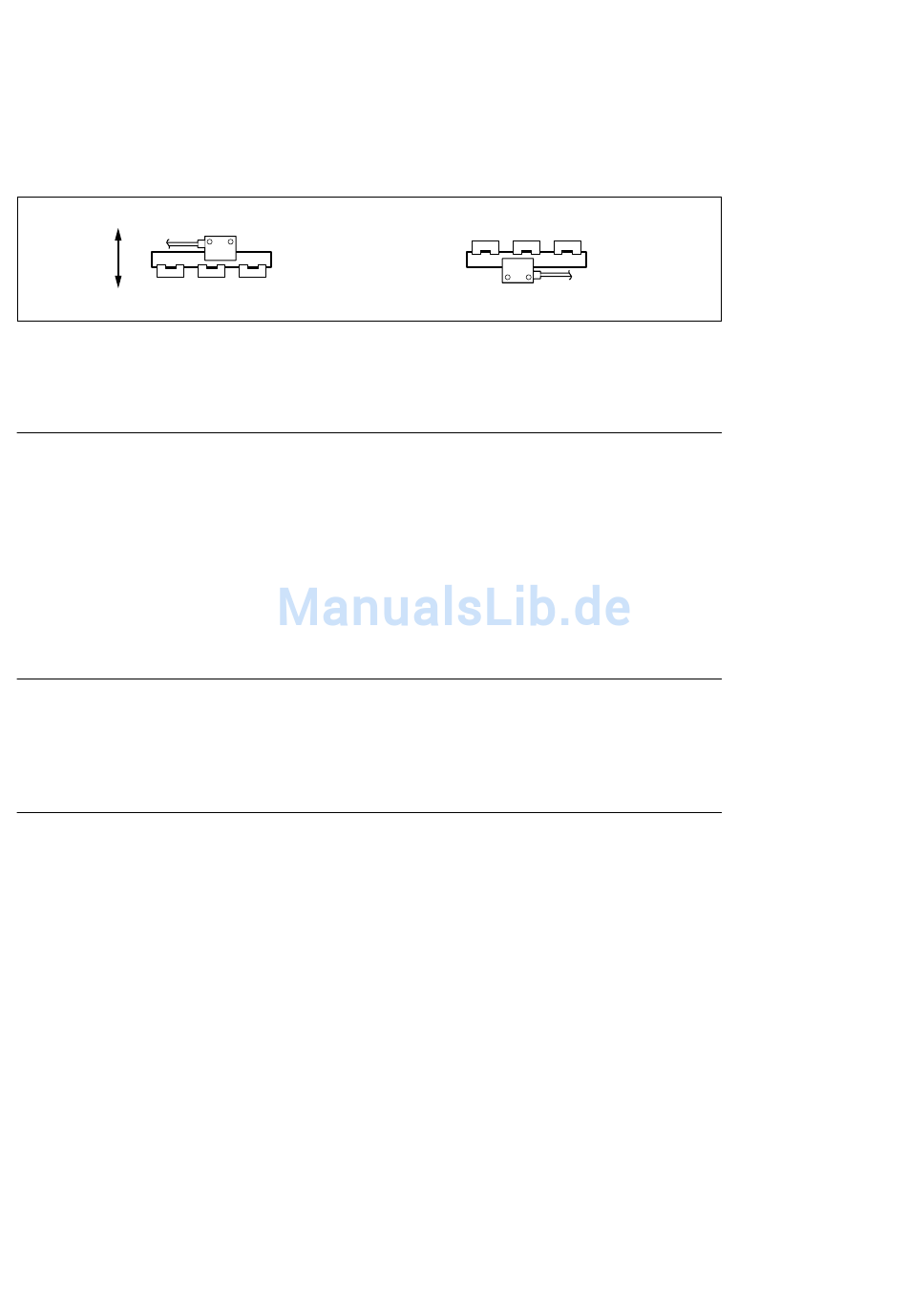

3-1-2. Mounting Direction

Mounting can be performed in the vertical or horizontal direction.
The mounting direction shown in the figure is recommended when mounting in the horizontal direction.
Upside
Downside

3-1-3. Mounting Requirements

Measuring Instruments

• Electrical micrometer or lever type dial gauge ...................................................................................... (1)
(one that can measure to an accuracy of 2 µm)
• Dial gauge stand ..................................................................................................................................... (1)
• Oscilloscope ........................................................................................................................................... (1)
Capable of 2-quadrant X-Y display
Input sensitivity
X-Y frequency band : 1 MHz or more
Tools
• Hex. wrenches: 3 mm ............................................................................................................................. (1)
• Philips screwdriver No. 1 ....................................................................................................................... (1)
• Philips screwdriver No. 0 ....................................................................................................................... (1)
Miscellaneous
• Accessories ...................................................................................................................................... (1 set)
• Gauze ................................................................................................................................ (Small amount)
• Alcohol .............................................................................................................................. (Small amount)
3-2
(E)
Fig. 3-2
: DC 0.1 V/DIV
or
BL57-RE
