2

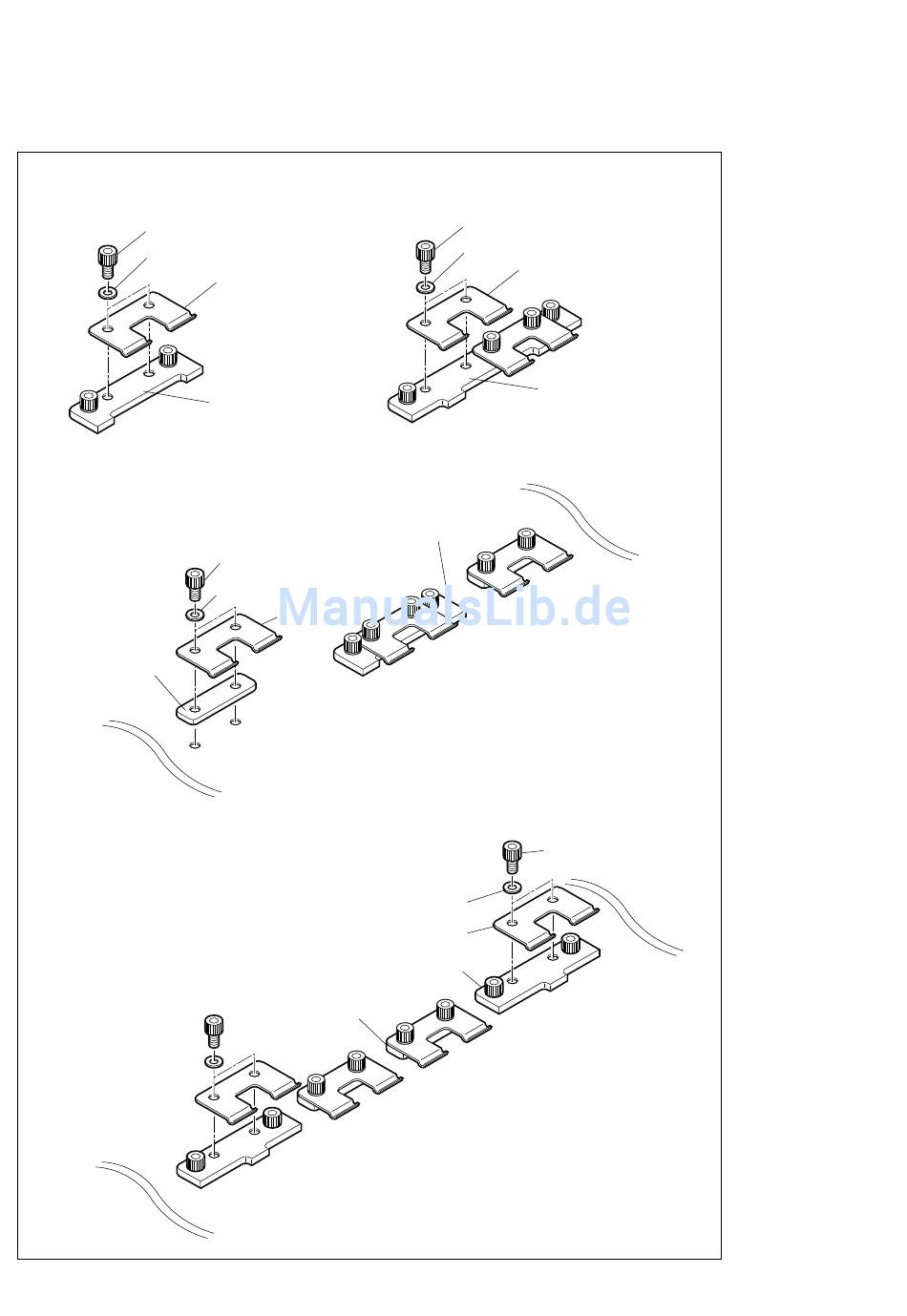

Attach the scale clamps loosely (1 or 2 full turns looser than the semi-tightened position) by using the
mounting screws, as shown in the figure.
BL57-003RE
M4
Plain washer (nominal 4)
Spacer
3-6
(E)
Scale clamp
Reference plate
BL57-011RE, 016RE, 021RE, 036RE, 041RE
M4
Plain washer (nominal 4)
Scale clamp
BL57-056RE, 066RE, 076RE, 086RE, 096RE, 106RE
Plain washer (nominal 4)
Reference plate
Spacer
Fig. 3-7
BL57-006RE, 026RE, 031RE, 046RE
M4
Plain washer (nominal 4)
Scale clamp
Reference plate
Reference plate
M4
Scale clamp
BL57-RE
