7. Installation of the control unit in the outdoor cabinet M
7. Installation of the control unit in the outdoor cabinet M
1.

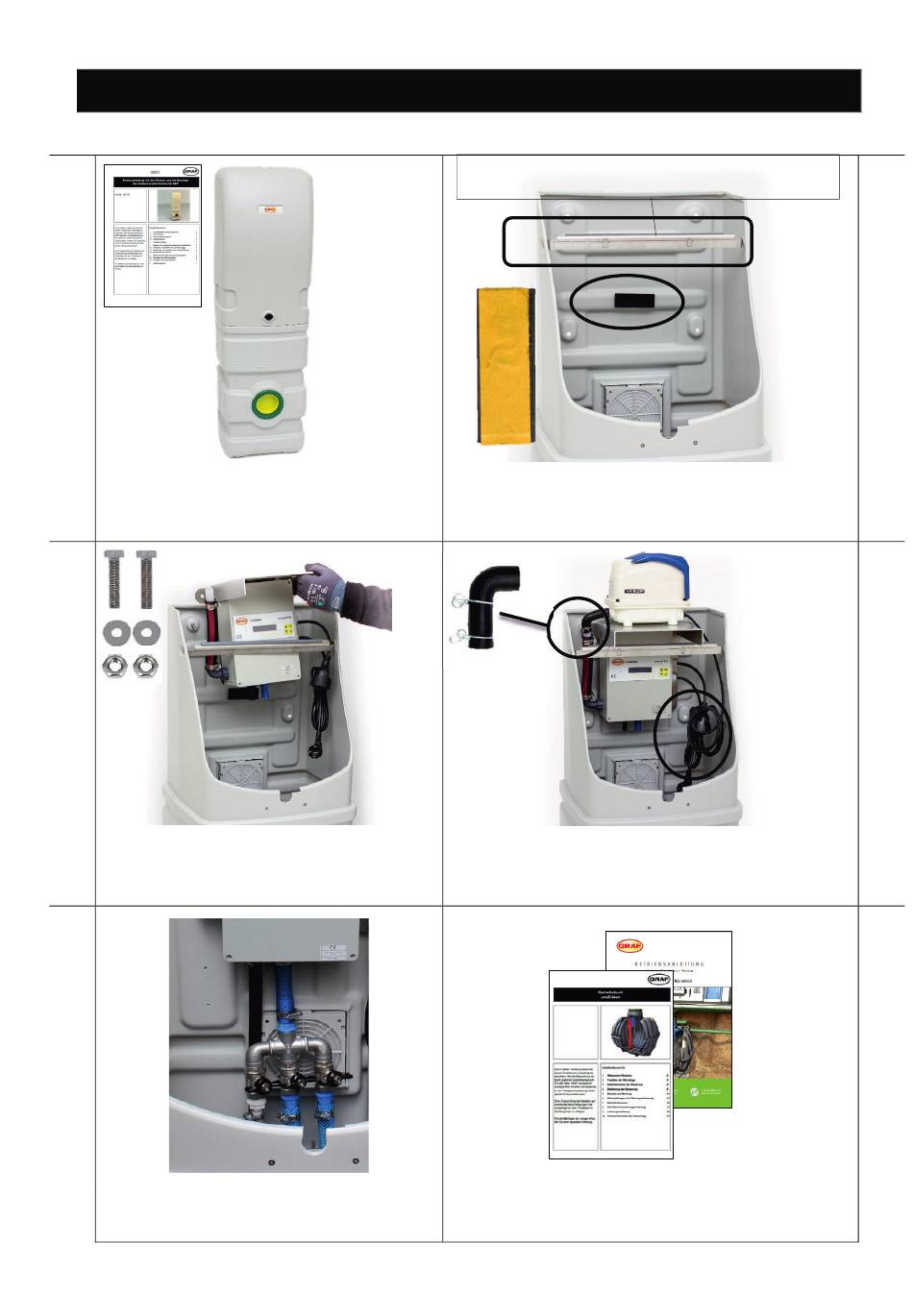

The outdoor control cabinet is to be set up ac-
cording to the installation instructions and the
electrical connection is to be established.
3.
The control unit is attached using the screws,
washers and nuts supplied with the control
cabinet.
5.
The installation of the additional air distributor
is analogous to 5.4 and 5.5.
mail@graf.info
www.graf.info
Recommendation, crossbeam not included in scope of delivery
Before installing the control unit, the supplied sponge
rubber strip must be glued to the back.
Optional: Installation of the traverse set for outdoor
cabinet M, Art. No. 105190 (to be ordered separately).
The compressor is placed on the control unit. The rub-
ber angle piece should be used for the air connection.
For the power connection, the plug of the compressor is
plugged into the socket of the control unit.
Further commissioning of the wastewater treatment
plant and setting up the control system are described in
the operating manual.
