Graf one2clean Einbauanleitung Seite 20

1.

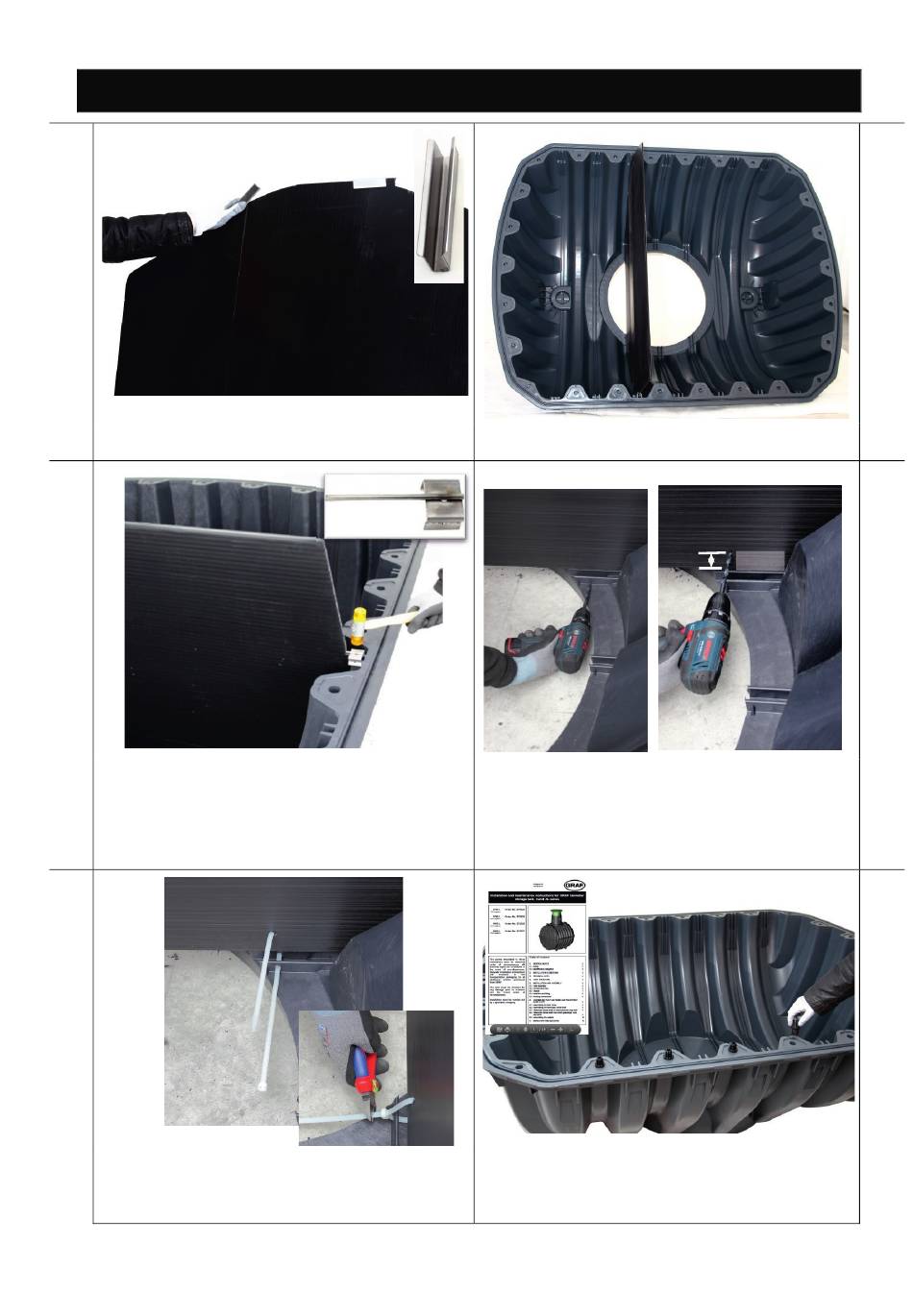

Unfold the baffle. Place the clamps on either side
of the folding edges.
3.
The fixing clamp has to be pushed with the
rounded stick in to the baffles side. The fixing
clamp has to be fixed.
5.
Pass a cable tie through both holes and tighten it.
Cut the excess cable tie.
Repeat this procedure on the opposite side
mail@graf.info
www.graf.info
4. Installation of the set-up kit
Insert the baffle into the upper shell. A groove off-
sets in an off-centre position.
Once the baffle has been positioned perforate the
inner rib directly above the wall using an 8mm. drill
head.
Perforate the baffle 4 cm. from its edge using the
same 8 mm. drill head.
Continue assembling the Carat S tank according to
the installation instructions (seal, centring pins, lub-
ricant).
20 / 80
