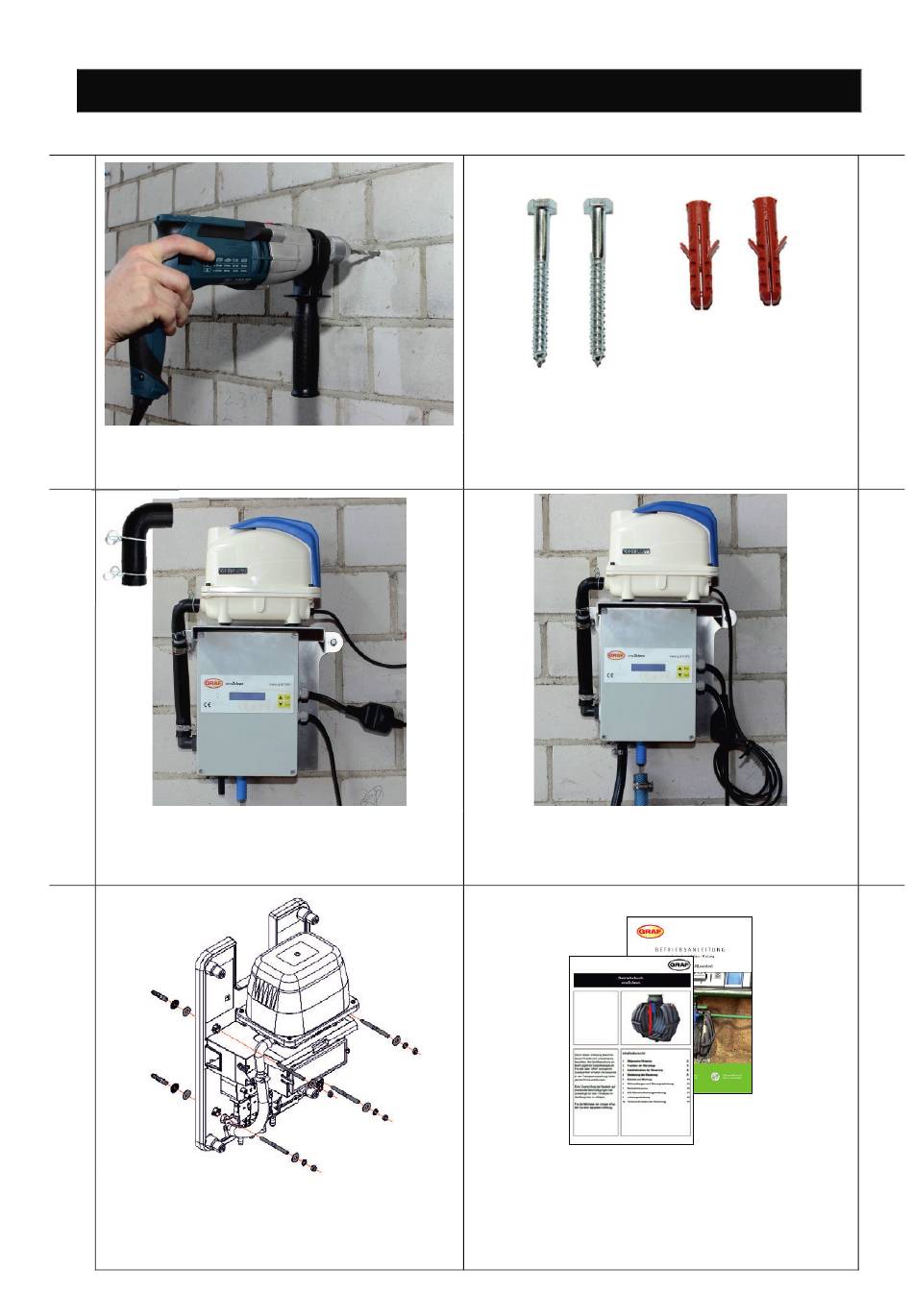

5. Installation of control unit one2clean/PP cabinet indoor
5. Installation of control unit one2clean/PP cabinet indoor
1.
The control must be installed in a dry and dust-
free interior. Two 8 mm holes must be drilled into
the wall for assembly.
3.
Position the compressor on the control. Connect
the compressor to the control unit pipe using the
90 deg. hose piece and hose clamps provided.
Plug the compressor plug into the control socket.
5.
With the one2cleanXtra, the PP cabinet is at-
tached using 4 hanger bolts, which are secured
to the wall with wall plugs. The washers, toothed
lock washers and nuts must be fitted as shown in
the figure above.
mail@graf.info
www.graf.info
Secure the control to the wall using the dowels and
screws provided.
Connect the air hoses to the control's hose nozzles.
We recommend heating the hose ends for assembly.
For further information please refer to the Control
Unit operating manual.
