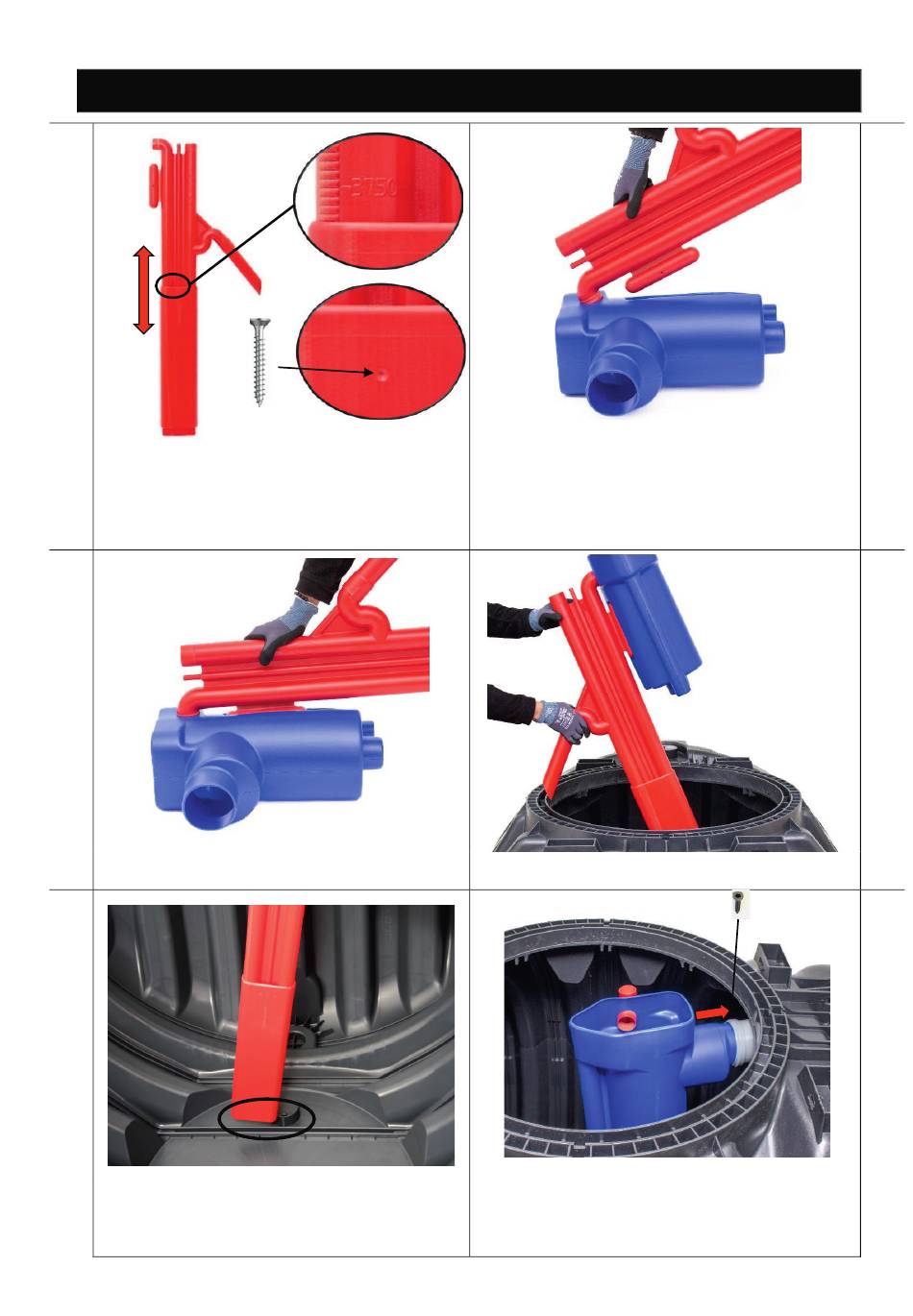

The length of the siphon must be adjusted accord-
ing to the size of the tank by moving the siphon
shoe. The approximate position is indicated on the
siphon. The exact height is to be determined in the
container. After determining the exact height, se-
cure the siphon shoe with the 4x30 screw.
15.
Push the airlift pump into the sampler (until it
snaps into place).
17.
Insert the airlift pump into the groove.
mail@graf.info
www.graf.info
4. Installation of the set-up kit
Assemble the airlift pump and sampler. To do this,
push the airlift pump outflow into the sampler hole.
Insert the airlift pump into the tank along with the
sampler.
Insert the sampler's outflow connection into the
sleeve of the outflow pipe (use lubricant!). The
sleeve connection must be secured with a Spax
screw.
