Operating information

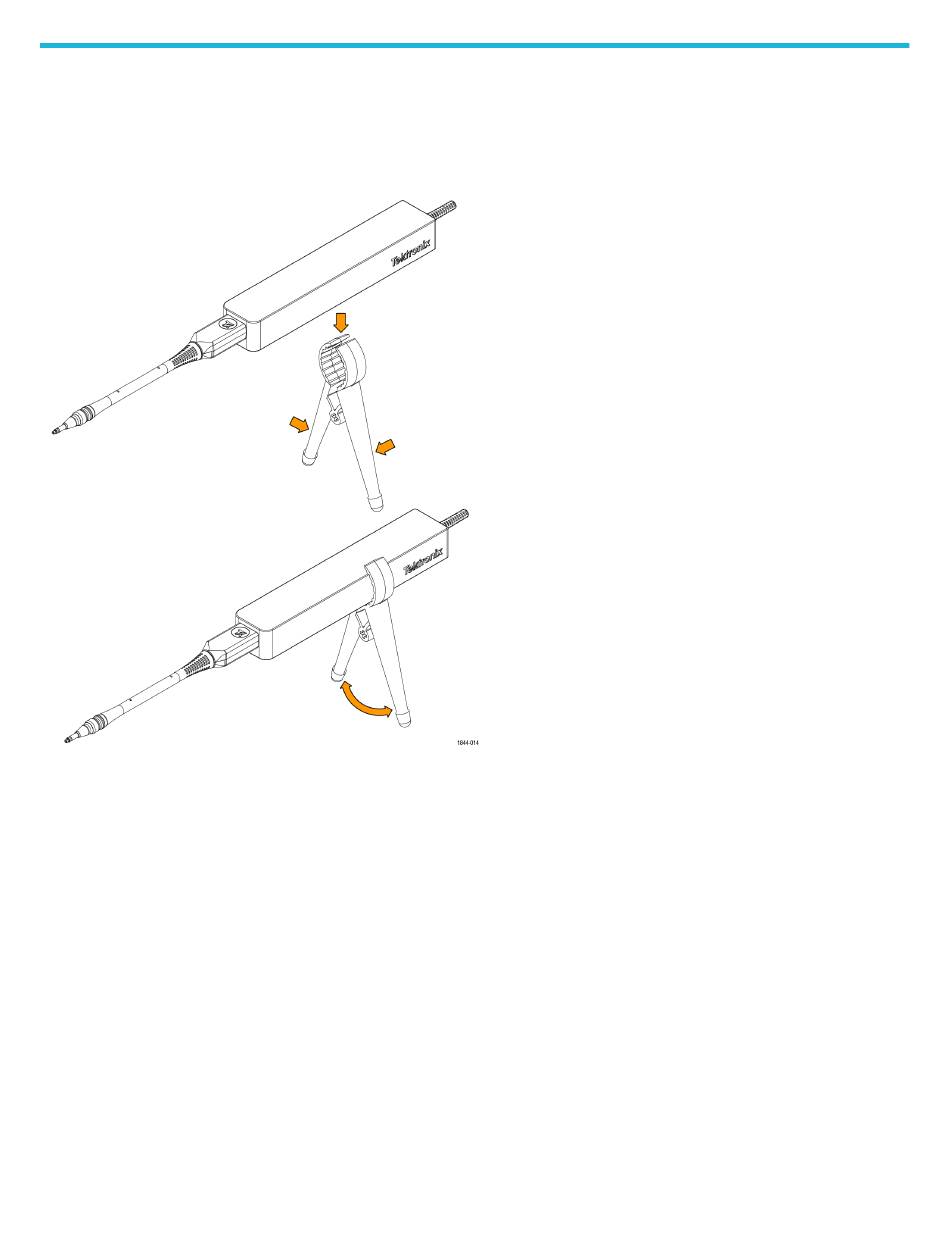

Bipod installation
The following steps describe installing the bipod to the probe head.
Procedure
1. Squeeze the handles of the bipod together to open the clamp.
2. Place the probe head into the clamp and release the handle so the probe is as the angle needed to connect to the DUT.
TICP Series Active Isolated Current Shunt Probes User Manual 25
