Maximum common mode voltage: 1.8 kV; For use in a Pollution Degree 1 environment; transient level not to exceed 5 kV
•
1.5% DC gain accuracy
•
Compatible with the 4, 5, and 6 Series MSO instruments, including the latest B models
•
TekVPI™ interface enables control and probe configuration from the oscilloscope front panel or programming interface
Model overview
Model
TICP025
TICP050
TICP100
Standard accessories

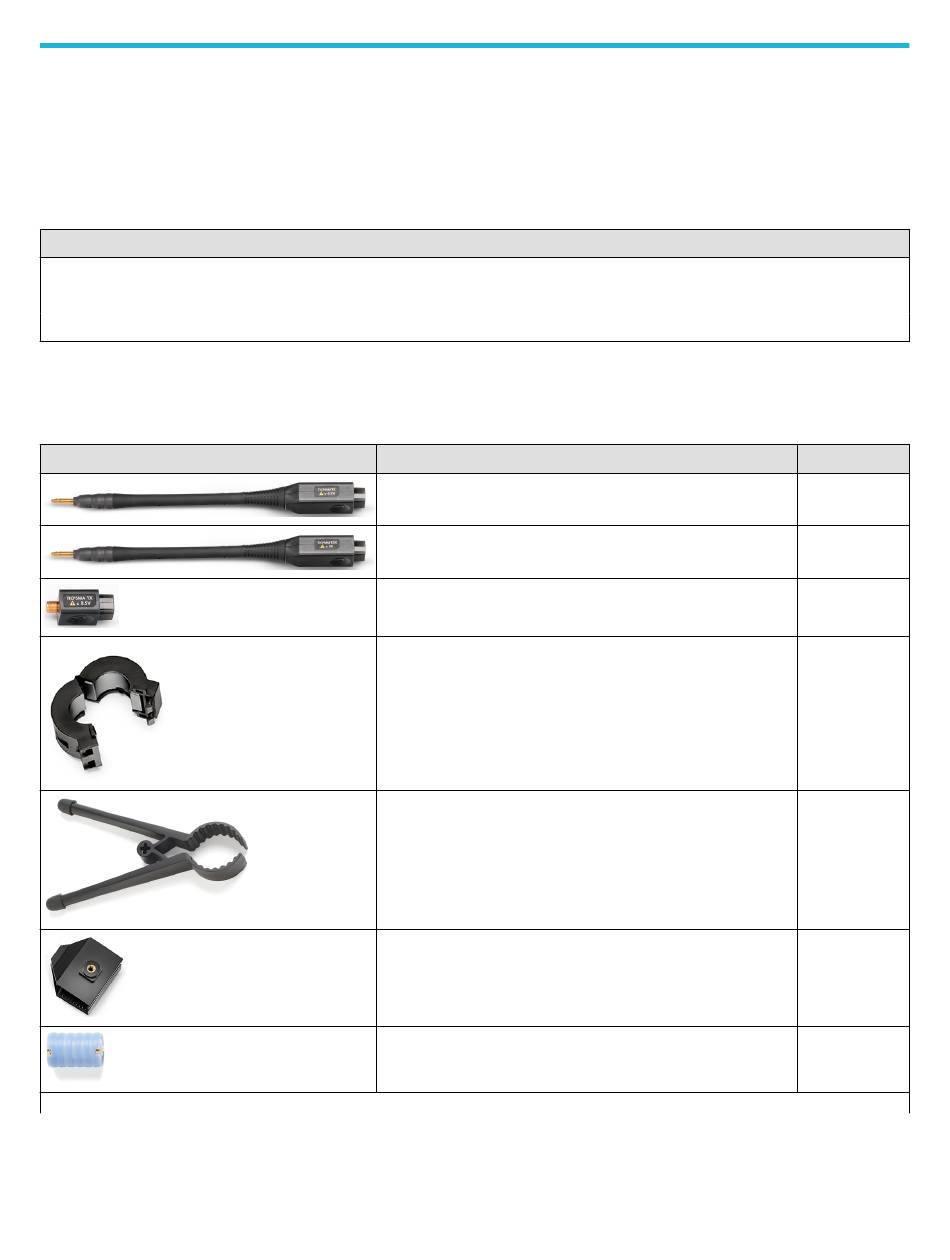

The following table lists the accessories that are shipped with the probe.
Accessory
Table continued...
16
Description
250 MHz Tektronix Isolated Current Probe
500 MHz Tektronix Isolated Current Probe
1 GHz Tektronix Isolated Current Probe
Description
1X probe tip cable with MMCX connector
10X probe tip cable with MMCX connector
SMA tip adapter
Clamp-on ferrite common mode choke
Bipod is used to hold the probe.
Tripod adapter for ¼ in - 20 UNC thread accessories.
Probe tip adapter. Adapts an MMCX IsoVu tip to standard 0.100"
spaced, 0.025" square pins.
pk
Part number
TICPMM1
TICPMM10
TICPSMA
276-0905-XX
020-3210-XX
103-0508-XX
131-9717-XX
