Note: Connect the probe head to a bipod, tripod (with adapter), or a similar support. Using a support keeps the probe head
steady, reducing the potential mechanical stresses at the electrical connection point of the DUT. The support also keeps
the probe head away from surrounding circuits and conductive objects to minimize the parasitic capacitive coupling to these
surroundings. The supplied tripod adapter is required to attaching the TICP Series probe to a tripod.

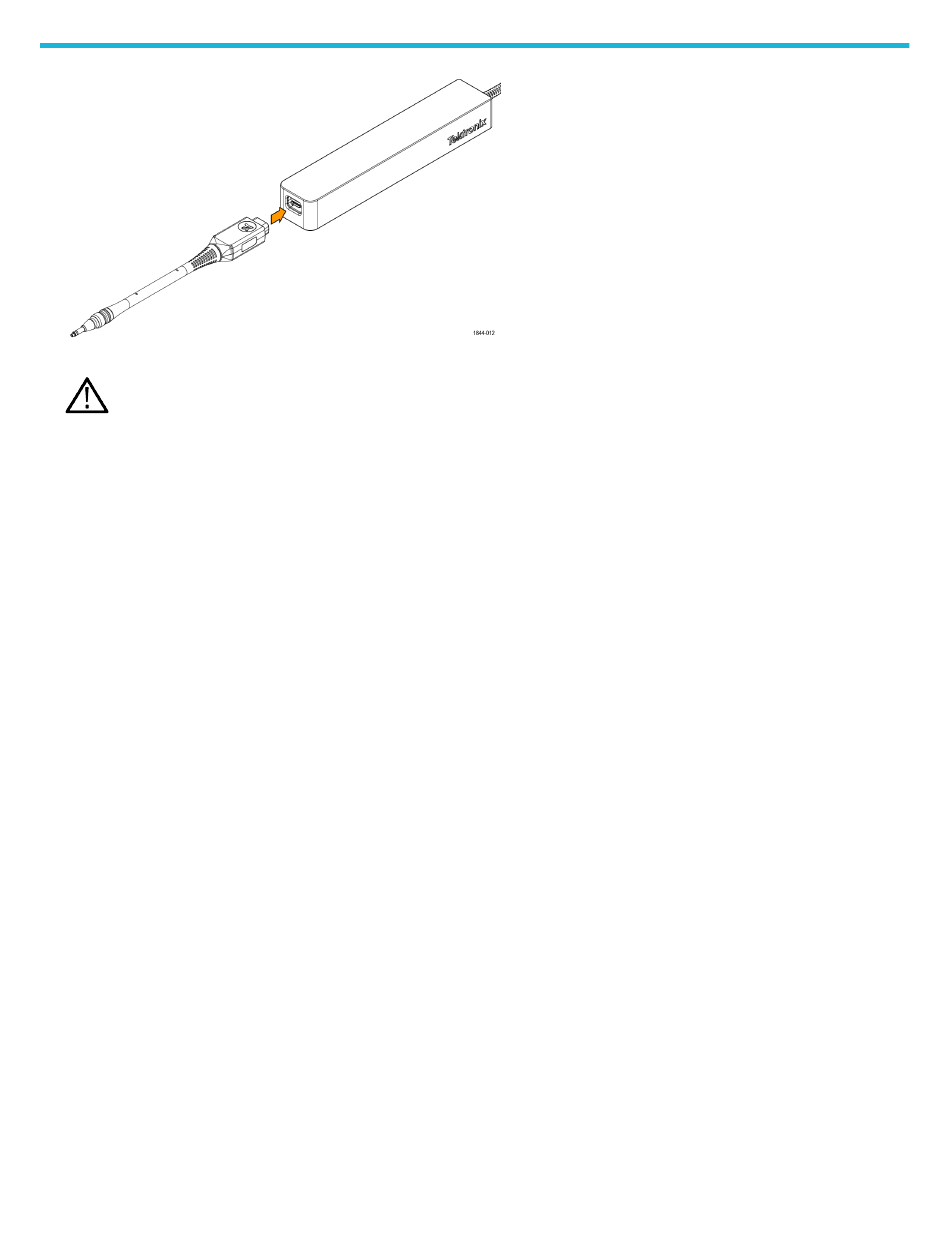

4. Connect the probe tip end to the DUT.
If you are using MMCX tip, connect the tip to an MMCX connector or to a square pin adapter before connecting to the DUT. The
adapters connect to square pins with either 0.100-inch (2.54 mm) spacing or 0.062-inch (1.57 mm) spacing.
5. Set up the controls on the oscilloscope.
6. Apply power to the DUT to take the measurement.
