Operating information
Probe tips
Each probe tip has a label that provides the maximum dynamic range and displays the attenuation factor.

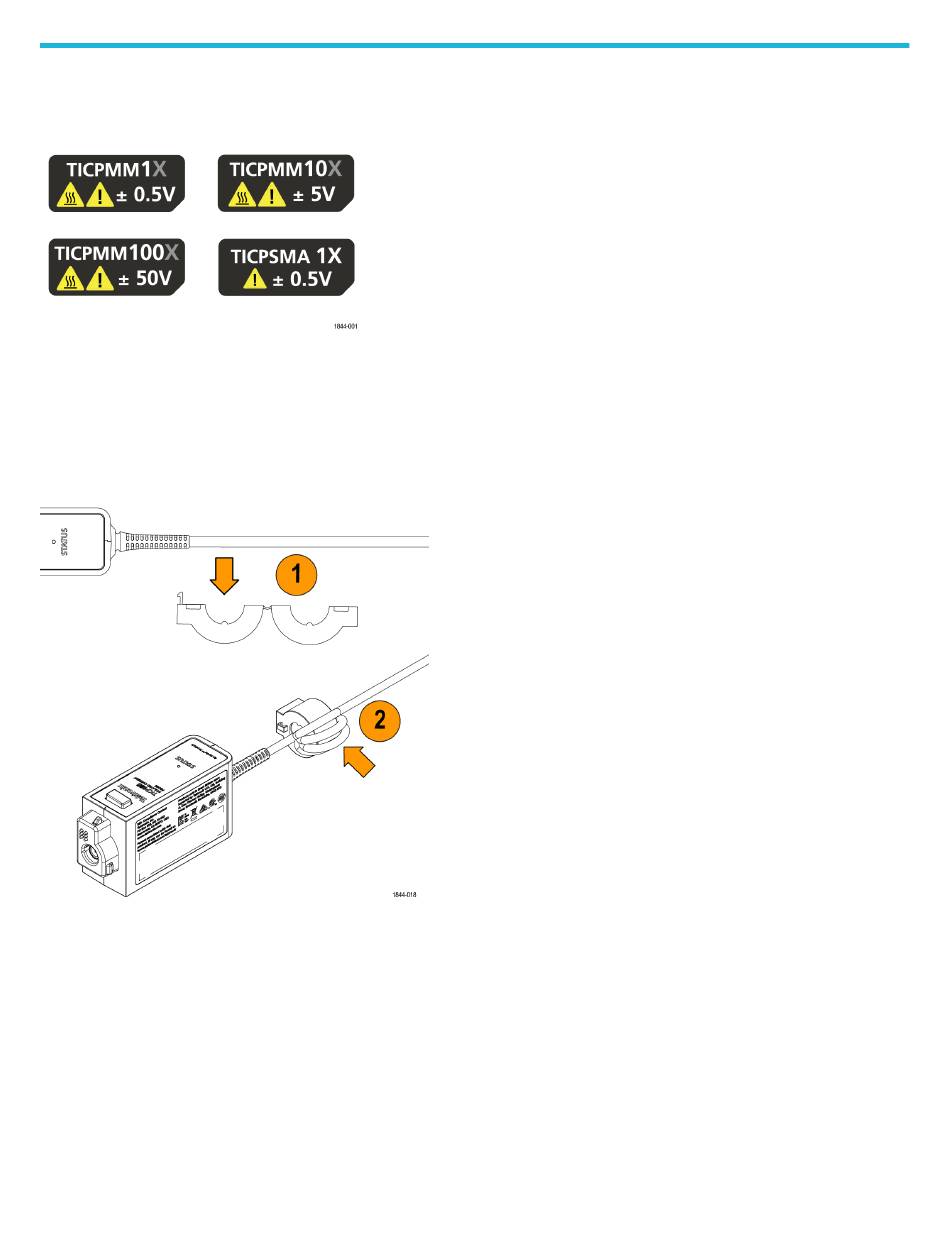

Ferrite clamp installation
The following steps describe installing the common mode ferrite clamp on the probe cable.
Procedure
1. Position the common mode ferrite clamp within 0.25 inches of the compensation box strain relief.
2. Loop the cable around the open ferrite clamp five times and close the clamp.
Make sure the loops are as small as possible to maximize the effectiveness of the ferrite.
What to do next
To remove the ferrite clamp from the probe cable, insert a flat head screwdriver in the gap between the latches of the clamp and lift up.
