SycoTec 4033 xC-C3 Gebrauchsanweisung Seite 54

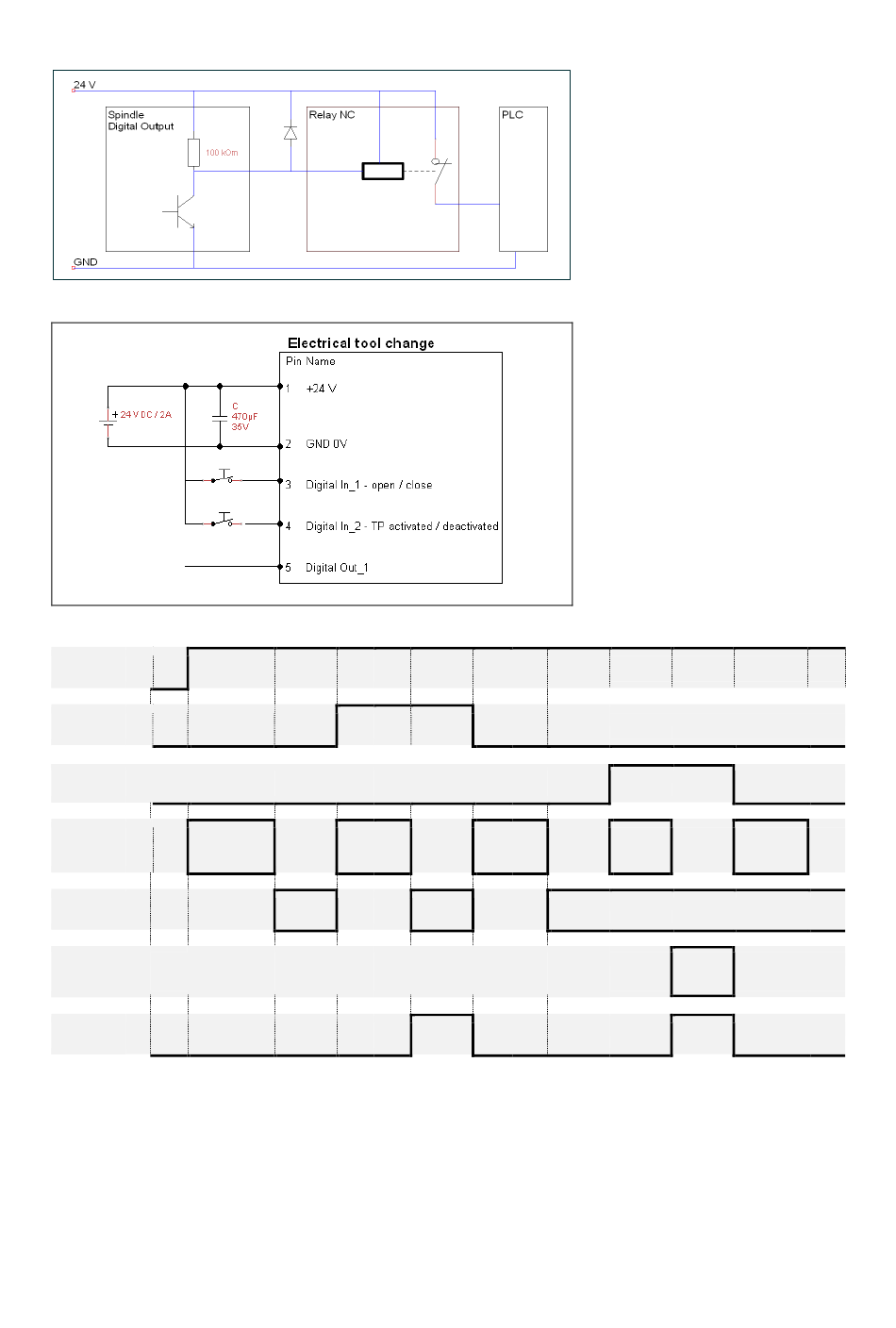

Possible connection diagram for digital output
Connection example electrical tool change and touch probe (TP)
Sequence plan electrical tool change and touch probe (TP)
Switch-on 1
24 V DC 0
Digital 1
In_1 0
Digital 1
In_2 0
Process
Adjustment
1.5 sec
Clamping
status
Touch probe (TP)
status
Digital 1
Out_1* 0
*Behaviour according to possible connection diagram for digital output with NC relay
Open
collet chuck
1.2 sec
Collet chuck Collet chuck
closed opened
Close
TP activated
collet chuck
0.3 sec
1.2 sec
Collet chuck
closed
TP deactivated
0.3 sec
Electrical
contact
closed
18 (EN)
