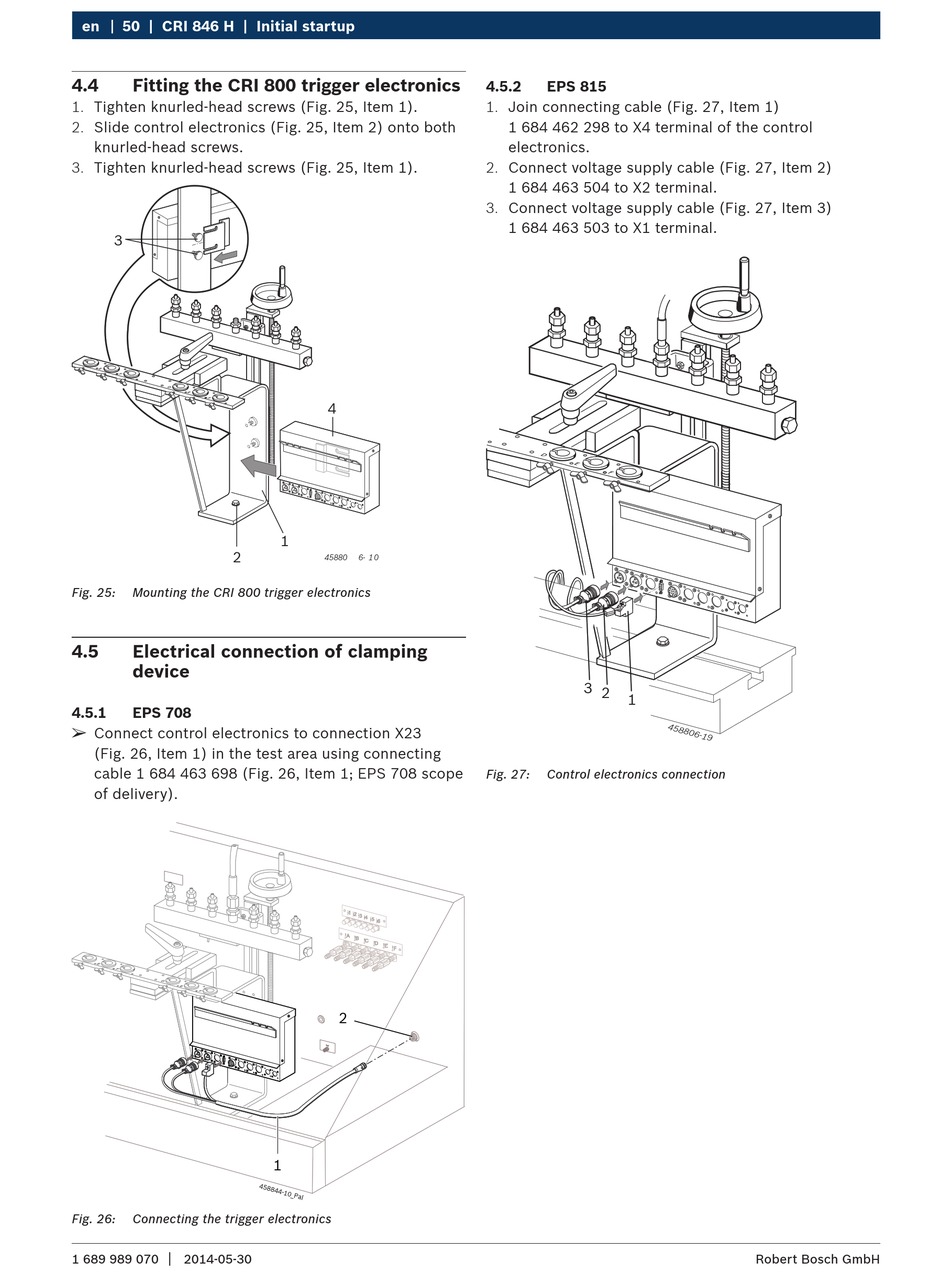

en 50 | CRI 846 H | Initial startup
4.4 Fitting the CRI 800 trigger electronics
1. Tighten knurled-head screws (Fig. 25, Item 1).
2. Slide control electronics (Fig. 25, Item 2) onto both
knurled-head screws.
3. Tighten knurled-head screws (Fig. 25, Item 1).
3
2
Fig. 25: Mounting the CRI 800 trigger electronics
4.5 Electrical connection of clamping
device
4.5.1 EPS 708
¶
Connect control electronics to connection X23
(Fig. 26, Item 1) in the test area using connecting
cable 1 684 463 698 (Fig. 26, Item 1; EPS 708 scope
of delivery).
Fig. 26: Connecting the trigger electronics
|
1 689 989 070 2014-05-30
4
1
45880 6- 1 0
2
1
4.5.2 EPS 815
1. Join connecting cable (Fig. 27, Item 1)
1 684 462 298 to X4 terminal of the control
electronics.
2. Connect voltage supply cable (Fig. 27, Item 2)
1 684 463 504 to X2 terminal.
3. Connect voltage supply cable (Fig. 27, Item 3)
1 684 463 503 to X1 terminal.
3
2
1
Fig. 27: Control electronics connection
