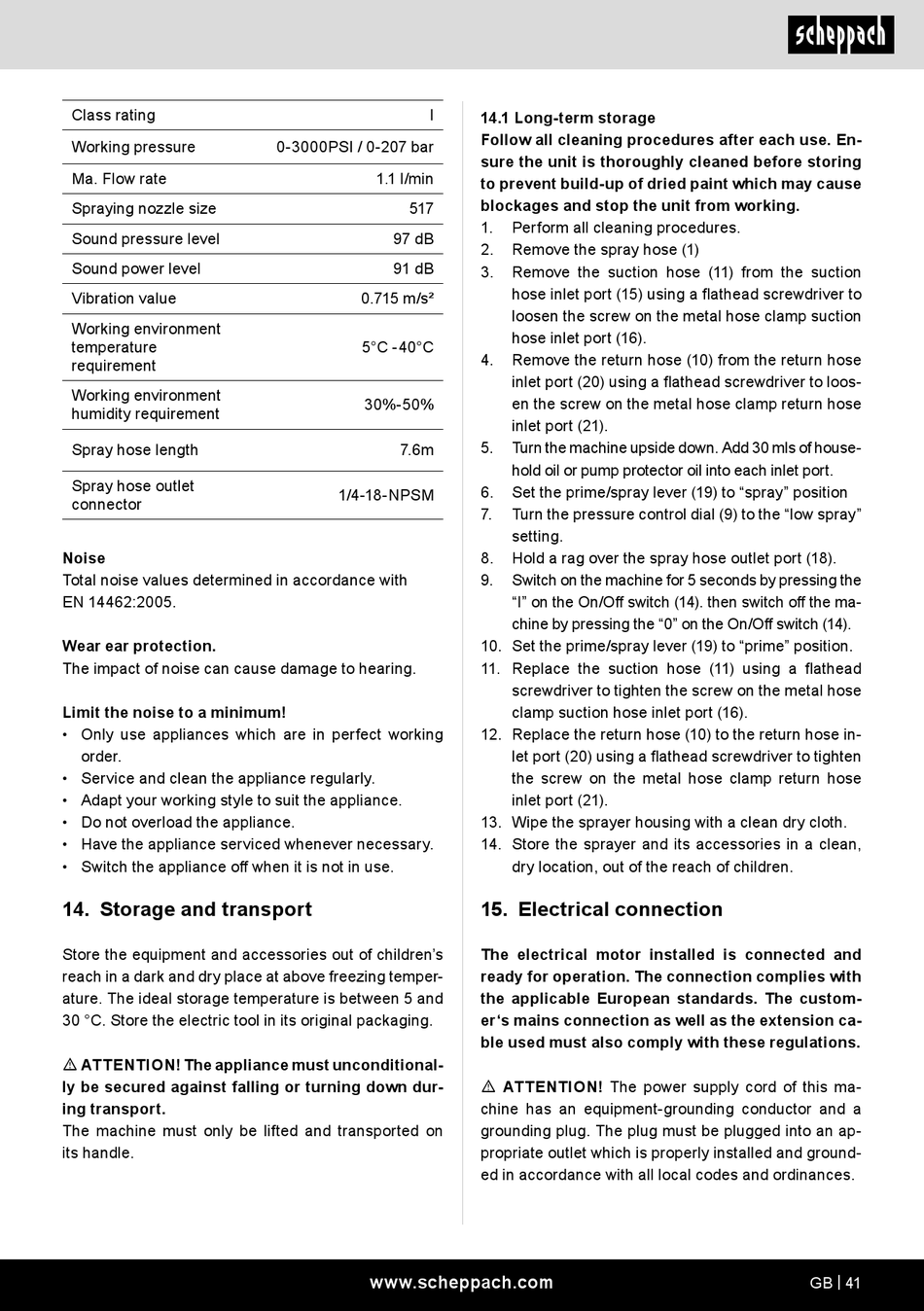

Scheppach ACS3000 Originalbetriebsanleitung Seite 41

Class rating
Working pressure
Ma. Flow rate
Spraying nozzle size
Sound pressure level
Sound power level
Vibration value
Working environment
temperature
requirement
Working environment
humidity requirement
Spray hose length
Spray hose outlet
connector
Noise
Total noise values determined in accordance with
EN 14462:2005.
Wear ear protection.
The impact of noise can cause damage to hearing.
Limit the noise to a minimum!
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
14. Storage and transport
Store the equipment and accessories out of children's
reach in a dark and dry place at above freezing temper-
ature. The ideal storage temperature is between 5 and
30 °C. Store the electric tool in its original packaging.
m ATTENTION! The appliance must unconditional-
ly be secured against falling or turning down dur-
ing transport.
The machine must only be lifted and transported on
its handle.
I
0-3000PSI / 0-207 bar
1.1 l/min
517
97 dB
91 dB
0.715 m/s²
5°C -40°C
30%-50%
7.6m
1/4-18-NPSM
www.scheppach.com
14.1 Long-term storage
Follow all cleaning procedures after each use. En-
sure the unit is thoroughly cleaned before storing
to prevent build-up of dried paint which may cause
blockages and stop the unit from working.
1. Perform all cleaning procedures.
2. Remove the spray hose (1)
3. Remove the suction hose (11) from the suction
hose inlet port (15) using a flathead screwdriver to
loosen the screw on the metal hose clamp suction
hose inlet port (16).
4. Remove the return hose (10) from the return hose
inlet port (20) using a flathead screwdriver to loos-
en the screw on the metal hose clamp return hose
inlet port (21).
5. Turn the machine upside down. Add 30 mls of house-
hold oil or pump protector oil into each inlet port.
6. Set the prime/spray lever (19) to "spray" position
7. Turn the pressure control dial (9) to the "low spray"
setting.
8. Hold a rag over the spray hose outlet port (18).
9. Switch on the machine for 5 seconds by pressing the
"I" on the On/Off switch (14). then switch off the ma-
chine by pressing the "0" on the On/Off switch (14).
10. Set the prime/spray lever (19) to "prime" position.
11. Replace the suction hose (11) using a flathead
screwdriver to tighten the screw on the metal hose
clamp suction hose inlet port (16).
12. Replace the return hose (10) to the return hose in-
let port (20) using a flathead screwdriver to tighten
the screw on the metal hose clamp return hose
inlet port (21).
13. Wipe the sprayer housing with a clean dry cloth.
14. Store the sprayer and its accessories in a clean,
dry location, out of the reach of children.
15. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable European standards. The custom-
er's mains connection as well as the extension ca-
ble used must also comply with these regulations.
m ATTENTION! The power supply cord of this ma-
chine has an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an ap-
propriate outlet which is properly installed and ground-
ed in accordance with all local codes and ordinances.
