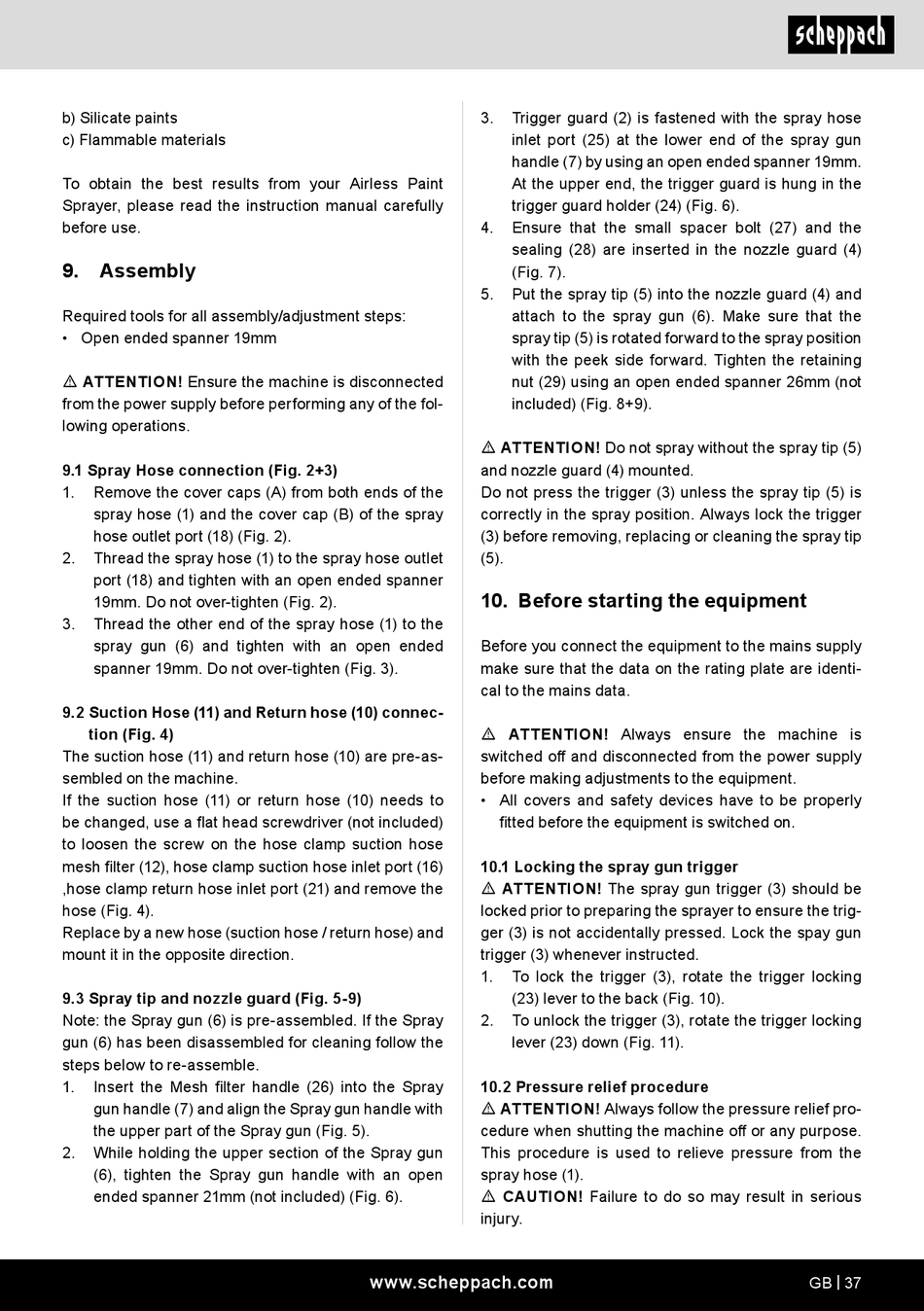

Scheppach ACS3000 Originalbetriebsanleitung Seite 37

b) Silicate paints
c) Flammable materials
To obtain the best results from your Airless Paint
Sprayer, please read the instruction manual carefully
before use.
9. Assembly
Required tools for all assembly/adjustment steps:
• Open ended spanner 19mm
m ATTENTION! Ensure the machine is disconnected
from the power supply before performing any of the fol-
lowing operations.
9.1 Spray Hose connection (Fig. 2+3)
1. Remove the cover caps (A) from both ends of the
spray hose (1) and the cover cap (B) of the spray
hose outlet port (18) (Fig. 2).
2. Thread the spray hose (1) to the spray hose outlet
port (18) and tighten with an open ended spanner
19mm. Do not over-tighten (Fig. 2).
3. Thread the other end of the spray hose (1) to the
spray gun (6) and tighten with an open ended
spanner 19mm. Do not over-tighten (Fig. 3).
9.2 Suction Hose (11) and Return hose (10) connec-
tion (Fig. 4)
The suction hose (11) and return hose (10) are pre-as-
sembled on the machine.
If the suction hose (11) or return hose (10) needs to
be changed, use a flat head screwdriver (not included)
to loosen the screw on the hose clamp suction hose
mesh filter (12), hose clamp suction hose inlet port (16)
,hose clamp return hose inlet port (21) and remove the
hose (Fig. 4).
Replace by a new hose (suction hose / return hose) and
mount it in the opposite direction.
9.3 Spray tip and nozzle guard (Fig. 5-9)
Note: the Spray gun (6) is pre-assembled. If the Spray
gun (6) has been disassembled for cleaning follow the
steps below to re-assemble.
1. Insert the Mesh filter handle (26) into the Spray
gun handle (7) and align the Spray gun handle with
the upper part of the Spray gun (Fig. 5).
2. While holding the upper section of the Spray gun
(6), tighten the Spray gun handle with an open
ended spanner 21mm (not included) (Fig. 6).
3. Trigger guard (2) is fastened with the spray hose
inlet port (25) at the lower end of the spray gun
handle (7) by using an open ended spanner 19mm.
At the upper end, the trigger guard is hung in the
trigger guard holder (24) (Fig. 6).
4. Ensure that the small spacer bolt (27) and the
sealing (28) are inserted in the nozzle guard (4)
(Fig. 7).
5. Put the spray tip (5) into the nozzle guard (4) and
attach to the spray gun (6). Make sure that the
spray tip (5) is rotated forward to the spray position
with the peek side forward. Tighten the retaining
nut (29) using an open ended spanner 26mm (not
included) (Fig. 8+9).
m ATTENTION! Do not spray without the spray tip (5)
and nozzle guard (4) mounted.
Do not press the trigger (3) unless the spray tip (5) is
correctly in the spray position. Always lock the trigger
(3) before removing, replacing or cleaning the spray tip
(5).
10. Before starting the equipment
Before you connect the equipment to the mains supply
make sure that the data on the rating plate are identi-
cal to the mains data.
m ATTENTION! Always ensure the machine is
switched off and disconnected from the power supply
before making adjustments to the equipment.
• All covers and safety devices have to be properly
fitted before the equipment is switched on.
10.1 Locking the spray gun trigger
m ATTENTION! The spray gun trigger (3) should be
locked prior to preparing the sprayer to ensure the trig-
ger (3) is not accidentally pressed. Lock the spay gun
trigger (3) whenever instructed.
1. To lock the trigger (3), rotate the trigger locking
(23) lever to the back (Fig. 10).
2. To unlock the trigger (3), rotate the trigger locking
lever (23) down (Fig. 11).
10.2 Pressure relief procedure
m ATTENTION! Always follow the pressure relief pro-
cedure when shutting the machine off or any purpose.
This procedure is used to relieve pressure from the
spray hose (1).
m CAUTION! Failure to do so may result in serious
injury.
