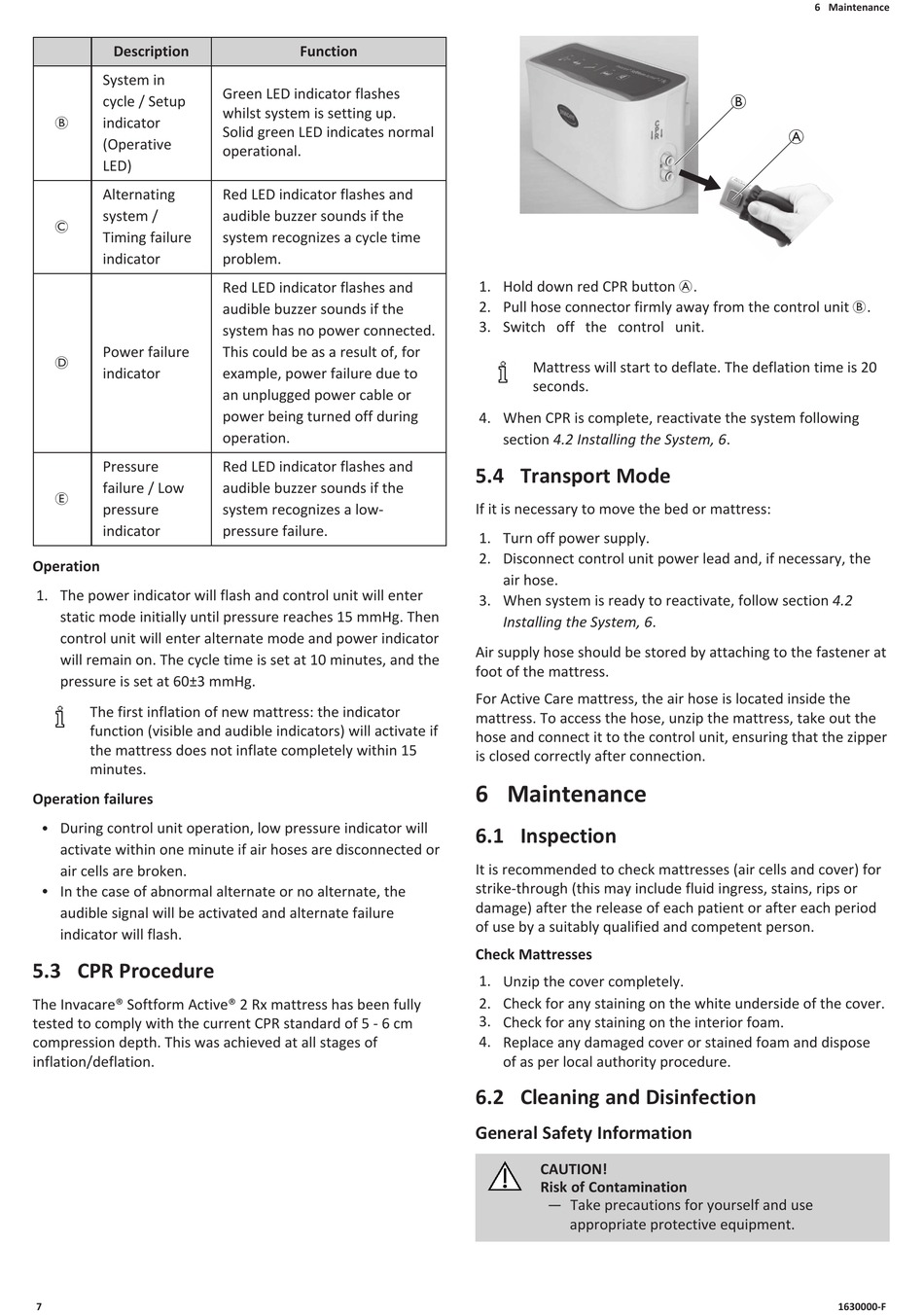

Invacare Softform Active 2 Rx Gebrauchsanweisung Seite 7

Description
System in
cycle / Setup
B indicator
(Operative
LED)
Alternating
system /
C
Timing failure
indicator
Power failure
D
indicator
Pressure
failure / Low
E
pressure
indicator
Operation
1. The power indicator will flash and control unit will enter
static mode initially until pressure reaches 15 mmHg. Then
control unit will enter alternate mode and power indicator
will remain on. The cycle time is set at 10 minutes, and the
pressure is set at 60±3 mmHg.
The first inflation of new mattress: the indicator
function (visible and audible indicators) will activate if
the mattress does not inflate completely within 15
minutes.
Operation failures
During control unit operation, low pressure indicator will
l
activate within one minute if air hoses are disconnected or
air cells are broken.
In the case of abnormal alternate or no alternate, the
l
audible signal will be activated and alternate failure
indicator will flash.
5.3 CPR Procedure
The Invacare® Softform Active® 2 Rx mattress has been fully
tested to comply with the current CPR standard of 5 - 6 cm
compression depth. This was achieved at all stages of
inflation/deflation.
7
Function
Green LED indicator flashes
whilst system is setting up.
Solid green LED indicates normal
operational.
Red LED indicator flashes and
audible buzzer sounds if the
system recognizes a cycle time
problem.
Red LED indicator flashes and
audible buzzer sounds if the
system has no power connected.
This could be as a result of, for
example, power failure due to
an unplugged power cable or
power being turned off during
operation.
Red LED indicator flashes and
audible buzzer sounds if the
system recognizes a low-
pressure failure.
1. Hold down red CPR button A.
2. Pull hose connector firmly away from the control unit B.
3. Switch off the control unit.
Mattress will start to deflate. The deflation time is 20
seconds.
4. When CPR is complete, reactivate the system following
section 4.2 Installing the System, 6.
5.4 Transport Mode
If it is necessary to move the bed or mattress:
1. Turn off power supply.
2. Disconnect control unit power lead and, if necessary, the
air hose.
3. When system is ready to reactivate, follow section 4.2
Installing the System, 6.
Air supply hose should be stored by attaching to the fastener at
foot of the mattress.
For Active Care mattress, the air hose is located inside the
mattress. To access the hose, unzip the mattress, take out the
hose and connect it to the control unit, ensuring that the zipper
is closed correctly after connection.
6 Maintenance
6.1 Inspection
It is recommended to check mattresses (air cells and cover) for
strike-through (this may include fluid ingress, stains, rips or
damage) after the release of each patient or after each period
of use by a suitably qualified and competent person.
Check Mattresses
1. Unzip the cover completely.
2. Check for any staining on the white underside of the cover.
3. Check for any staining on the interior foam.
4. Replace any damaged cover or stained foam and dispose
of as per local authority procedure.
6.2 Cleaning and Disinfection
General Safety Information
CAUTION!
Risk of Contamination
— Take precautions for yourself and use
appropriate protective equipment.
6 Maintenance
1630000-F
