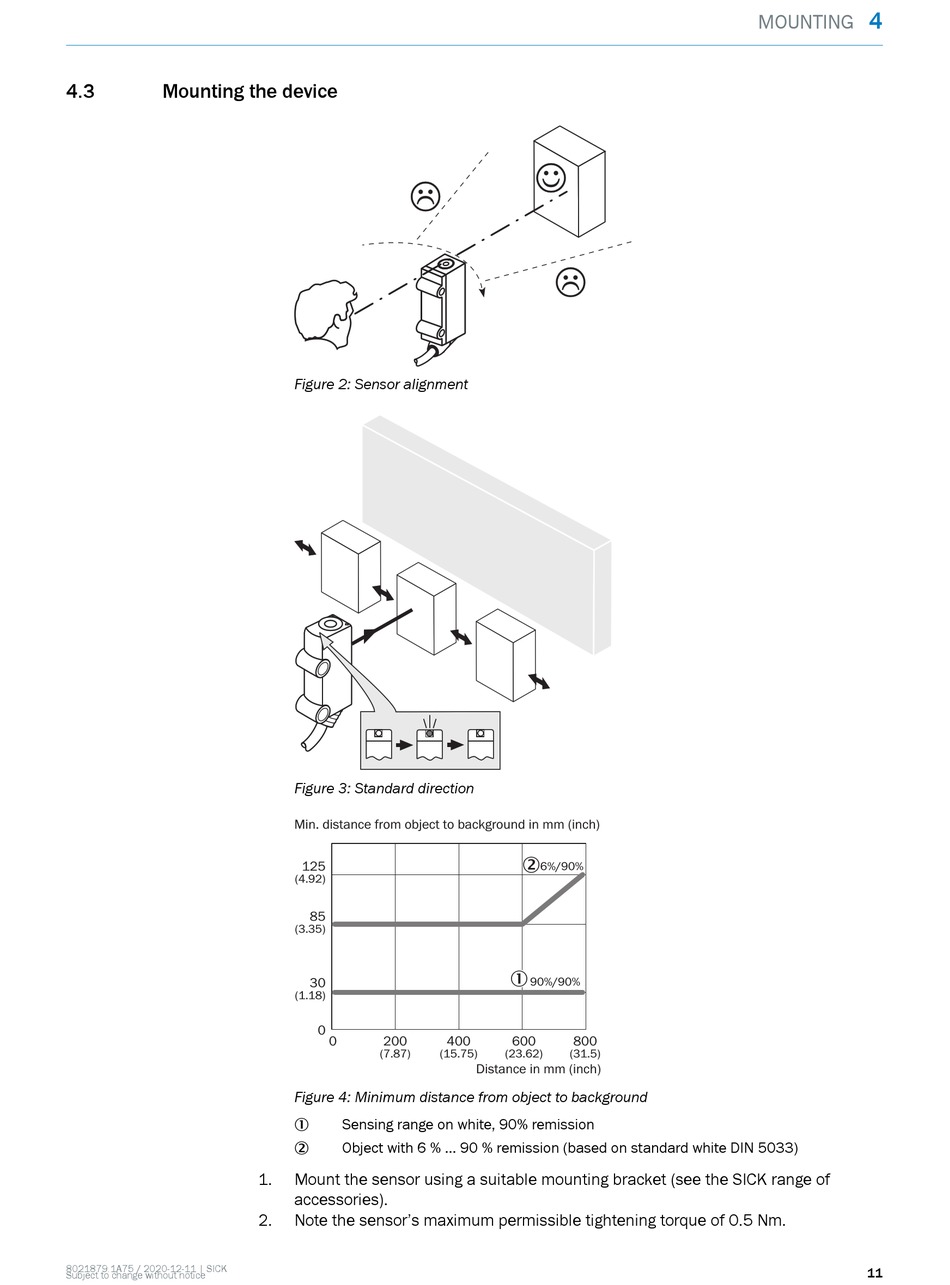

4.3 Mounting the device
8021879.1A75 / 2020-12-11 | SICK
Subject to change without notice
L
Figure 2: Sensor alignment
Figure 3: Standard direction
Min. distance from object to background in mm (inch)
125
(4.92)
85
(3.35)
30
(1.18)
0
0 200
(7.87)
Figure 4: Minimum distance from object to background
Sensing range on white, 90% remission
1
Object with 6 % ... 90 % remission (based on standard white DIN 5033)
2
1. Mount the sensor using a suitable mounting bracket (see the SICK range of
accessories).
2. Note the sensor's maximum permissible tightening torque of 0.5 Nm.
2
6%/90%
1
90%/90%
400 600 800
(15.75) (23.62) (31.5)
Distance in mm (inch)
4
MOUNTING
11
