PRODUCT DESCRIPTION
3 Product description
3.1 Device view
4 Mounting
4.1 Scope of delivery
4.2 Mounting requirements
10
1
2
3
4

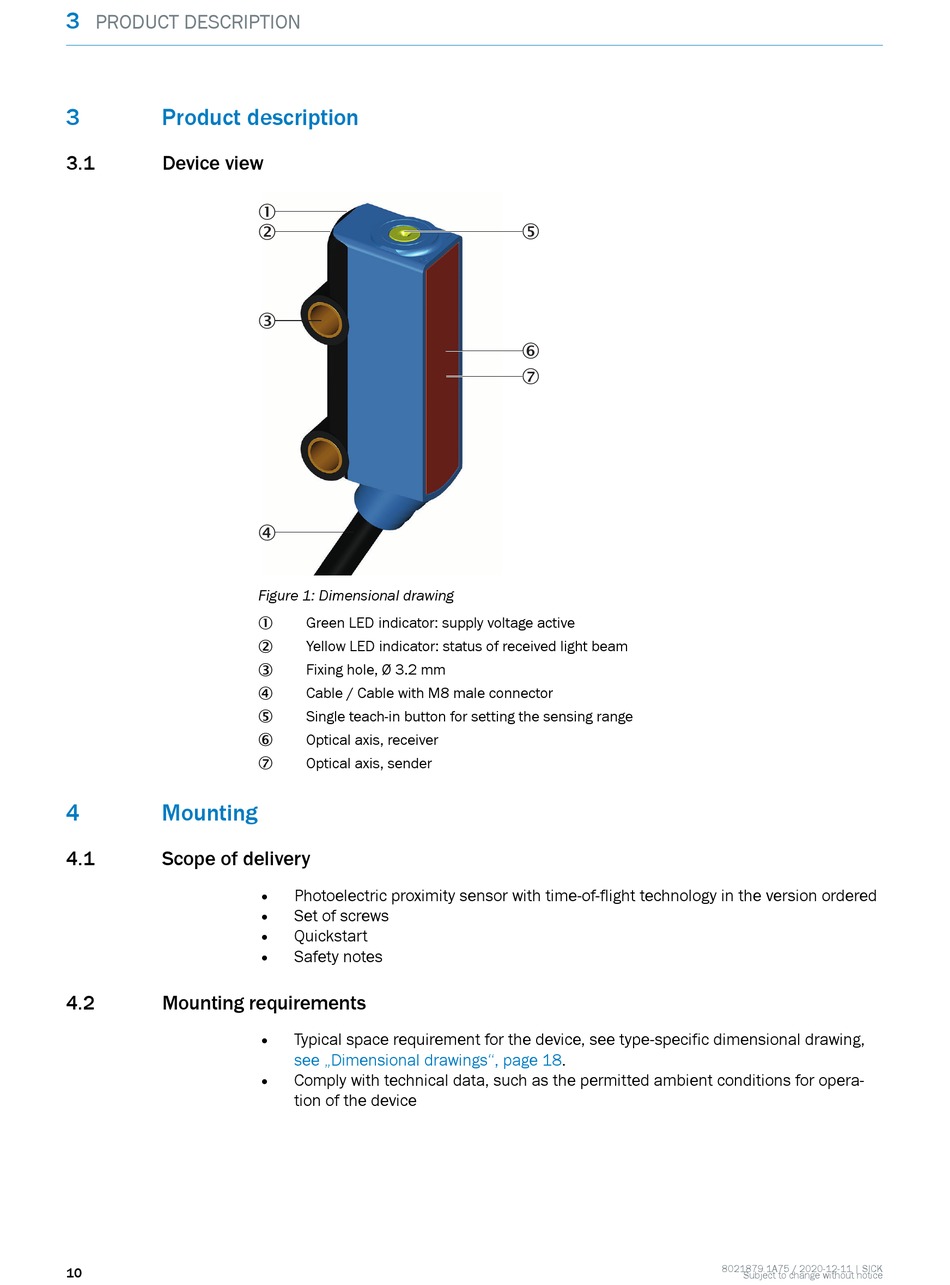

Figure 1: Dimensional drawing
Green LED indicator: supply voltage active
1
Yellow LED indicator: status of received light beam
2
Fixing hole, Ø 3.2 mm
3
Cable / Cable with M8 male connector
4
Single teach-in button for setting the sensing range
5
Optical axis, receiver
6
Optical axis, sender
7
• Photoelectric proximity sensor with time-of-flight technology in the version ordered
•
Set of screws
• Quickstart
• Safety notes
• Typical space requirement for the device, see type-specific dimensional drawing,
see „Dimensional drawings", page
• Comply with technical data, such as the permitted ambient conditions for opera‐
tion of the device
5
6
7
18.
