TECHNICAL DATA
5)
Jitter± 20ms
6)
A = U
-connections reverse polarity protected
B
B = inputs and output reverse-polarity protected
D = outputs overcurrent and short-circuit protected
7)
As of T
= 45°C a max. output current of I
U
8)
NPN off-state current I
<= 0.6 mA.
R
9)
Footnote teach-in offset 15 mm
10)
SIO Direct: Sensor operation in standard I / O mode without IO-Link communication and without the use of sensor-internal logic or time
parameters (set to "direct" / "inactive").
11)
SIO Logic: Sensor operation in standard I / O mode without IO-Link communication. Use of sensor-internal logic or time parameters,
additional automation functions.
12)
IOL: sensor operation with full IO-Link communication and use of logic, time and automation function parameters.
10.2
Dimensional drawings
18
= 50 mA is permissible. Below T
max
8
(0.31)
1
2
3
(0.12)
9
M8 x 1

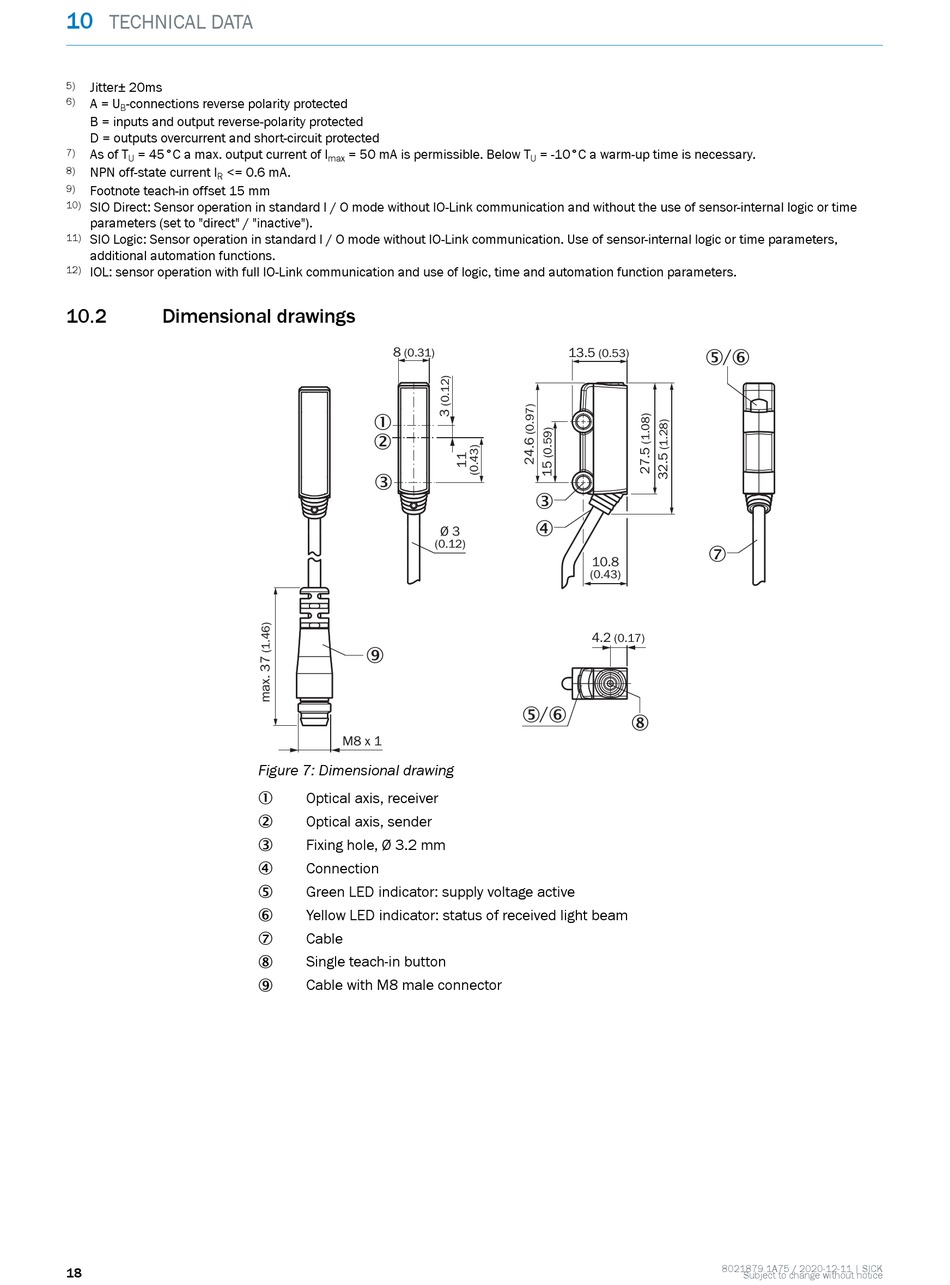

Figure 7: Dimensional drawing
Optical axis, receiver
1
Optical axis, sender
2
Fixing hole, Ø 3.2 mm
3
Connection
4
Green LED indicator: supply voltage active
5
Yellow LED indicator: status of received light beam
6
Cable
7
Single teach-in button
8
Cable with M8 male connector
9
= -10°C a warm-up time is necessary.
U
13.5
(0.53)
3
4
Ø 3
10.8
(0.43)
4.2
(0.17)
5 / 6
5 / 6
7
8
