Modbus TCP/IP

Port-Statistik
Adresse Men Beschreibung
ge
0800 1 Port1 - Number of bytes
received
0802 1 Port1 - Number of bytes sent 0
0804 1 Port1 - Number of frames
received
0806 1 Port1 - Number of frames
sent
0808 1 Port1 - Total bytes received 0
080A 1 Port1 - Total frames
received
080C 1 Port1 - Number of broadcast
frames received
080E 1 Port1 - Number of multicast
frames received
0810 1 Port1 - Number of frames
with CRC error
0812 1 Port1 - Number of oversized
frames received
0814 1 Port1 - Number of bad
fragments rcvd(<64 bytes)
0816 1 Port1 - Number of jabber
frames received
0818 1 Port1 - Number of collisions
occurred
081A 1 Port1 - Number of late
collisions occurred
081C 1 Port1 - Number of 64-byte
frames rcvd/sent
081E 1 Port1 - Number of 65-127
byte frames rcvd/sent
0820 1 Port1 - Number of 128-255
byte frames rcvd/sent
0822 1 Port1 - Number of 256-511
byte frames rcvd/sent
0824 1 Port1 - Number of 512-1023
byte frames rcvd/sent
0826 1 Port1 - Number of 1023-MAX
byte frames rcvd/sent
0828 1 Port1 - Number of Mac Error
Packets
082A 1 Port1 - Number of dropped
received packets

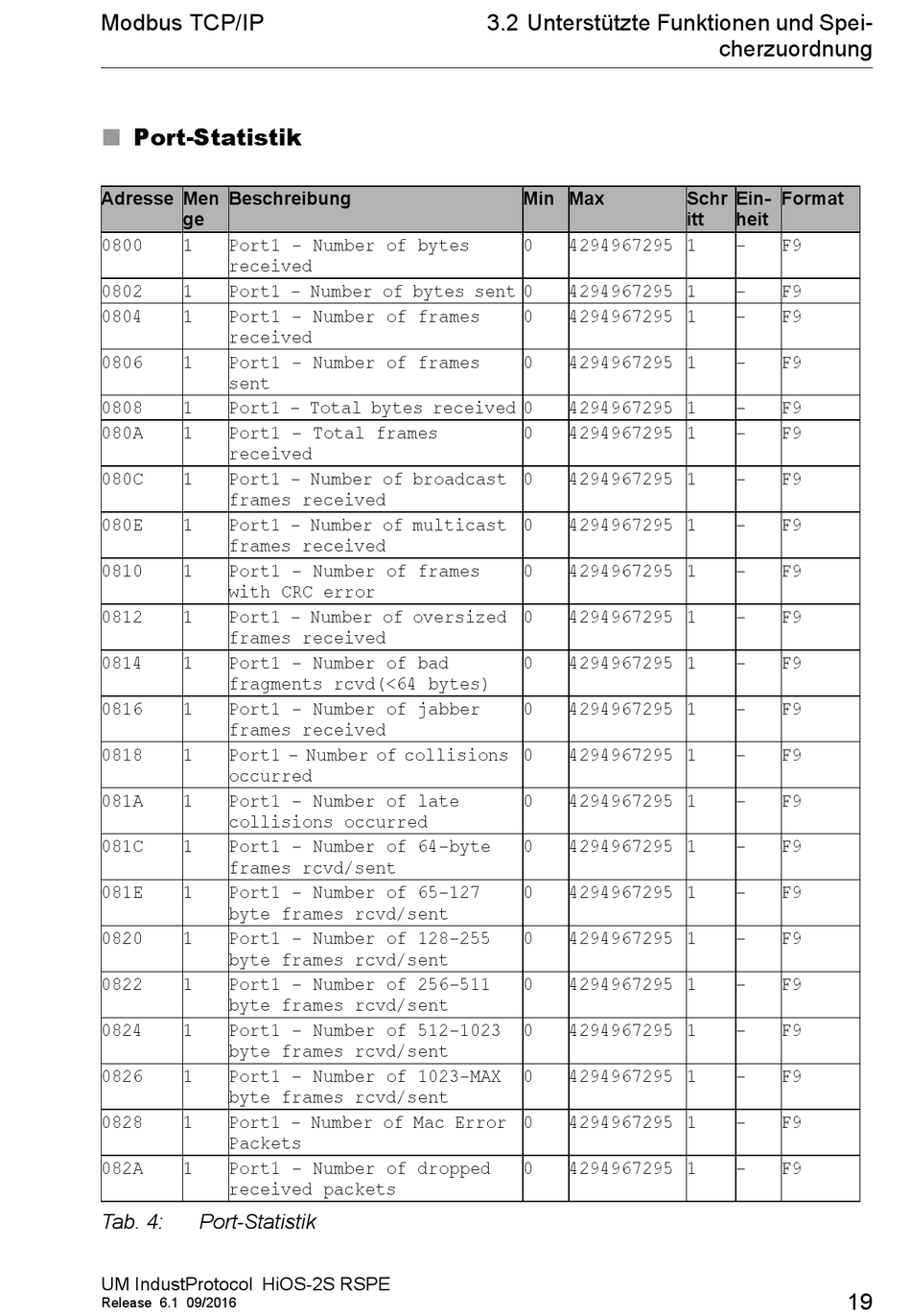

Tab. 4: Port-Statistik
