20
Inbetriebnahme

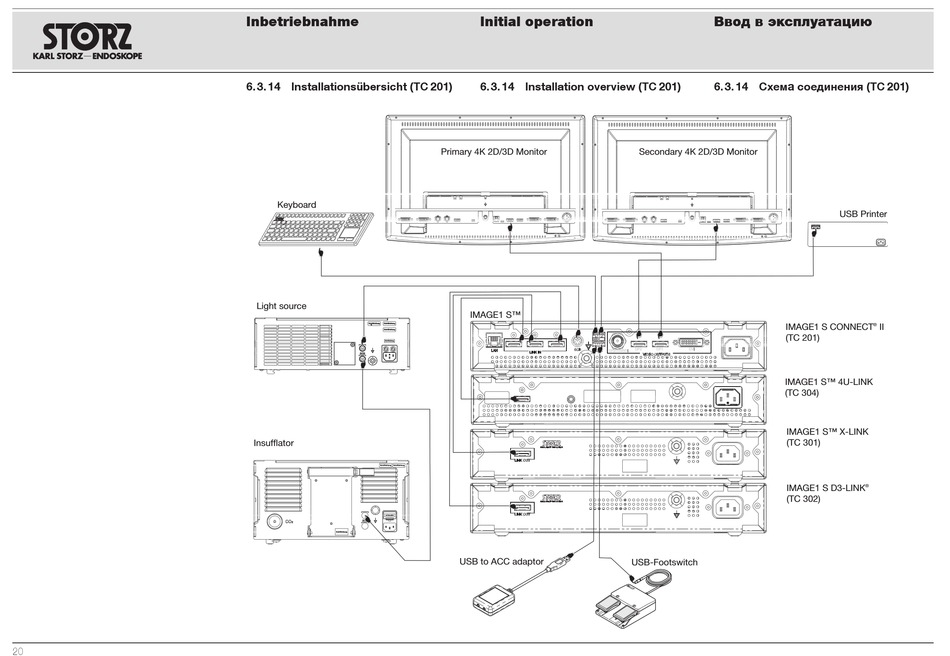

6. 3. 14 Installationsübersicht (TC 201)
Keyboard
Light source
Insufflator
Initial operation
6. 3. 14 Installation overview (TC 201)
Primary 4K 2D/3D Monitor
IMAGE1 S™
USB to ACC adaptor
Ввод в эксплуатацию
6. 3. 14 Схема соединения (TC 201)
Secondary 4K 2D/3D Monitor
IMAGE1 S CONNECTr II
(TC 201)
IMAGE1 S™ 4U-LINK
(TC 304)
IMAGE1 S™ X-LINK
(TC 301)
IMAGE1 S D3-LINKr
(TC 302)
USB-Footswitch
USB Printer
