EcoPro/EcoUp
8
5
9
7

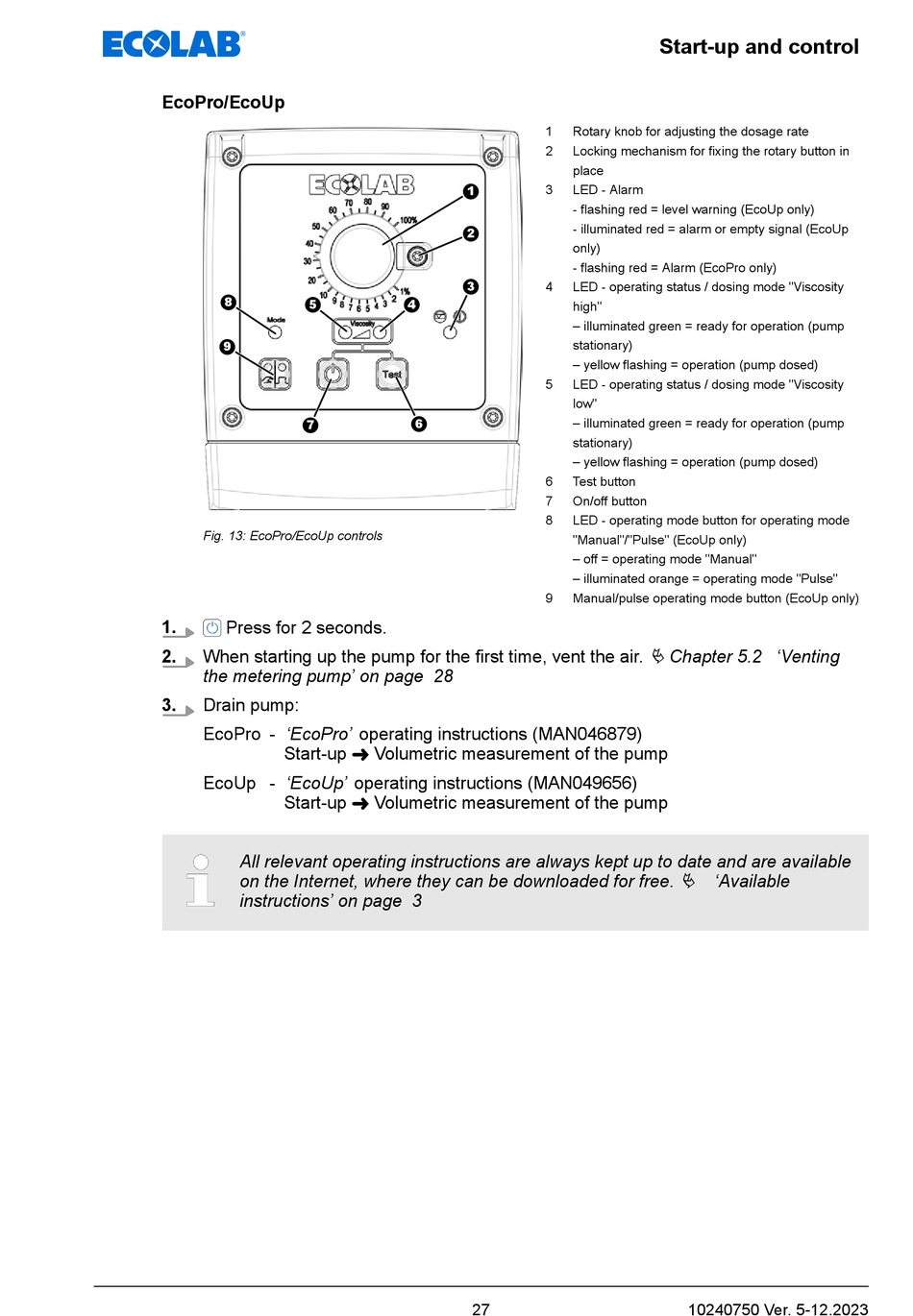

Fig. 13: EcoPro/EcoUp controls
1.
Press for 2 seconds.
2. When starting up the pump for the first time, vent the air.
the metering pump' on page 28
3. Drain pump:
EcoPro - 'EcoPro' operating instructions (MAN046879)
Start-up Ü Volumetric measurement of the pump
EcoUp - 'EcoUp' operating instructions (MAN049656)
Start-up Ü Volumetric measurement of the pump
All relevant operating instructions are always kept up to date and are available
on the Internet, where they can be downloaded for free.
instructions' on page 3
1 Rotary knob for adjusting the dosage rate
2 Locking mechanism for fixing the rotary button in
place
1
3 LED - Alarm
- flashing red = level warning (EcoUp only)
- illuminated red = alarm or empty signal (EcoUp
2
only)
- flashing red = Alarm (EcoPro only)
3
4 LED - operating status / dosing mode "Viscosity
4
high"
– illuminated green = ready for operation (pump
stationary)
– yellow flashing = operation (pump dosed)
5 LED - operating status / dosing mode "Viscosity
low"
6
– illuminated green = ready for operation (pump
stationary)
– yellow flashing = operation (pump dosed)
6 Test button
7 On/off button
8 LED - operating mode button for operating mode
"Manual"/"Pulse" (EcoUp only)
– off = operating mode "Manual"
– illuminated orange = operating mode "Pulse"
9 Manual/pulse operating mode button (EcoUp only)
27
Start-up and control
Ä Chapter 5.2 'Venting
Ä
'Available
