Tabletop mounting
2
1

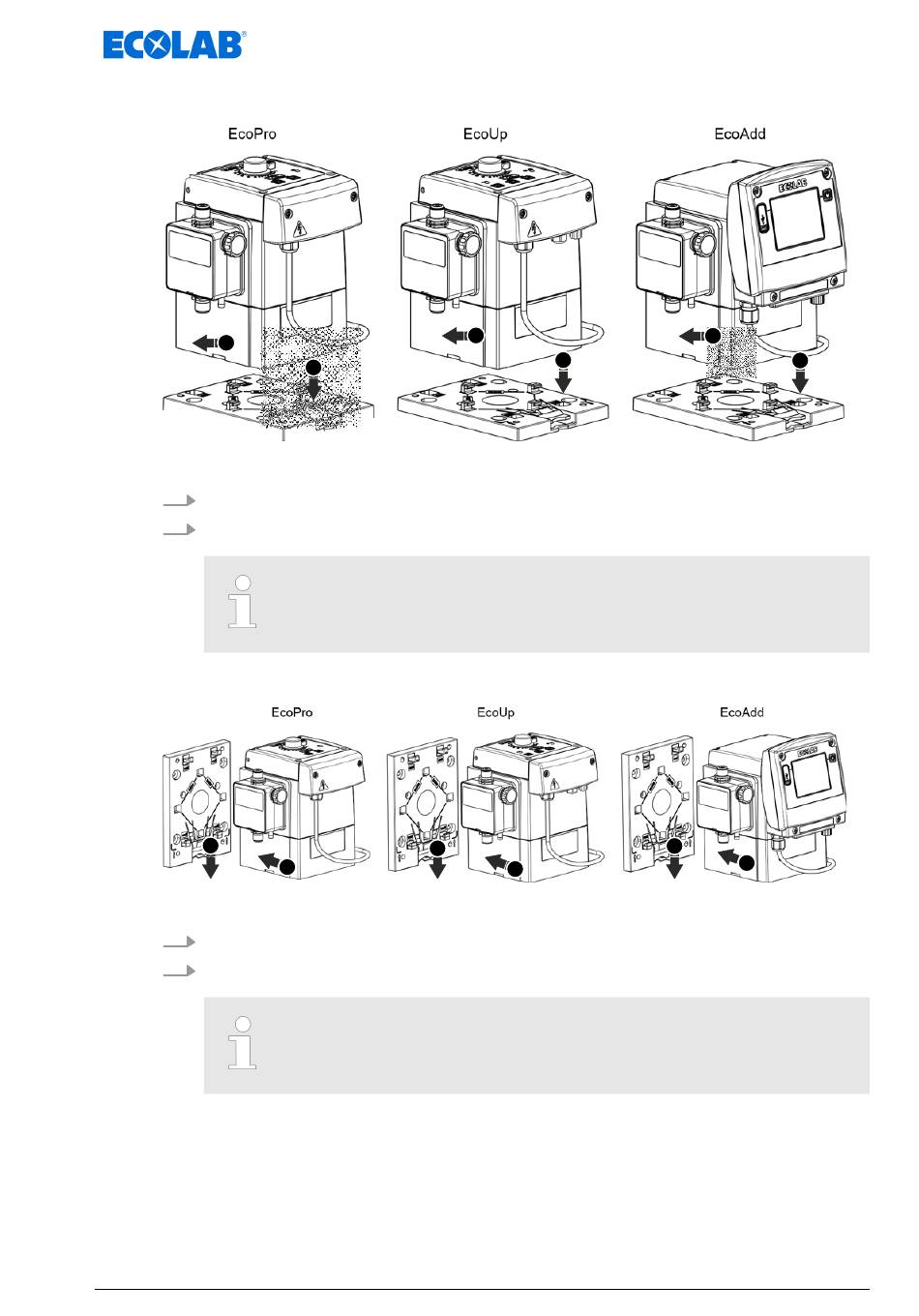

Fig. 4: Table mounting (upright)
1. Place the pump on the mounting plate.
2. Slide the pump backwards into the mounting plate until it engages with an audible
click.
Check that the pump is secure.
Only once the pump has been fixed in place can the connection lines
(hydraulic and electrical) be installed.
Wall mounting
2
1
Fig. 5: Wall mounting (hanging)
1. Place the pump onto the hooks on the mounting plate from above.
2. Slide the pump downwards onto the mounting plate until it engages with an audible
click.
Check that the pump is secure.
Only once the pump has been fixed in place can the connection lines
(hydraulic and electrical) be installed.
