3 Structure
3.1 Metering pump - 'EcoPro' / 'EcoUp'
10
11
12
13
14
15
16

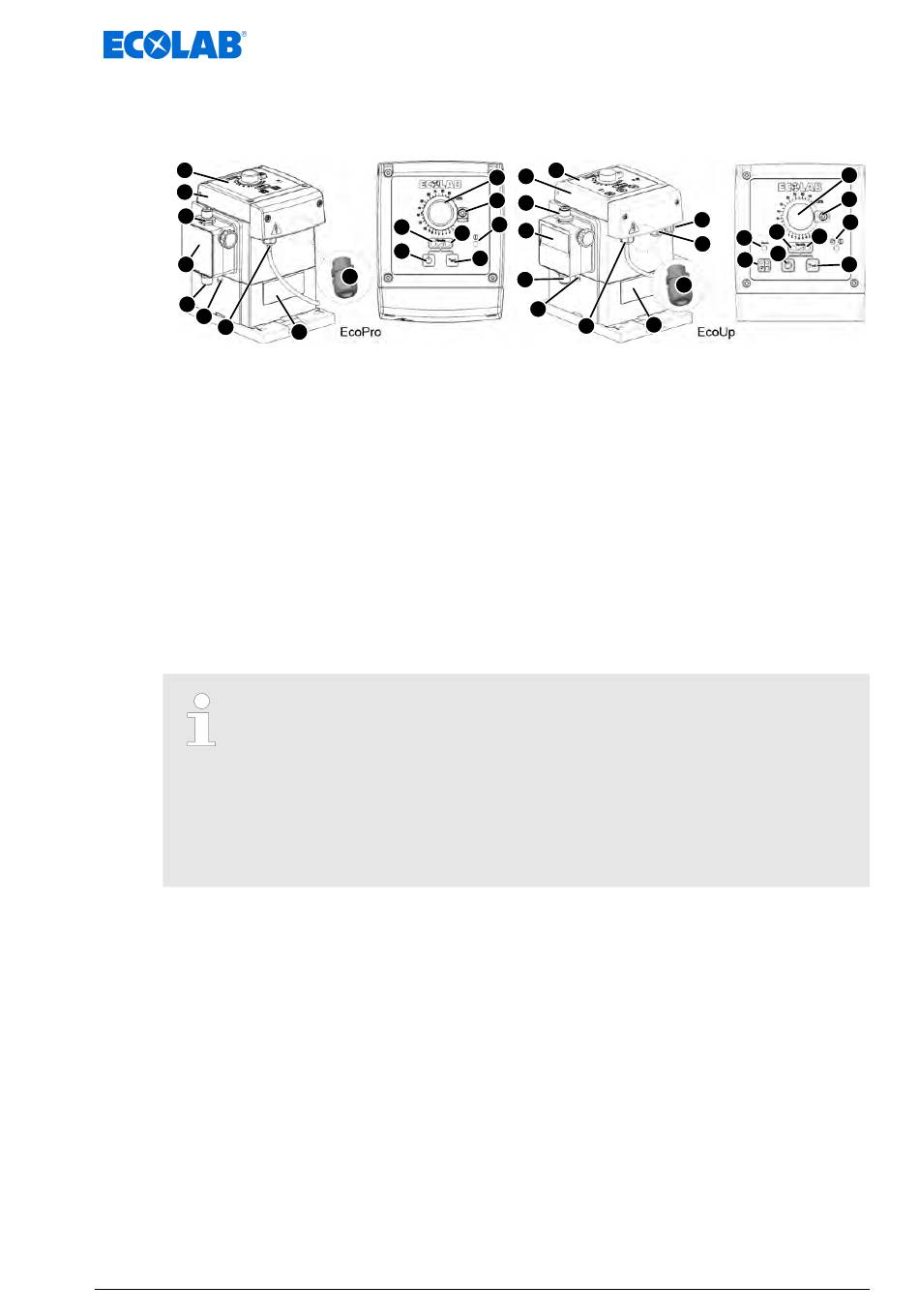

Fig. 1: Construction of 'EcoPro' / 'EcoUp'
1 Rotary knob for adjusting the dosage rate
2 Locking mechanism for fixing the rotary button in place
3 LED - Alarm signal, colour: red flashing
4 LED - Operating status/dosing mode:
ready for operation = green illuminated,
operation (pump running) = flashing yellow,
dosing mode: viscosity low (left LED)
5 LED - Operating status/dosing mode:
ready for operation = green illuminated,
operation (pump running) = flashing yellow,
dosing mode: viscosity high (right LED)
6 On/off switch
7 Test button
8 Mode LED (EcoUp only)
To enable the extension of cable bushings that have not yet been installed, the
pump is provided with corresponding cable glands (M12 x 1.5) ( Fig. 1 , 17 or
18 ).
Permissible external cable diameters for connecting the inputs/outputs:
– AD Ø = 5.1–5.7 mm
Permissible cables:
– LIYY 4x 0.5; LIYY 5 x 0.34; LYCY 2 x 0.34; Ölflex 4 x 0.5
4
5
6
18
20
10
11
1
2
12
3
13
7
14
15
20
16
9 Mode change-over key (EcoUp only)
10 Control panel
11 Rotating control unit
12 Pressure connection / pressure valve
13 Pump head
14 Suction connection / suction valve
15 Air bleed connection
16 Cable bushing for mains cable/power supply
17 Cable bushing for connection: Alarm or dosage rate
output (EcoUp only)
18 Cable bushing for connection: Pulse (EcoUp only) or
enable input
19 Cable bushing for connection: Level input (EcoUp only)
20 Position of type plate
13
Structure
1
2
19
3
4
5
8
18
6
9
7
17
