Assembly and connection
Mounting plate
CAUTION!
The mounting plate must be screwed securely to the relevant surface and the
pump must be locked securely into the mounting plate.
The fastening elements (see
Ä
design ensures that they will only fit into the recess in the mounting plate in
one direction.
It is essential to ensure that the stability of the pump is guaranteed and
that it is not loaded by additional (weight) forces. Additional components
must not be attached to or stored on the pump, and people must not
stand on or attach items to pumps which have already been installed.

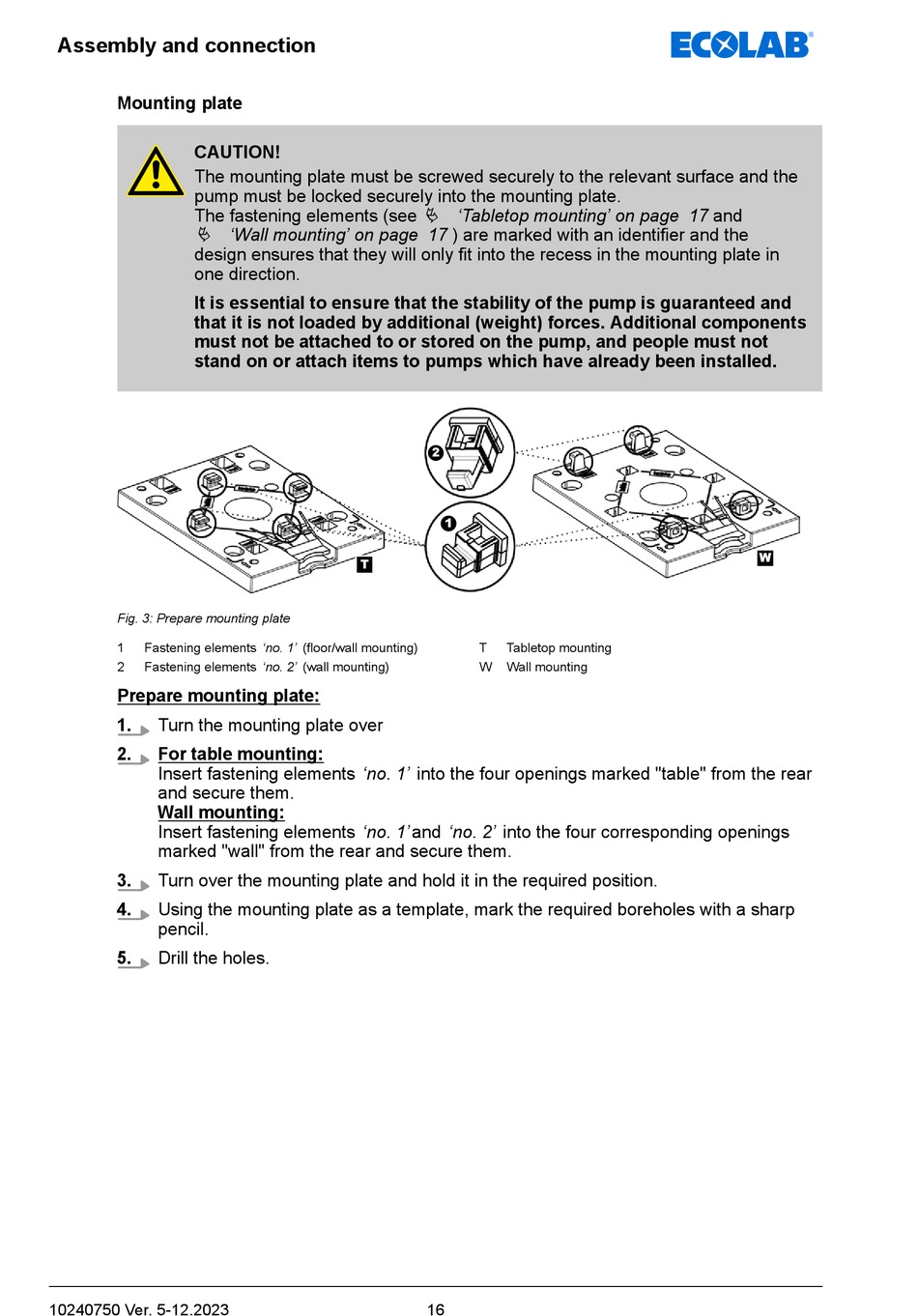

Fig. 3: Prepare mounting plate
1 Fastening elements 'no. 1' (floor/wall mounting)
2 Fastening elements 'no. 2' (wall mounting)
Prepare mounting plate:
1. Turn the mounting plate over
2. For table mounting:
Insert fastening elements 'no. 1' into the four openings marked "table" from the rear
and secure them.
Wall mounting:
Insert fastening elements 'no. 1' and 'no. 2' into the four corresponding openings
marked "wall" from the rear and secure them.
3. Turn over the mounting plate and hold it in the required position.
4. Using the mounting plate as a template, mark the required boreholes with a sharp
pencil.
5. Drill the holes.
10240750 Ver. 5-12.2023
'Wall mounting' on page 17 ) are marked with an identifier and the
T
Ä
'Tabletop mounting' on page 17 and
2
1
T Tabletop mounting
W Wall mounting
16
W
