Assembly and connection
4.3.3
Electrical installation of 'EcoAdd'

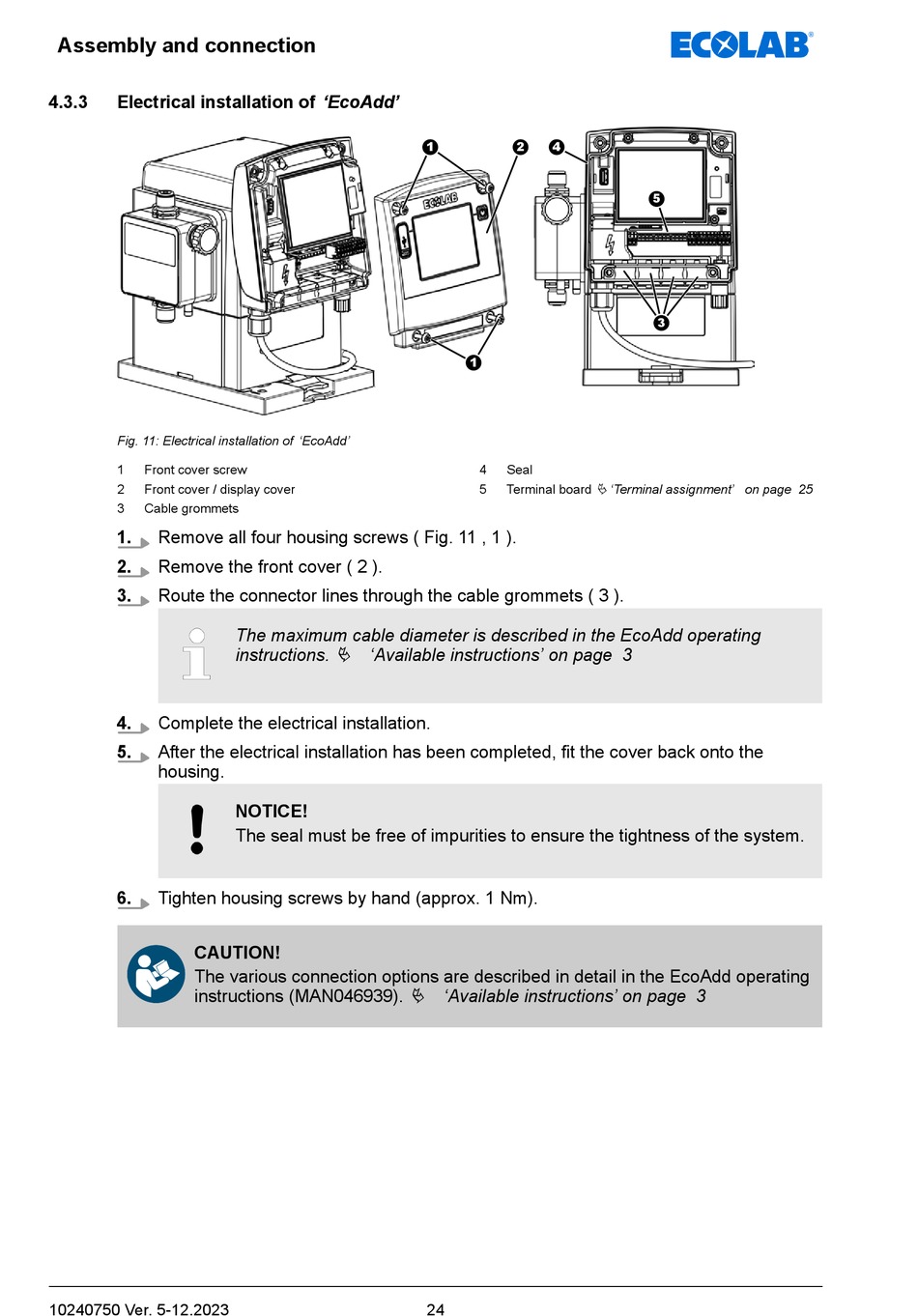

Fig. 11: Electrical installation of 'EcoAdd'
1
Front cover screw
2
Front cover / display cover
3
Cable grommets
1.
Remove all four housing screws ( Fig. 11 , 1 ).
2.
Remove the front cover ( 2 ).
3.
Route the connector lines through the cable grommets ( 3 ).
4.
Complete the electrical installation.
5.
After the electrical installation has been completed, fit the cover back onto the
housing.
6.
Tighten housing screws by hand (approx. 1 Nm).
CAUTION!
The various connection options are described in detail in the EcoAdd operating
instructions (MAN046939).
10240750 Ver. 5-12.2023
The maximum cable diameter is described in the EcoAdd operating
instructions.
Ä
'Available instructions' on page 3
NOTICE!
The seal must be free of impurities to ensure the tightness of the system.
1
2
4
1
4
Seal
5
Terminal board
Ä
'Available instructions' on page 3
24
5
3
Ä 'Terminal assignment' on page 25
