Assembly and connection
4.2 Hydraulic installation
Personnel:
3
5
1
6
7
4

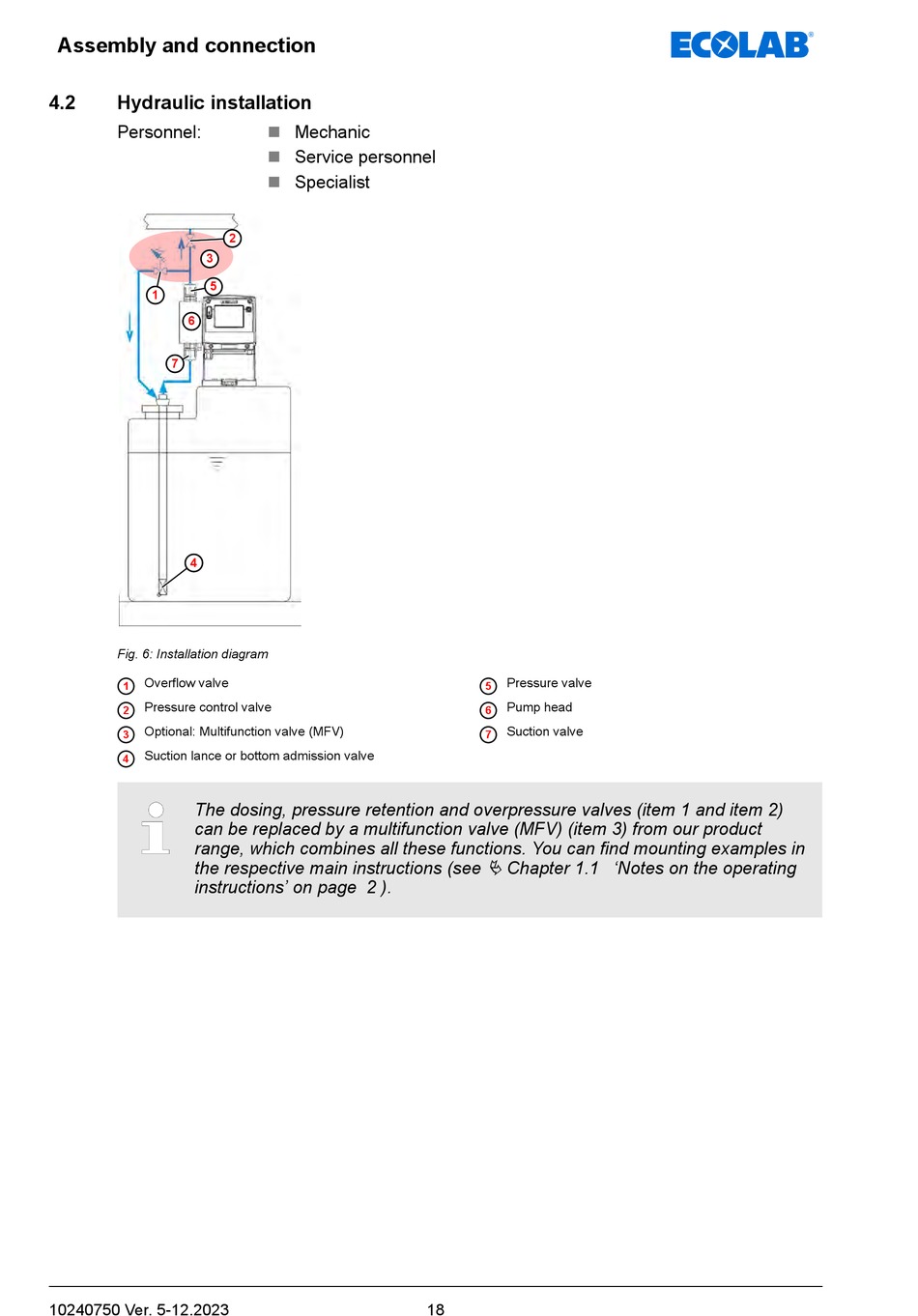

Fig. 6: Installation diagram
Overflow valve
1
Pressure control valve
2
Optional: Multifunction valve (MFV)
3
Suction lance or bottom admission valve
4
The dosing, pressure retention and overpressure valves (item 1 and item 2)
can be replaced by a multifunction valve (MFV) (item 3) from our product
range, which combines all these functions. You can find mounting examples in
the respective main instructions (see
instructions' on page 2 ).
