Adjustments
5.4

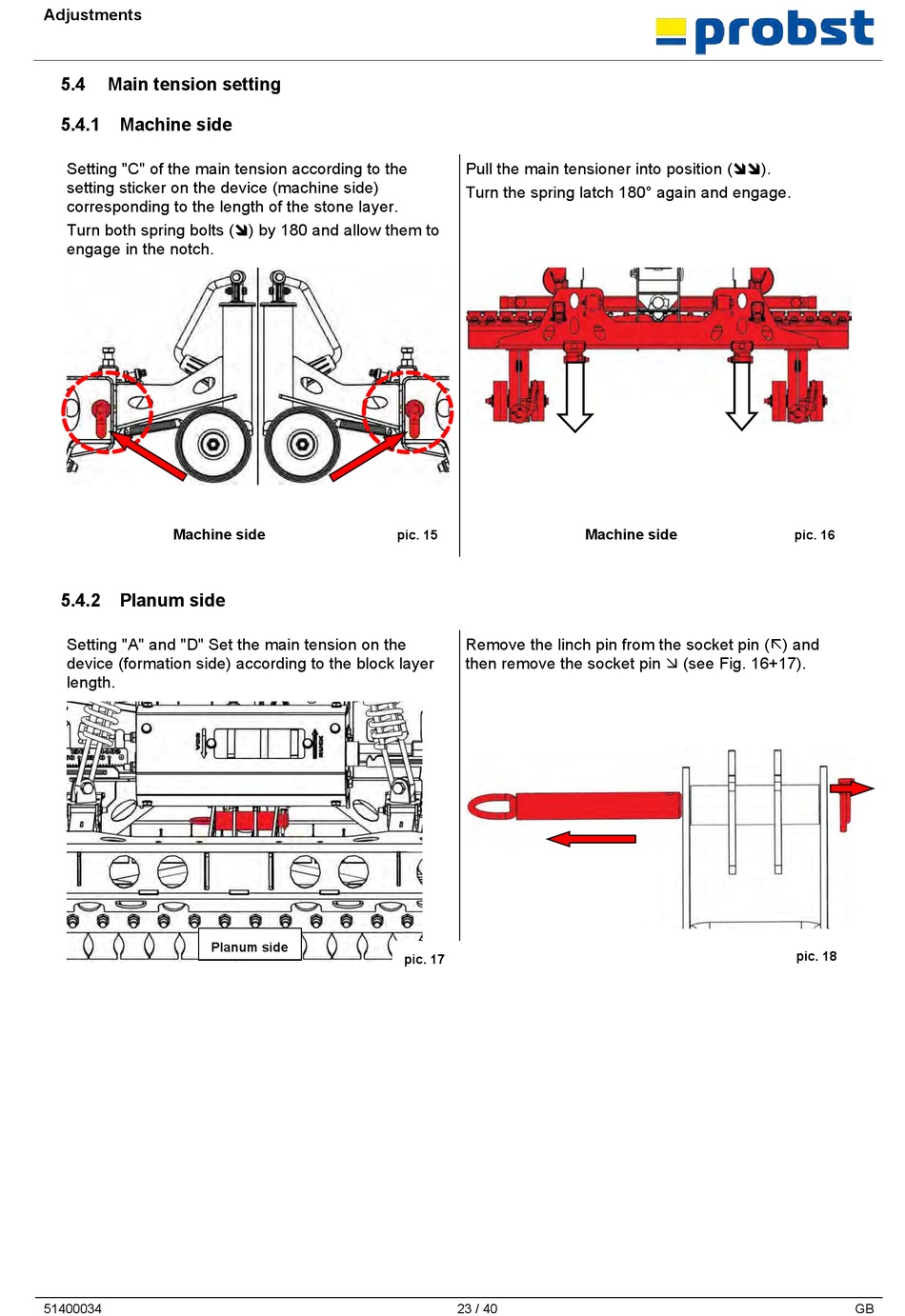

Main tension setting

5.4.1 Machine side

Setting "C" of the main tension according to the
setting sticker on the device (machine side)
corresponding to the length of the stone layer.
Turn both spring bolts () by 180 and allow them to
engage in the notch.
Machine side

5.4.2 Planum side

Setting "A" and "D" Set the main tension on the
device (formation side) according to the block layer
length.
Planum side
51400034
Pull the main tensioner into position ().
Turn the spring latch 180° again and engage.
pic. 15
Remove the linch pin from the socket pin () and
then remove the socket pin  (see Fig. 16+17).
pic. 17
23 / 40
Machine side
pic. 16
pic. 18
