Adjustments

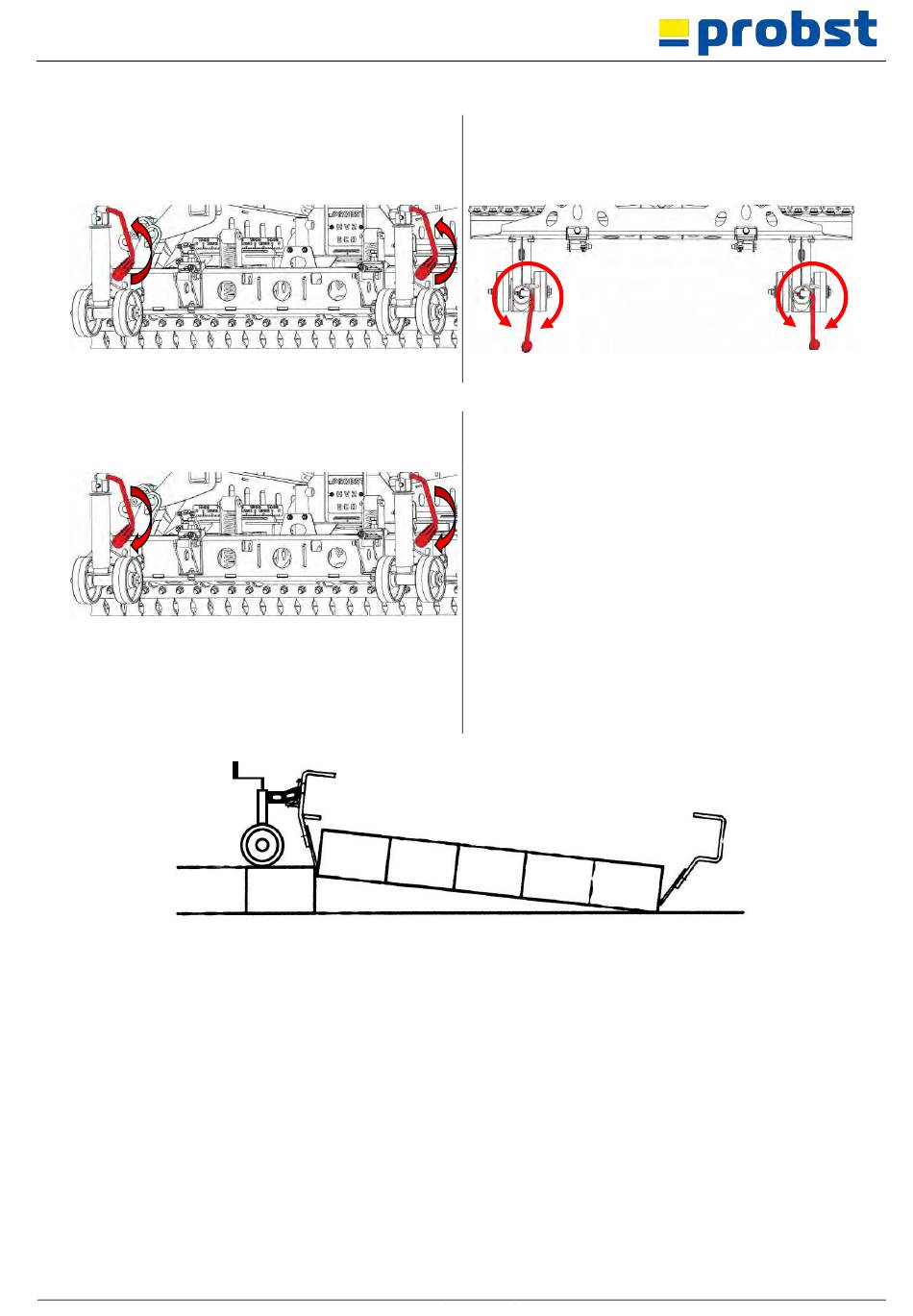

5.3 Setting of set-down rollers
To adjust the set-down rollers, turn both cranks on
the set-down rollers upwards.
Lower both cranks on the lowering rollers again and
secure.
illustration A
51400034
Set the height of both set-down rollers exactly the
same (cranks). Distance between slats to the lower
edge of the block length approx. 50 mm (see
illustration A)
pic. 11
pic. 13
pic. 14
22 / 40
pic. 12
