Assembly

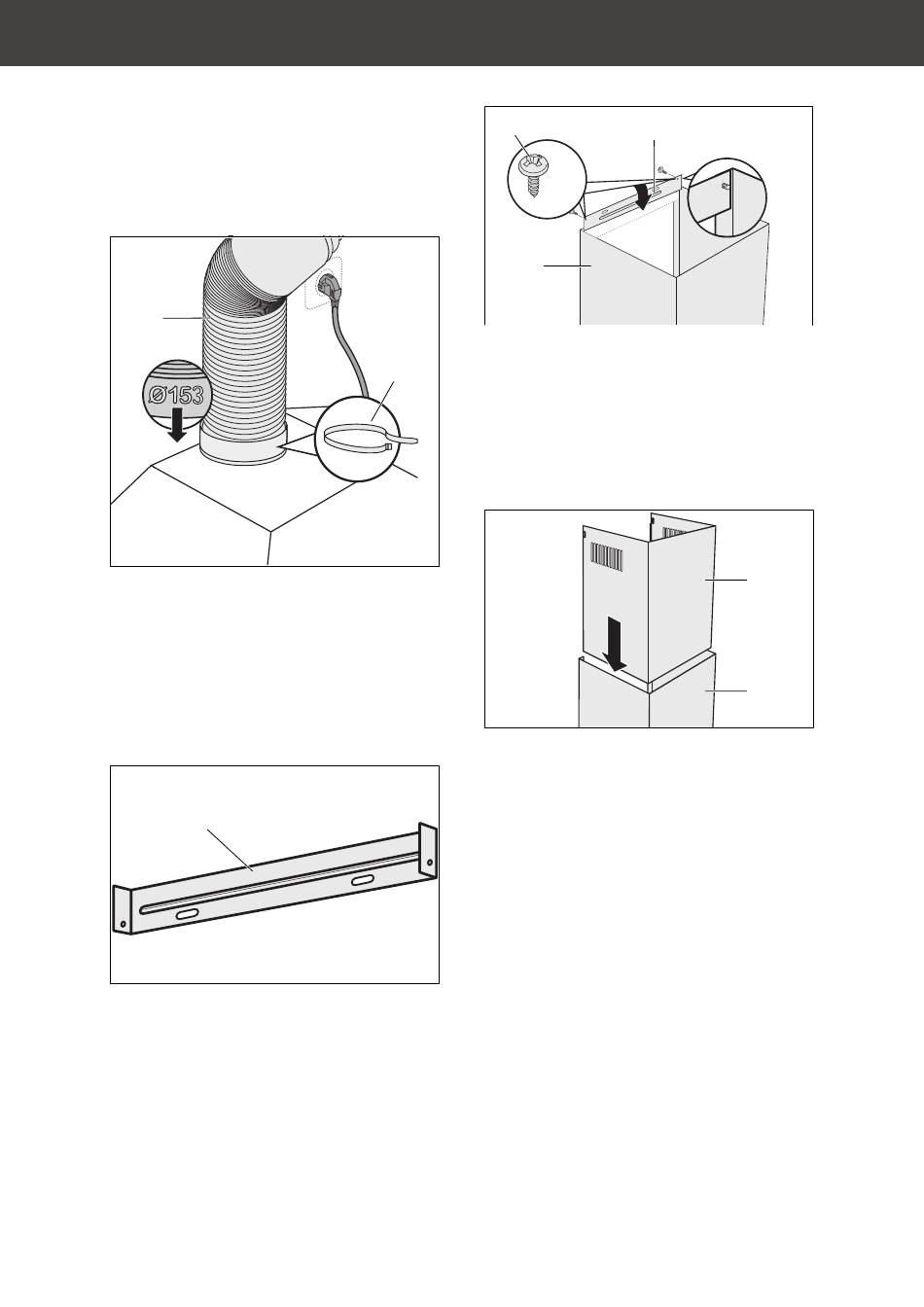

Connecting the exhaust air
hose
The exhaust air hose (4) must be installed
if you intend to use the exhaust hood (1)
with exhaust air operation.
(4)
1. Insert the end of the exhaust air hose
(4) with the larger diameter (153 mm)
into the appliance-side connection
flange.
2. Secure the lower end of the exhaust
hose with the cable tie (10).
Installing the flue screen
(6)
1. Screw the wall mount for the upper flue
screen (6) into the prepared wall plugs
using 2 round-head screws (11).
(9)
2x
(3)
2. Place the retaining plate (7) onto the
lower flue screen (3) so that it lines up
(10)
with the chamfers on the inside (screw
and slit holes point upwards).
3. Turn two plate screws (9) from the out-
side through the retaining plate (7) and
the lower flue screen (3). Tighten the
screws somewhat, but only loosely.
4. Push the upper part (2) of the flue
screen into the lower part (3) of the flue
screen.
5. Place the two parts of the flue screen
on the exhaust hood. Use the recesses.
Page EN-15
