Failure to install mounting screws or
n
fasteners contrary to this instruction
may cause electrical hazards.
If a glass cover is broken, the exhaust
n
hood must not be used until the glass
cover has been replaced. If this oc-
curs, contact our Service department.
CAUTION
Fire hazard!
Improper handling of the appliance can
lead to fire and damage to property.
The minimum distance between the
n
cooking surface of the cooking pans
on the hob and the lowest part of the
exhaust bonnet must be at least 65
cm if the exhaust hood is installed
above a gas appliance. If the as-
sembly instructions for the gas hob
specify a greater distance, this dis-
tance must be observed. This distance
of 65 cm can be
ð reduced for non-flammable parts of
the exhaust hood
ð and parts operated at SELV if these
parts, if deformed, do not allow ac-
cess to active parts.
1. In order to place the appliance exactly
over the centre of the cooker, first use a
pencil to draw a vertical guiding line on
the wall.
Ideally, use a level or a plumb bob from
the ceiling of the room to the middle of
the cooker.
2. Draw the five drill holes on the wall, fol-
lowing the upper diagram. Pay attention
to the hole distance and horizontal ori-
entation of the wall brackets.
3. Drill holes at the marked points, using a
diameter that can accommodate the
dowels.
4. Place the dowels into the holes.

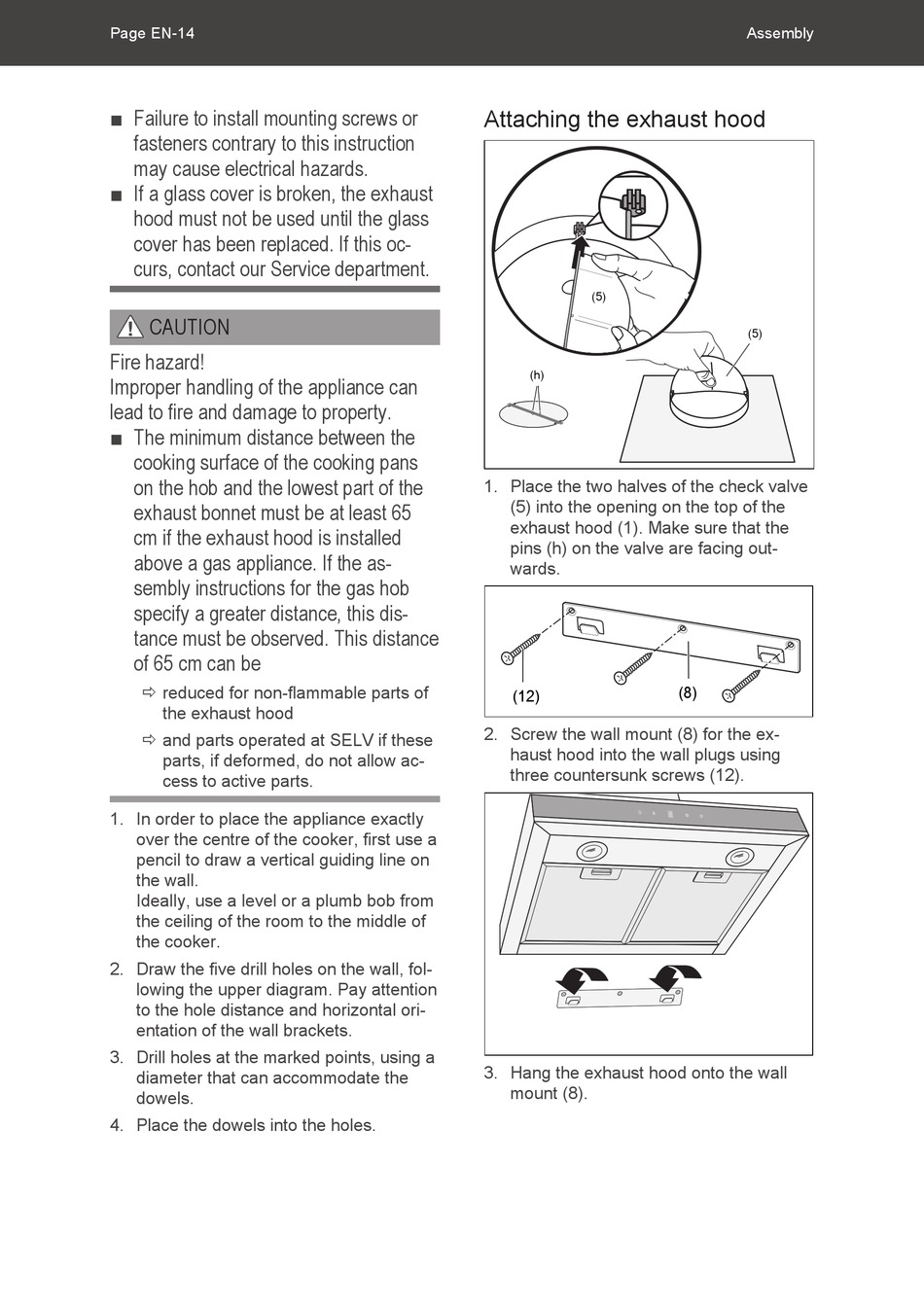

Attaching the exhaust hood
(5)
(h)
1. Place the two halves of the check valve
(5) into the opening on the top of the
exhaust hood (1). Make sure that the
pins (h) on the valve are facing out-
wards.
(12)
2. Screw the wall mount (8) for the ex-
haust hood into the wall plugs using
three countersunk screws (12).
3. Hang the exhaust hood onto the wall
mount (8).
Assembly
(5)
(8)
