Page EN-12
Materials required for assembly

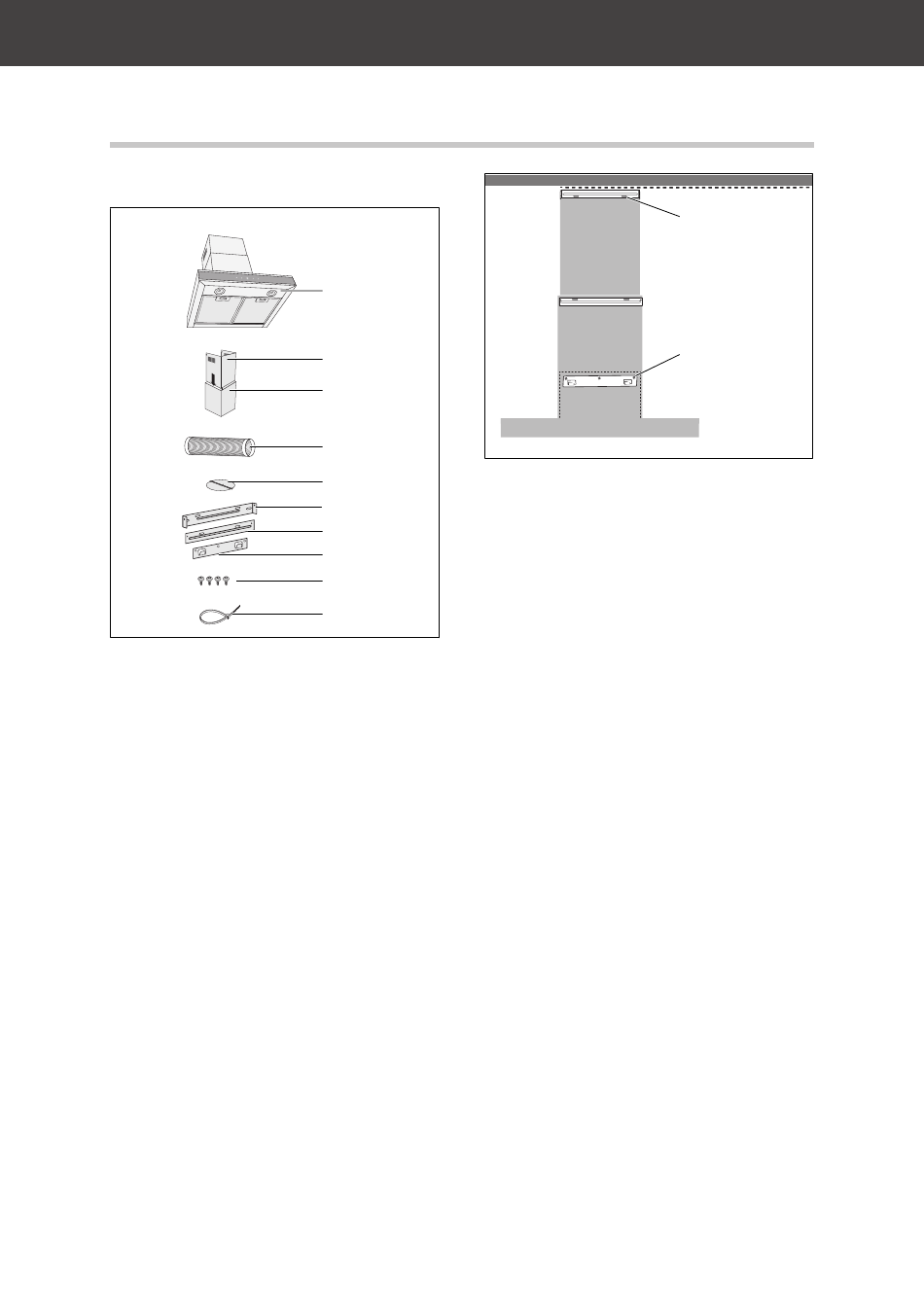

Parts list
(1) Exhaust hood
(2) Upper section of the flue screen
(3) Lower section of the flue screen
(4) Exhaust air operation: Exhaust air
hose
(5) Check valve
(6) Wall mount for upper
flue screen
(7) Retaining plate for lower flue screen
(8) Wall mount for
exhaust hood
(9) 4 plate screws 4.0 × 8 mm
(10) Cable ties
Screws
The screws and dowels required to mount
the appliance on a wall are not included in
the package contents, as their type and di-
mensions will vary depending on the char-
acteristics of the wall.
Have a specialist advise you as to which
ones you need.
(1)
(2)
(3)
(4)
In total, you will need
(5)
– 2 round-head screws (11) to attach the
(6)
(7)
(8)
– 3 countersunk screws (12) to attach the
(9)
(10)
– 5 suitable dowels
Tools and aids
You will need:
– Screwdriver
– Drill with a stone bit that is suitable for
– Measuring tape / ruler
– Level
– Pencil
– Stable stepladder
– A second person to help
– Work gloves
Materials required for assembly
wall mount (6) for the upper flue screen
(2)
wall mount (8) for the exhaust hood (1),
ø 6 mm maximum
the screws (11) and (12)
(11)
(12)
