Page EN-16

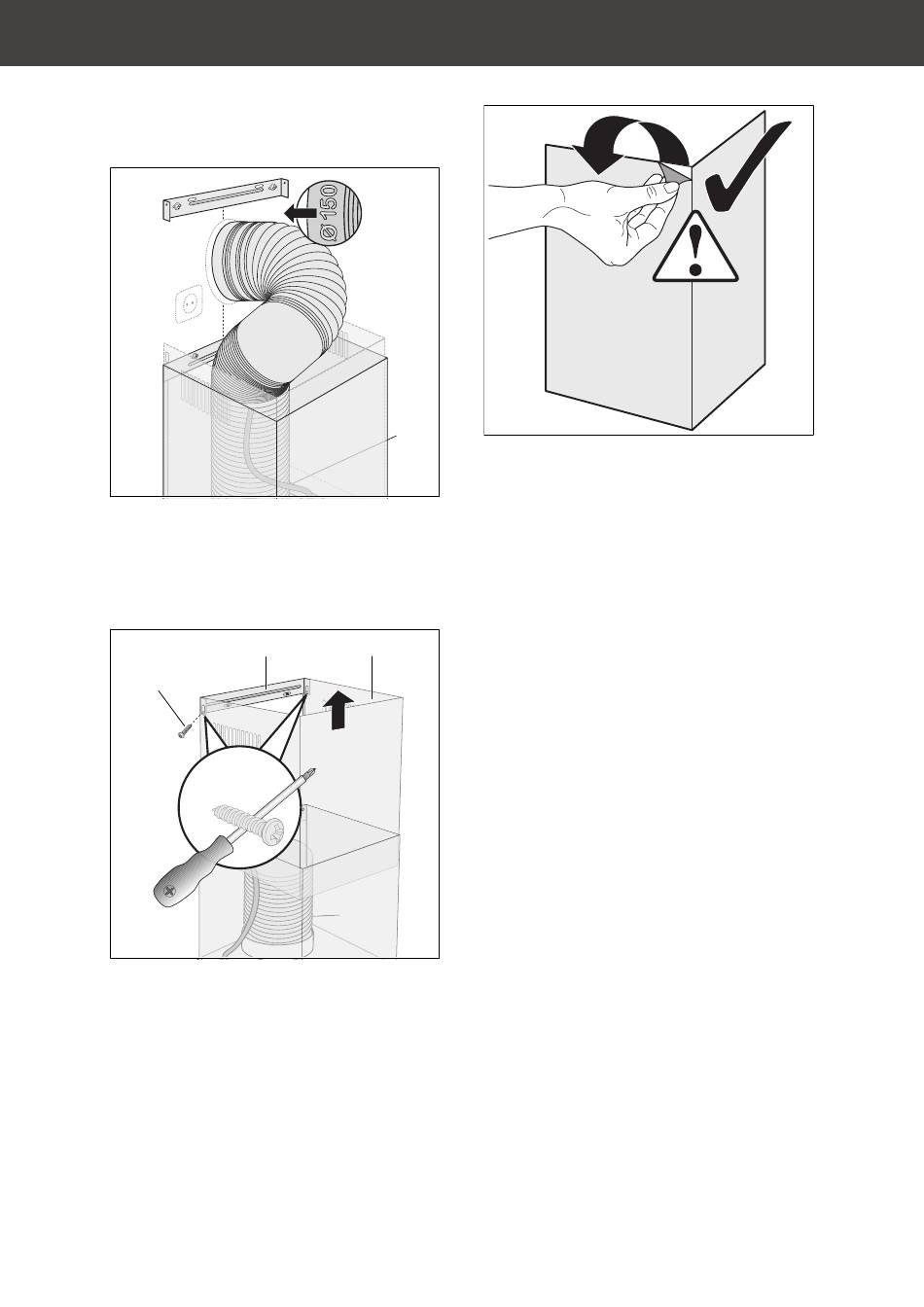

Installing the exhaust air hose
(only for exhaust air operation)
– Insert the exhaust air hose (4) into the
connection at the wall break (hose end
with 150 mm diameter).
Final steps
(6)
(9)
2x
1. Guide the mains cord through the flue
screen and insert the mains plug into a
properly installed socket.
2. Pull the upper part of the flue screen (2)
all the way up to the wall mount for the
upper flue screen (6).
3. Screw the flue screen on tightly using
two plate screws (9).
4. Remove the blue protective films.
Installation is now complete.
(2)
Assembly
